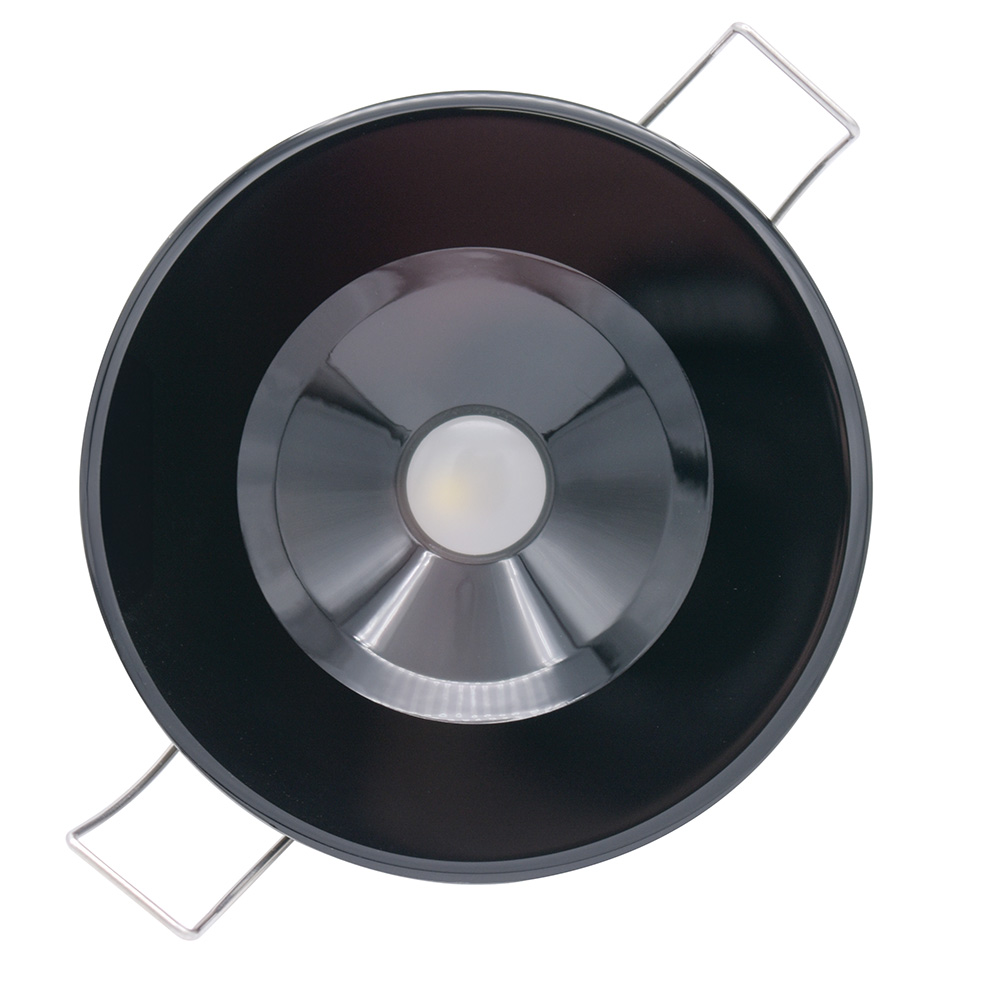

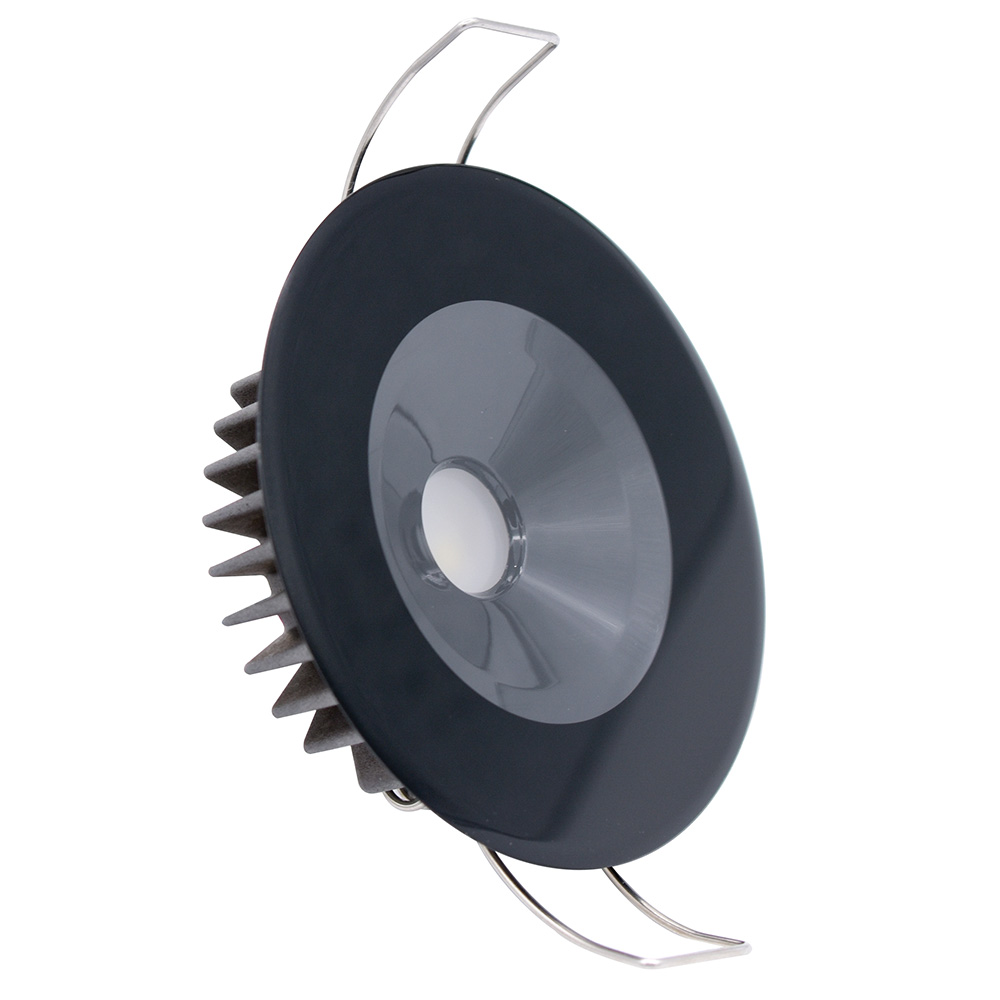

The Lumitec 117159 Illusion Flush Mount LED Down Light delivers warm white illumination with a sleek, bezel-free design engineered for marine interiors, hardtops, and cabin ceilings. Featuring a chemically hardened glass face and ultra-thin wafer profile, the Illusion offers a shallower mounting depth than traditional downlights while maintaining a clean, seamless appearance with no exposed fasteners.
Equipped with PLI (Power Line Instruction) technology, this light is fully compatible with the Lumitec Poco Digital Lighting Control system. When paired with a Poco module, users gain access to precise dimming, color selection, and light scene creation — controllable via a compatible MFD or the Lumitec Poco app on a connected smart device. Simple 2-wire hookup and the proven butterfly clip mounting system make installation fast and straightforward.
A proprietary finishing process enables unique surface treatments on the light face, including metallic colors, wood grain, and custom finishes — providing design flexibility to complement contemporary boat interiors. The black reflector housing of this model offers a bold, modern aesthetic.
Key Features:
- Ultra-thin profile with chemically hardened glass face for a flush, seamless look
- Bezel-free design with no exposed fasteners for a clean installation
- Butterfly clip mounting system for fast, tool-friendly installation
- PLI-enabled — compatible with Lumitec Poco Digital Lighting Control system
- Dimming capability via Timed Toggle Protocol (TTP) or Poco module
- 2-wire hookup for simplified wiring
- IP67 rated — dust-tight and protected against water immersion
- Warm white output with 80+ CRI for natural, flattering light
- Wide voltage range: 10–30V DC
- 3-year warranty
Specifications:
- Color Output: Warm White
- Lumens: 285
- Color Rendering Index (CRI): 80+
- Correlated Color Temperature (CCT): 5000K
- Power Consumption: 6W
- Current Draw @ 12V DC: 430mA
- Current Draw @ 24V DC: 230mA
- Voltage: 10–30V DC
- Diameter: 2.5 in (6.35 cm)
- Depth: 0.7 in (1.77 cm)
- Finish / Housing: Black
- IP Rating: IP67
- Operating Temperature: -31°F to +131°F (-35°C to +55°C)
- PLI Enabled: Yes
- Timed Toggle Protocol (TTP): Yes
- Third-Party Dimmer Compatible: No
- CE Certified: Yes
- UL Certified: No
The Lumitec Illusion Down Light is an ideal upgrade for boaters seeking modern, controllable interior lighting with a refined, low-profile appearance and the flexibility of smart lighting integration.
