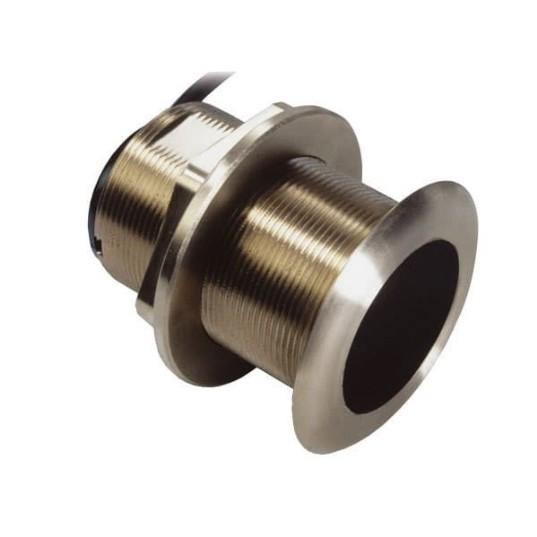

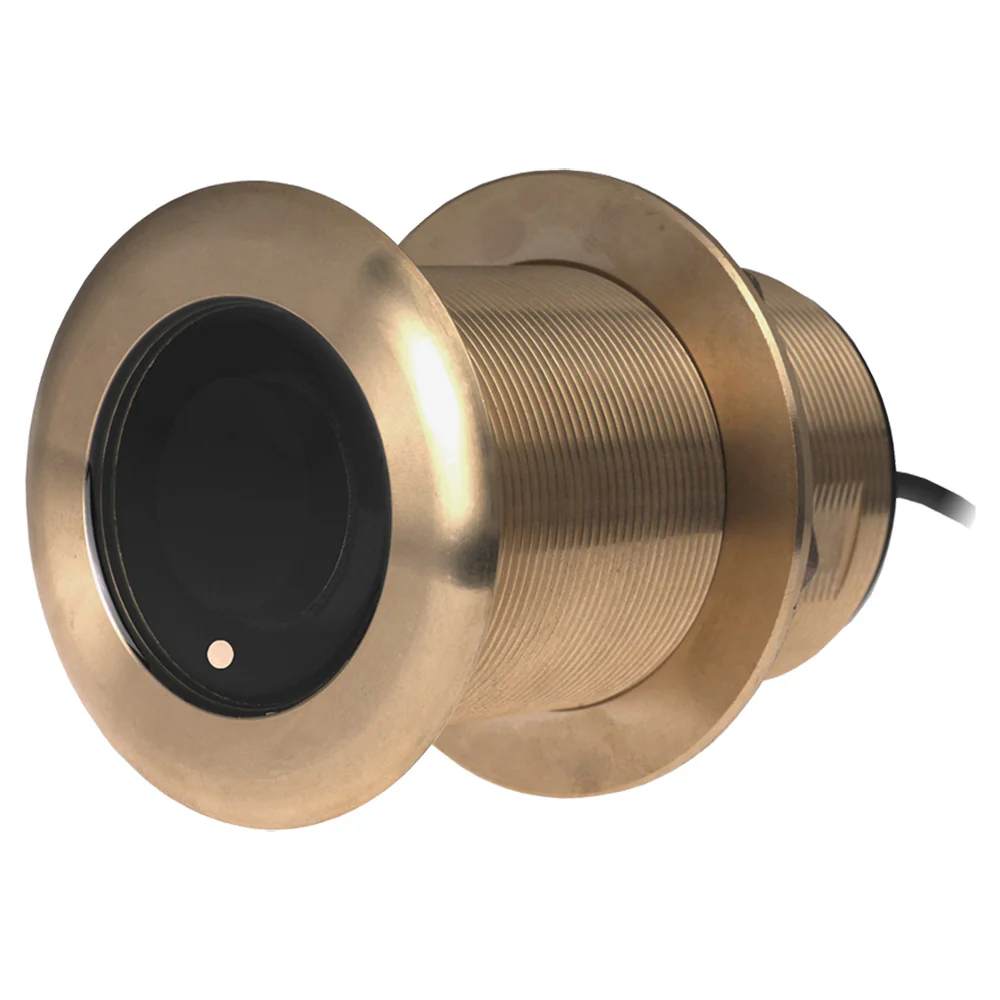

Airmar B60-12-MM Bronze Thru-Hull Transducer 12° Tilt Depth/Temperature

The Airmar B60-12-MM is a 600W, 50/200 kHz dual-frequency transducer featuring Airmar's innovative Tilted Element™ technology. This Mix and Match model includes a short 2-meter cable with an Airmar 5-pin female connector, requiring a separate brand-specific adapter cable for installation.

Key Features:

• Ceramic element fixed at a 12° angle within the bronze housing
• Designed for hull deadrise angles of 8° to 15°
• Nearly-flush low-profile installation with only 5mm (3/16") extending outside the hull

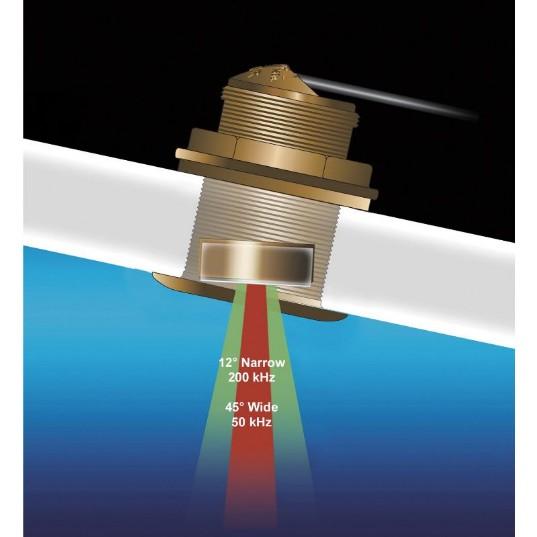

• Tilted element corrects for hull deadrise angle, orienting the beam directly down for maximum echo returns and accurate depth readings
• Provides a vertical beam without requiring a fairing block
• Power: 600W | Frequency: 50/200 kHz | Maximum depth: 800-1,200 feet
• Beamwidth: 45° at 50 kHz / 12° at 200 kHz
• Depth and temperature sensing capability
• Urethane acoustic window for durability

Ideal for fiberglass and wood hulls. Not suitable for metal hulls. The Mix and Match design offers flexibility to change fishfinder brands by simply replacing the adapter cable, protecting your investment in the bronze thru-hull transducer.
