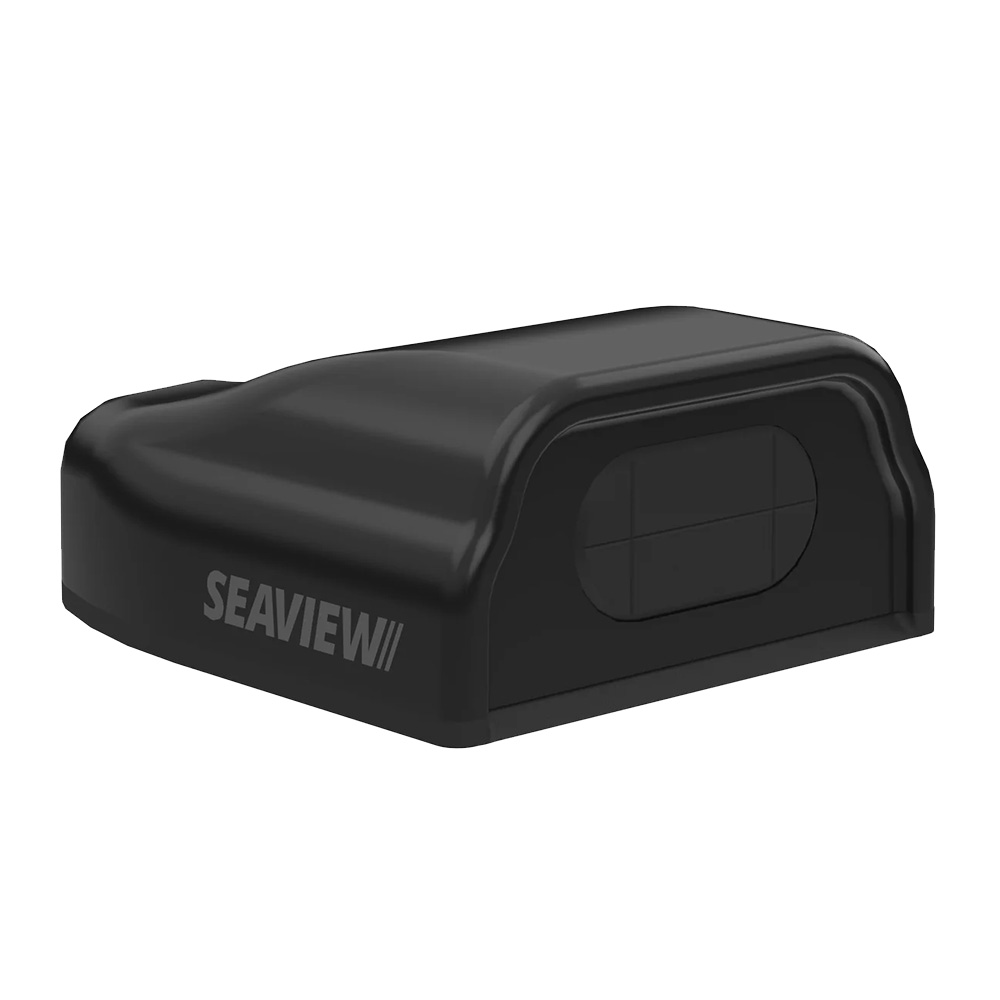

Seaview CGM90 Horizontal Cable Seal Black Plastic 90-Degree Waterproof Multi-Wire

The Seaview CGM90 is a streamlined, waterproof horizontal cable seal with a 90-degree orientation designed for marine electronics and electrical installations. This cable seal accommodates cable diameters up to 0.25 inches (6.35mm), with maximum connector sizes approximately 0.3125 to 0.375 inches (7.94mm-9.53mm) depending on connector length and type.

Key Features:

• Strong, impact-resistant black plastic housing with captive nut in the base for easy assembly
• Tapered rubber bung forms a watertight seal and is supplied with drill tubes for custom diameter sealing
• Includes thick rubber base gasket for complete water-tight installation
• IPX6 and IPX8 tested and approved for superior waterproof protection
• Works with multiple cables as long as each cable has its own hole with at least 0.125 inches of rubber around each hole
• Cable connectors do not need to be removed during installation
• Stainless steel fasteners included

The low-profile design provides a strong, impact-resistant and clean installation with no sharp edges. Each cable gland is supplied with a blank rubber tapered seal that has a molded location to drill and cut, making it ideal for retrofit applications on boats, RVs, and other marine equipment where waterproof cable pass-throughs are essential.
