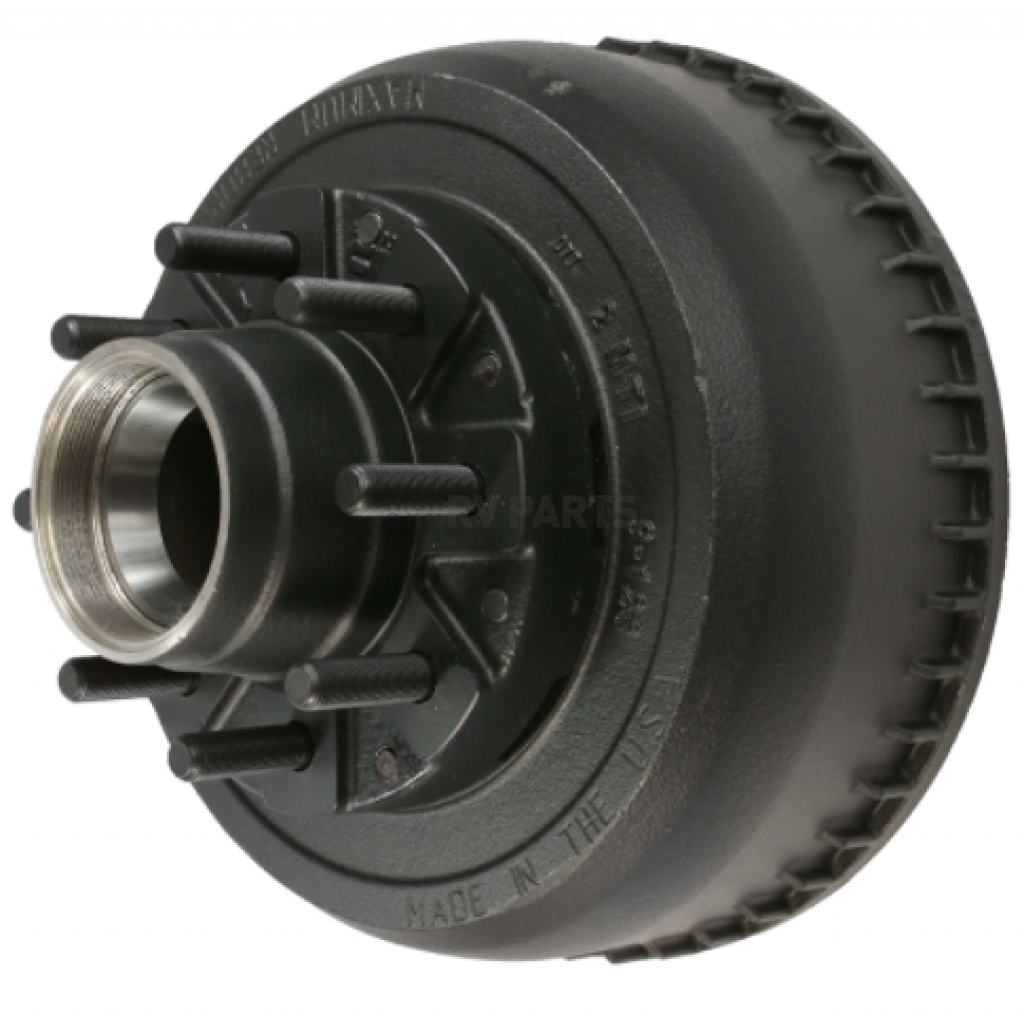

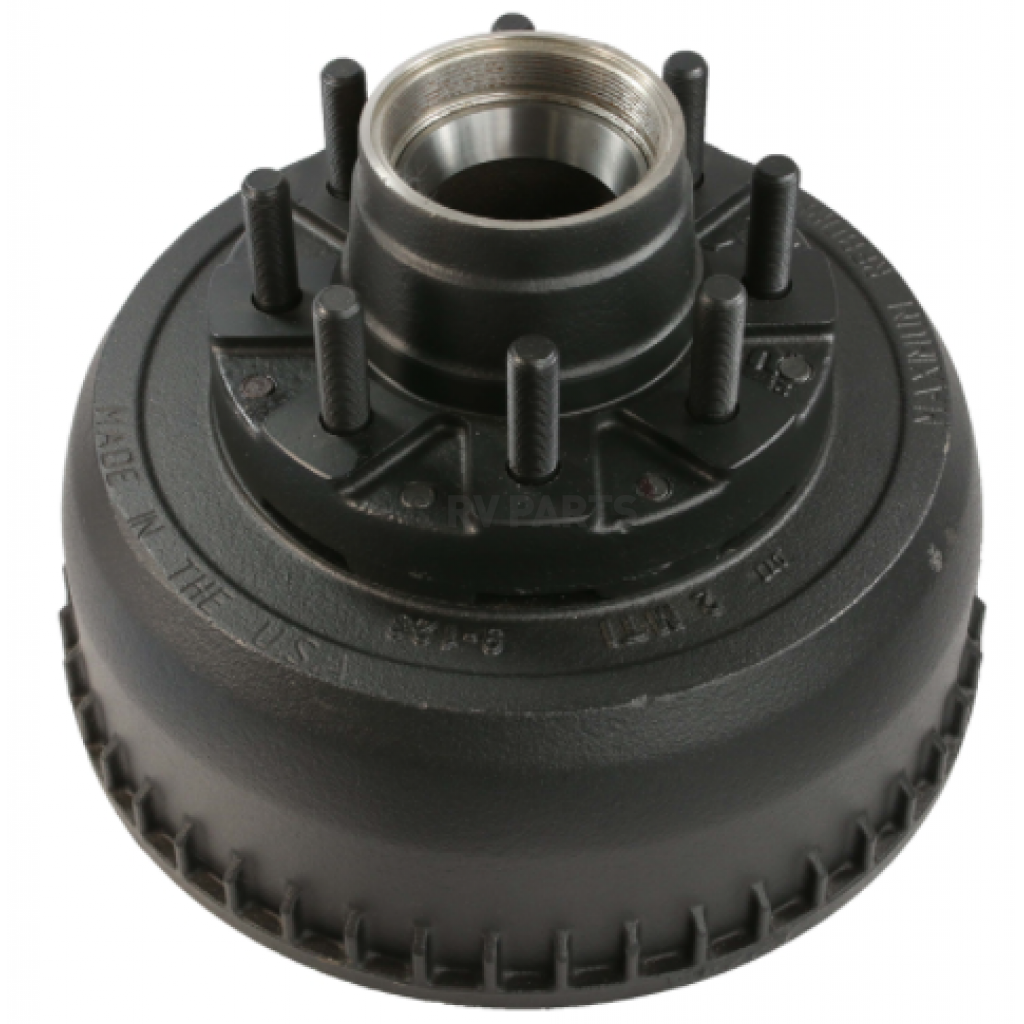

Dexter Marine Products 008-430-90 Complete Hub and Drum Kit for 9K-10K Axles

The Dexter Marine Products 008-430-90 is a complete hub and drum assembly designed for 9,000 to 10,000 pound general duty trailer axles. This oil bath kit provides reliable braking performance for heavy-duty marine, RV, and utility trailer applications.

Key Features:

• Fits Dexter 9,000-10,000 lb general duty axles
• 8 on 6.5 inch bolt pattern for wide compatibility

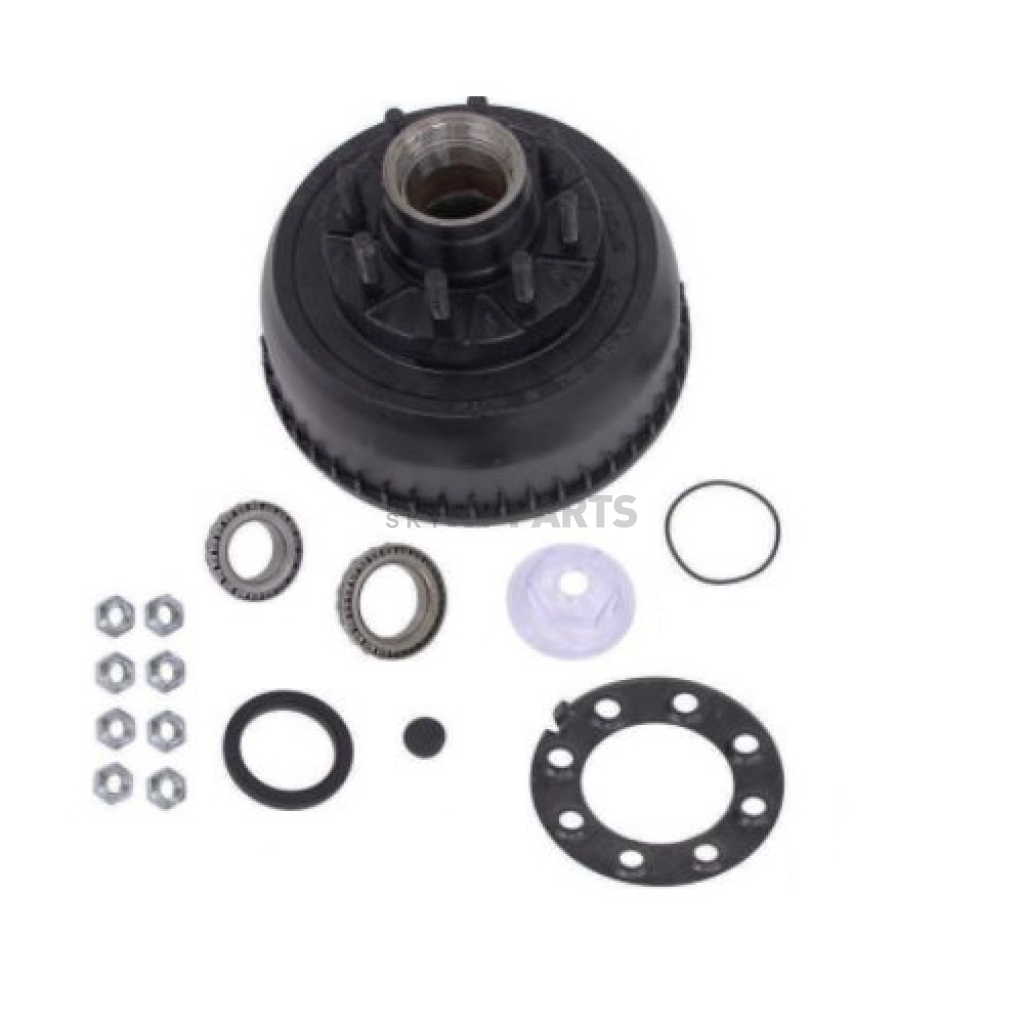

• Complete kit includes hub, drum, bearings, races, oil seal, and oil cap
• 12-1/4 inch x 3-3/8 inch drum dimensions
• Includes clamp ring and cone nuts for dual wheel applications
• Oil bath lubrication system for extended service life
• 5,000 lb capacity per hub
• Uses standard 387A inner bearing and 25580 outer bearing

This complete assembly simplifies installation and maintenance, providing all necessary components in one kit. Dexter Axle is an ISO 9001:2015 certified manufacturer known for superior quality and rigorous testing standards. The oil bath design ensures proper lubrication and reduces maintenance requirements compared to grease systems.
