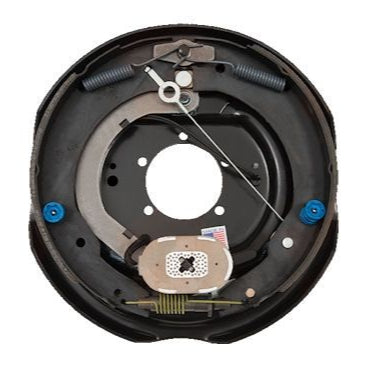

The Dexter K23-458-00 is a complete 12" x 2" left-hand electric trailer brake assembly featuring the innovative Nev-R-Adjust forward self-adjusting technology. Designed for 6,000 lb capacity trailer axles, this brake assembly automatically adjusts to proper clearances during forward travel, delivering optimum performance and braking power with minimal maintenance.
Key Features:
- 12" diameter x 2" width brake assembly for left-hand (driver's side) installation
- Nev-R-Adjust forward self-adjusting design eliminates manual adjustment
- Rated for 6,000 lbs maximum capacity per pair (3,000 lbs per brake)
- Complete assembly with brake shoes, springs, and electromagnet pre-installed on backing plate
- Mounts to 5-hole axle brake flange pattern
- Fits wheels 14-1/2" to 16-1/2" in diameter
- White wire magnet design
- Compatible with Dexter part numbers 023-458-00 and 23-458
This electric brake assembly uses an electromagnet for actuation, requiring only an electric brake controller (sold separately). The Nev-R-Adjust system automatically adjusts during forward travel, ensuring consistent braking performance. Commonly used on utility trailers, boat trailers, snowmobile trailers, car hauler trailers, camper trailers, cattle trailers, and horse trailers. Also compatible with AL-KO, Besser Pro, Quality, Lippert, and Rockwell axles with matching specifications.
Installation Note: New Nev-R-Adjust brakes should be burnished by applying the brakes 20 to 30 times from 40 mph to 20 mph, allowing cooling between applications.
