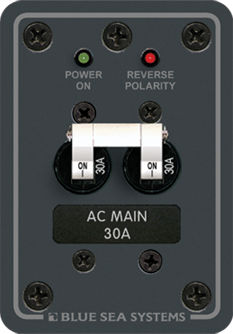

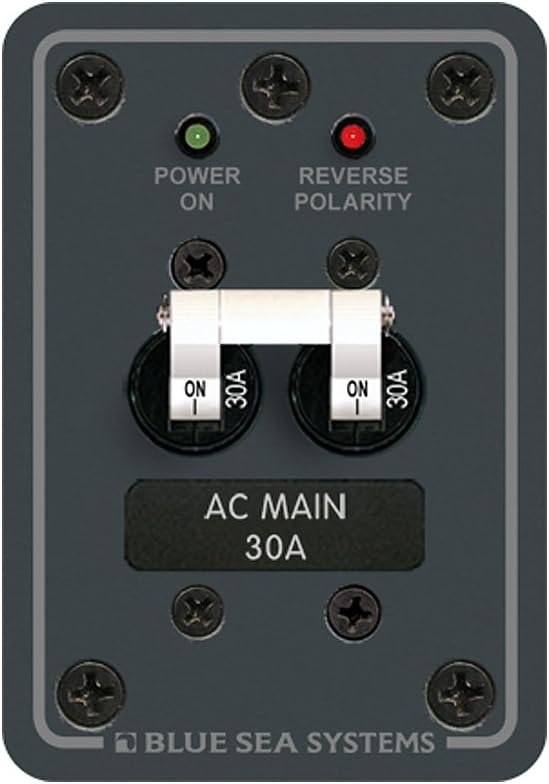

Blue Sea Systems 8077-BSS AC Main 30A Circuit Breaker Panel 120V

The Blue Sea Systems 8077-BSS AC Main Circuit Breaker Panel provides essential protection for marine electrical systems from AC power sources. This compact 30-amp main breaker panel is designed for installation at the shore power entry point, offering reliable switching and circuit protection in a single device.

Key Features:

• Interior 30A double-pole main circuit breaker with white toggle actuator
• Green LED indicator for main power ON status
• Red LED indicator for reverse polarity warning
• All hot, neutral, and safety ground buses pre-installed and fully pre-wired
• Tin-plated copper bus bars for high conductivity and corrosion resistance
• Trip-free design cannot be held ON during fault current conditions
• Safety ground screw on panel back
• Backlit label positions for easy identification
• Includes AC panel basic label set

Construction:

• Heavy 1/8-inch aluminum 5052 alloy panel material
• Mil-C-5541C immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Compact dimensions: 2.63 inches wide x 3.75 inches high

Rated for 120V AC nominal voltage (maximum 277V AC / 65V DC), this ready-to-install panel comes with detailed installation instructions and a cutout template. The panel main bus is rated at 50 amps, providing ample capacity for the 30A main breaker. Backed by Blue Sea Systems' lifetime replacement warranty.
