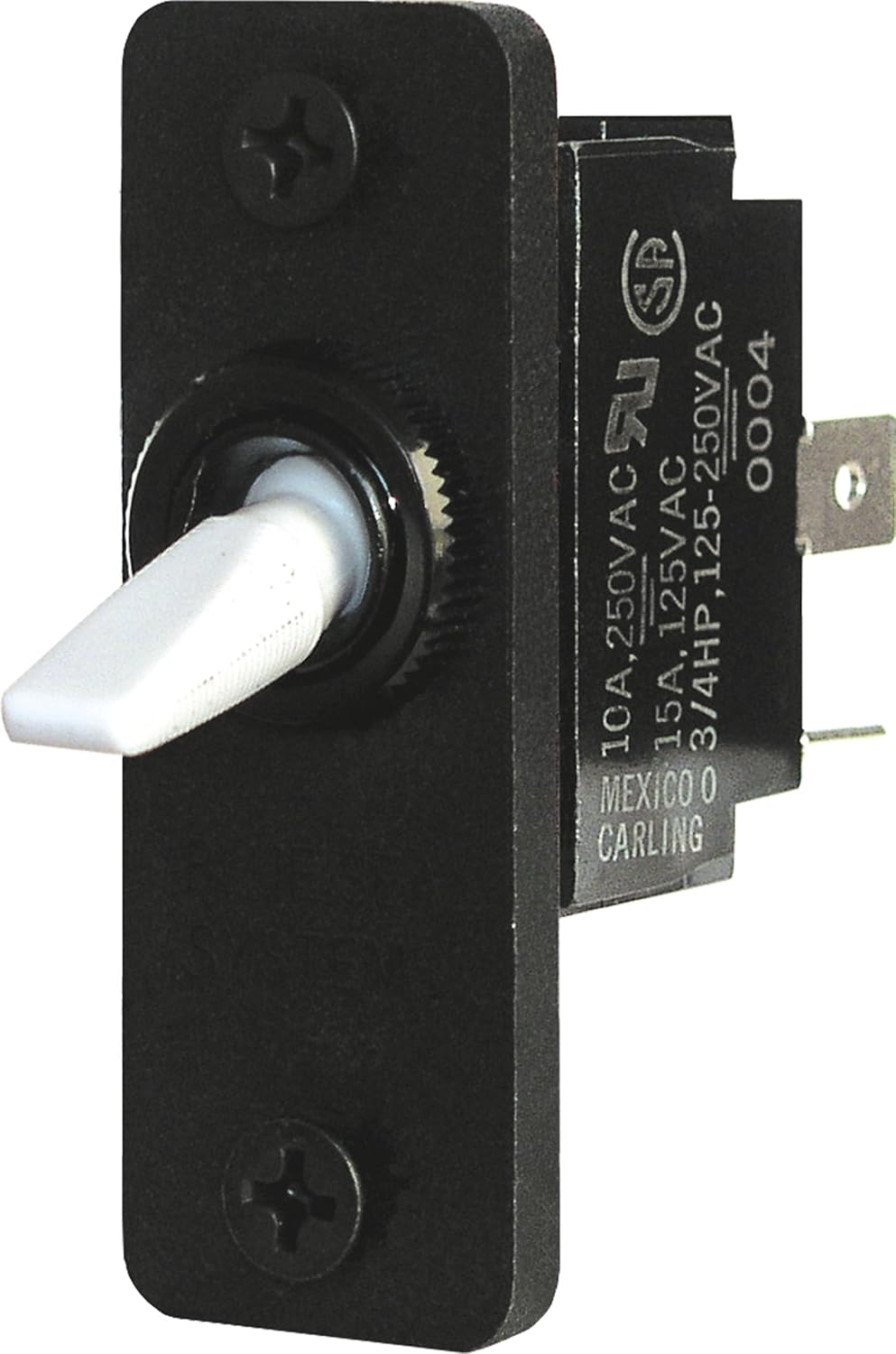

Blue Sea Systems 8204-BSS SPST Toggle Panel Switch OFF-ON

The Blue Sea Systems 8204 Toggle Panel Switch is designed for applications that require switching action separate from circuit protection, making it ideal for marine electrical systems where circuit protection is provided elsewhere.

Key Features:

• Mounts in A-Series toggle circuit breaker apertures with included mounting adapter for standard 5/8" circuit breaker mounting holes
• Nickel-plated brass and phenolic non-corrosive construction for durability in harsh marine environments
• White actuator with SPST (Single Pole/Single Throw) configuration
• Rated 15 Amps @ 32 Volt DC, 15 Amps @ 125 Volt AC, or 10 Amps @ 250 Volt AC
• Two 1/4" quick connect tab terminals for easy installation

Common Applications:

• Generator starters, bilge pumps, horns, wipers, and engine controls
• Any marine application requiring OFF-ON switching functionality

This panel mount switch provides multiple throw and switch configurations when circuit protection is handled by separate breakers or fuses, offering flexibility in custom marine electrical panel design.
