Dometic 3316331.000 K Fan Vent 3.5in Ducted Register 6/8 CF RV HVAC

The Dometic 3316331.000 AM-Vent Power Ventilator Fan Assembly Kit is an OEM replacement and upgrade ventilation kit designed for Dometic absorption RV refrigerators in 6 and 8 cubic foot configurations. This complete kit adds or restores active airflow behind the refrigerator compartment, helping the cooling unit dissipate heat more efficiently — especially critical in warm climates or during summer travel.

The kit includes a 4-inch (3-3/4" x 3-3/4") 12V DC brushless fan (Adda model AD0912UB-A71GP), a thermal switch that automatically activates the fan when needed, a fan bracket, a fused wire assembly, and all necessary mounting hardware. The thermally controlled operation means the fan runs only when the refrigerator's condenser area requires additional cooling, extending the fan's service life and reducing power draw.

Kit Includes:

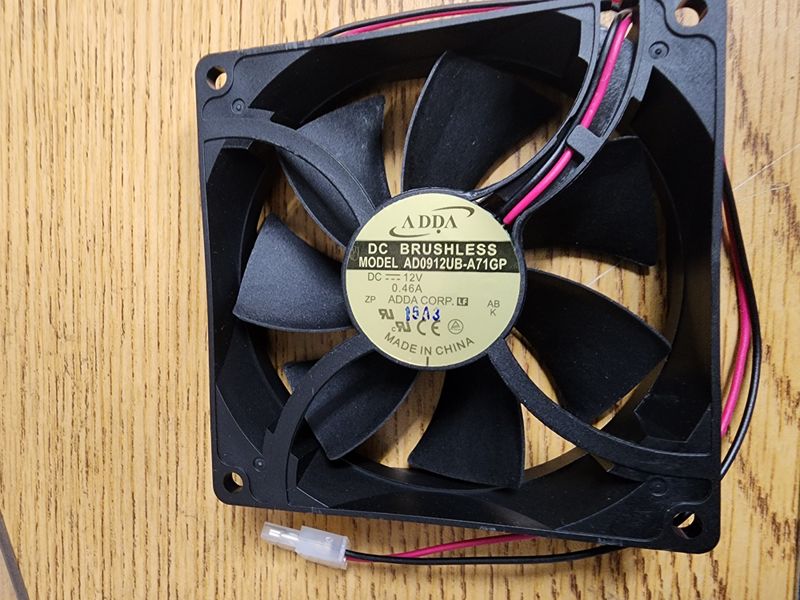

• 1x Fan, 12 VDC brushless (Part No. 385118301) — 3-3/4" x 3-3/4" x 1-1/4"
• 1x Fan Bracket (Part No. 385139001)
• 1x Thermal Switch, Fan (Part No. 385030606)
• 1x Fused Wire Assembly, 3A (Part No. 385008502)
• 1x Wire Assembly (Part No. 295459901)
• 1x Wiring Decal, Fan (Part No. 3105433.001)
• 1x Cable Tie (Part No. 385201902)
• 2x Screw, RXS 4.2 x 9.5 mm (Part No. 385800220)
• 2x Screw, EML 5 x 10 mm (Part No. 38580901)
• 2x Screw, RXS 3.5 x 9.5 mm (Part No. 385800214)
• Service/Installation Instructions

Specifications:

• Dometic Part Number: 3316331.000
• Fan Dimensions: 3-3/4" x 3-3/4" x 1-1/4"
• Voltage: 12V DC
• Motor Type: Brushless
• Fan Model: Adda AD0912UB-A71GP
• Fuse Rating: 3A
• Compatible Refrigerator Sizes: 6 cubic foot and 8 cubic foot models

This genuine Dometic replacement kit is the correct OEM solution for restoring or adding powered ventilation to applicable absorption refrigerator models. Improved airflow helps maintain consistent refrigerator performance and can extend the life of the cooling unit.
