Dexter Axle K08-219-91 Hub-Drum Kit 7K Axle 8-6.50 BC 9/16-18 Studs 2.125 Seal

The Dexter Axle K08-219-91 is a complete hub and drum assembly kit designed for 7,000 lb. trailer axles with an 8-bolt, 6.50" bolt circle pattern. Engineered for grease lubrication, this heavy-duty kit includes all necessary components for a full hub and drum replacement, making it ideal for RV, utility, and specialty trailer applications.

Key Specifications:

• Axle Rating: 7,000 lb. (7K) capacity
• Bolt Pattern: 8 x 6.50" bolt circle
• Stud Thread: 9/16"-18 UNF
• Drum Dimensions: 12" diameter x 2" width
• Grease Seal I.D.: 2.125"
• Grease Cap O.D.: 2.72" (standard grease cap)
• Lube Type: Grease
• Brake Compatibility: Electric or hydraulic brake systems

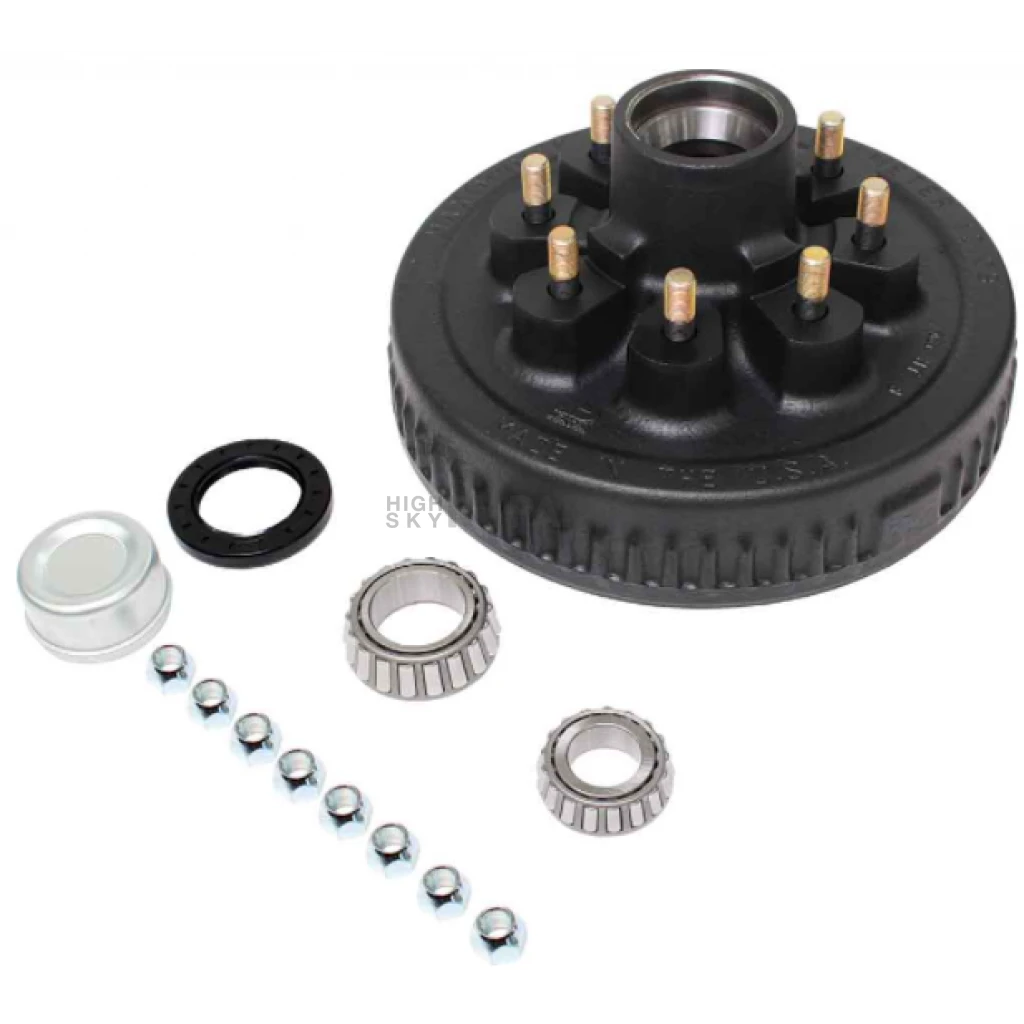

Kit Includes:

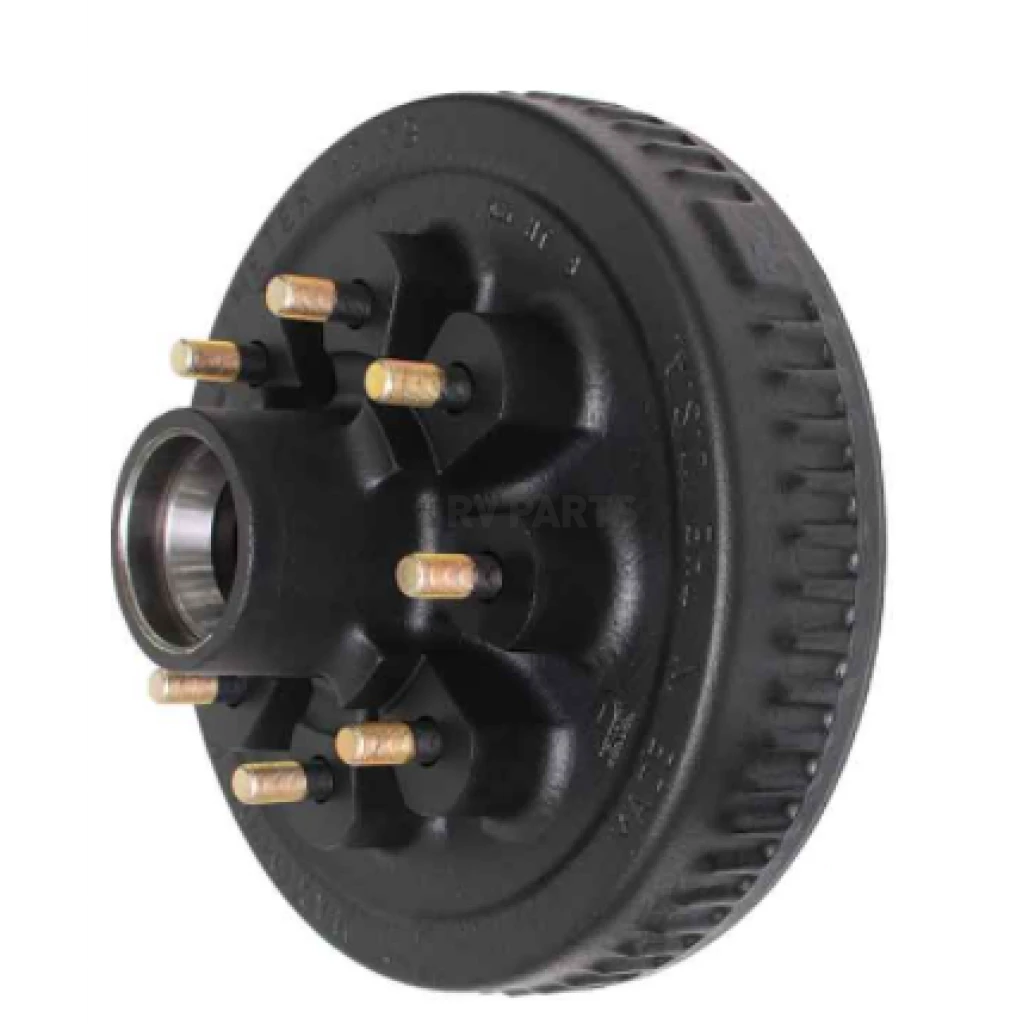

• (1) Hub & Drum — Cupped and Studded 9/16"-18 (P/N 008-219-13)
• (8) Cone Nuts, 60-degree (P/N 006-053-00)
• (1) Grease Seal, 2.125" I.D. (P/N 010-001-00)
• (1) Standard Grease Cap (P/N 021-039-00)
• (1) Bearing Cone, Outer — 14125A (P/N 031-017-02)
• (1) Bearing Cone, Inner — 25580 (P/N 031-030-02)
• (1) Instruction Sheet (P/N 059-831-00)

Manufactured by Dexter Axle, a trusted leader in trailer components since 1960, this kit is built to OEM standards and is compatible with trailer axles rated at 3,500 lbs. per drum. It is a genuine replacement part suitable for RV, boat, cargo, and utility trailer axles using the 8-6.50 bolt circle configuration.
