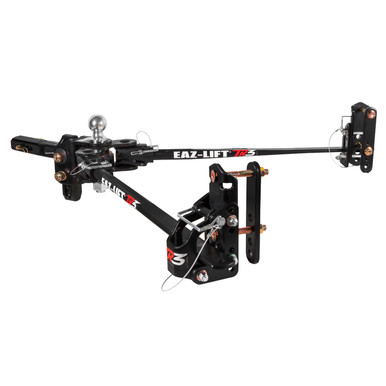

The Camco Eaz-Lift TR3 Weight Distribution Hitch Kit combines advanced weight distribution with patented adjustable sway control technology to deliver a smooth, stable, and confident towing experience for travel trailers and RVs. This complete kit features 800 lb trunnion-style spring bars with a maximum tongue weight capacity of 1,000 lbs and a maximum gross trailer weight rating (GTWR) of 10,000 lbs.
Patented Consistent Sway Control Technology:
The TR3's innovative sway control system operates independently of tongue weight, allowing you to adjust sway resistance with a simple bolt adjustment. The on/off feature lets you disengage sway control for backing up, low-speed maneuvering, or navigating slippery conditions without interference. The system automatically engages past 5 degrees for steady highway control while allowing you to reverse without disengaging.
Key Features:
- 800 lb weight distribution spring bars with 1,000 lb maximum tongue weight rating
- 10,000 lb maximum gross trailer weight rating (GTWR)
- Pre-installed 2-5/16 inch hitch ball rated for 15,000 lbs
- Trunnion-style design with side-loading spring bars for quick installation
- Eliminates chains and uses brake pad material on center spindle for quiet operation
- Compatible with both top-mount and bottom-mount coupler-style trailers
- Accommodates A-frame trailer configurations and works around obstructions like propane tanks and battery mounts
- Precision reamed bearings allow smooth rotation for stable towing
- Durable clamping design compensates for wear to maintain proper sway resistance
- Roll-tapered spring bars absorb energy for improved ride quality
What's Included:
Complete weight distribution hitch kit with trunnion head, 800 lb spring bars, adjustable ball mount, pre-installed 2-5/16 inch hitch ball, hookup brackets, hardware, and tethered retention pins. This travel trailer must-have allows small spring bar pre-load adjustments without resetting the ball mount angle, making setup faster and easier.
The Eaz-Lift TR3 provides superior load leveling performance while eliminating the noise, chains, and metal-on-metal wear associated with traditional weight distribution hitches. Ideal for medium-duty towing applications with travel trailers up to 10,000 lbs GTWR.
