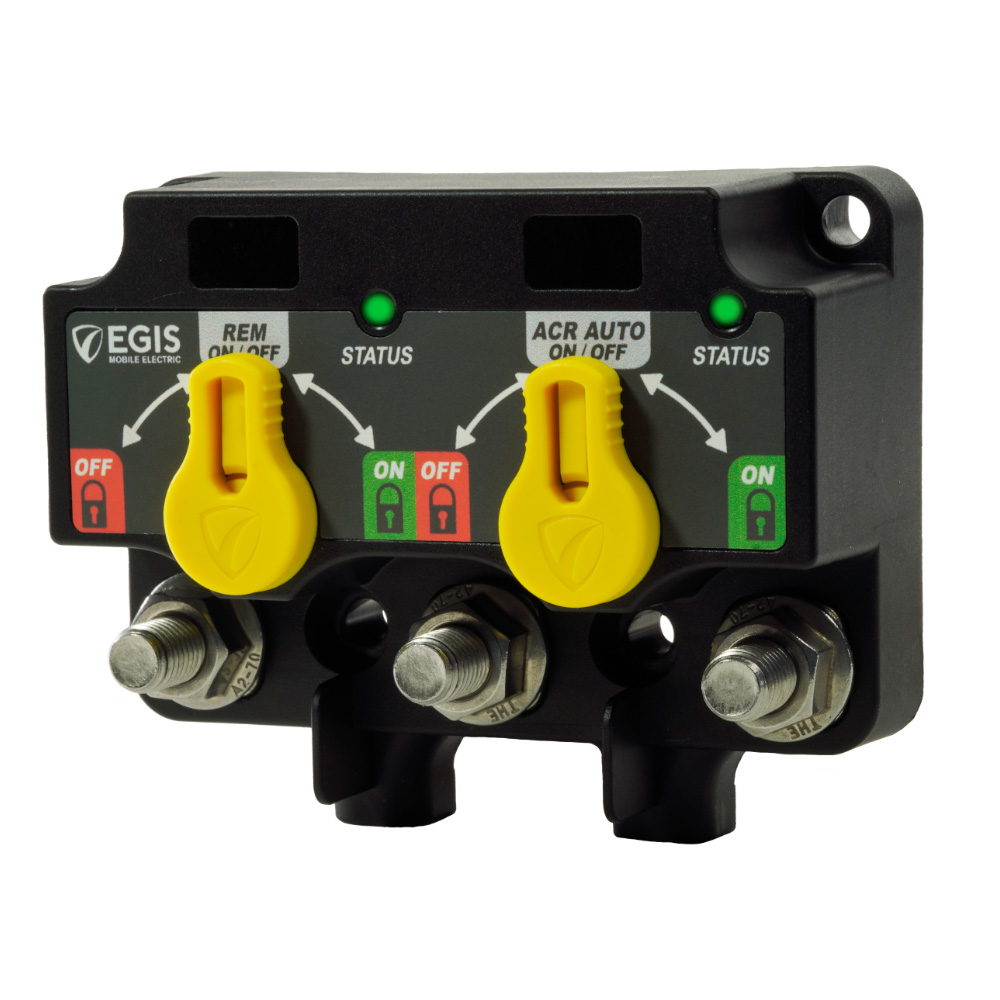

Egis Mobile Electric 8820-1530 Dual XD Flex 2 Relay ACR with Manual Control Knobs

The Egis Mobile Electric Dual XD Flex 2 is a compact, high-performance dual relay and automatic charging relay (ACR) module designed for multi-battery power management in marine, RV, and off-road applications. This advanced bi-stable solenoid system replaces multiple individual high-amp relays with one integrated module, providing 35-75% reduction in mounting space and weight compared to traditional relay configurations.

Key Features:

• Dual Relay Configuration: Flex 2 design allows each relay position to function as a standard 500A relay, automatic charging relay (ACR), or low voltage disconnect
• Intuitive Manual Control: Front-facing yellow knobs provide manual override capability with visual indication of locked on/off state—a feature not available on competitive solutions
• Bulletproof Construction: Sealed to IP67/IP6K9K standards with high-temperature electronics and materials for mounting in any location
• Premium Hardware: Stainless steel cable lug studs resist corrosion; large mounting holes accept 1/4-20 or M6 hardware
• Simple Programming: DIP switches under protective cover allow flexible configuration for OEM and custom installations
• 90-95% Lower Parasitic Draw: Advanced bi-stable solenoid design dramatically reduces off-state current consumption compared to traditional relays
• Expandable System: Compatible with optional link and cross-link busbars to support 2 or 3 battery configurations
• Plug & Play Compatible: Pin-for-pin compatible with ML Series bi-stable relays for easy upgrades

The 8820-1530 model includes tinned wire connections and manual control knobs, making it ideal for applications requiring battery isolation, charge sharing between multiple battery banks, and manual override capability. Perfect for dual battery systems in boats, work trucks, overland vehicles, and recreational vehicles where reliable power management is critical.
