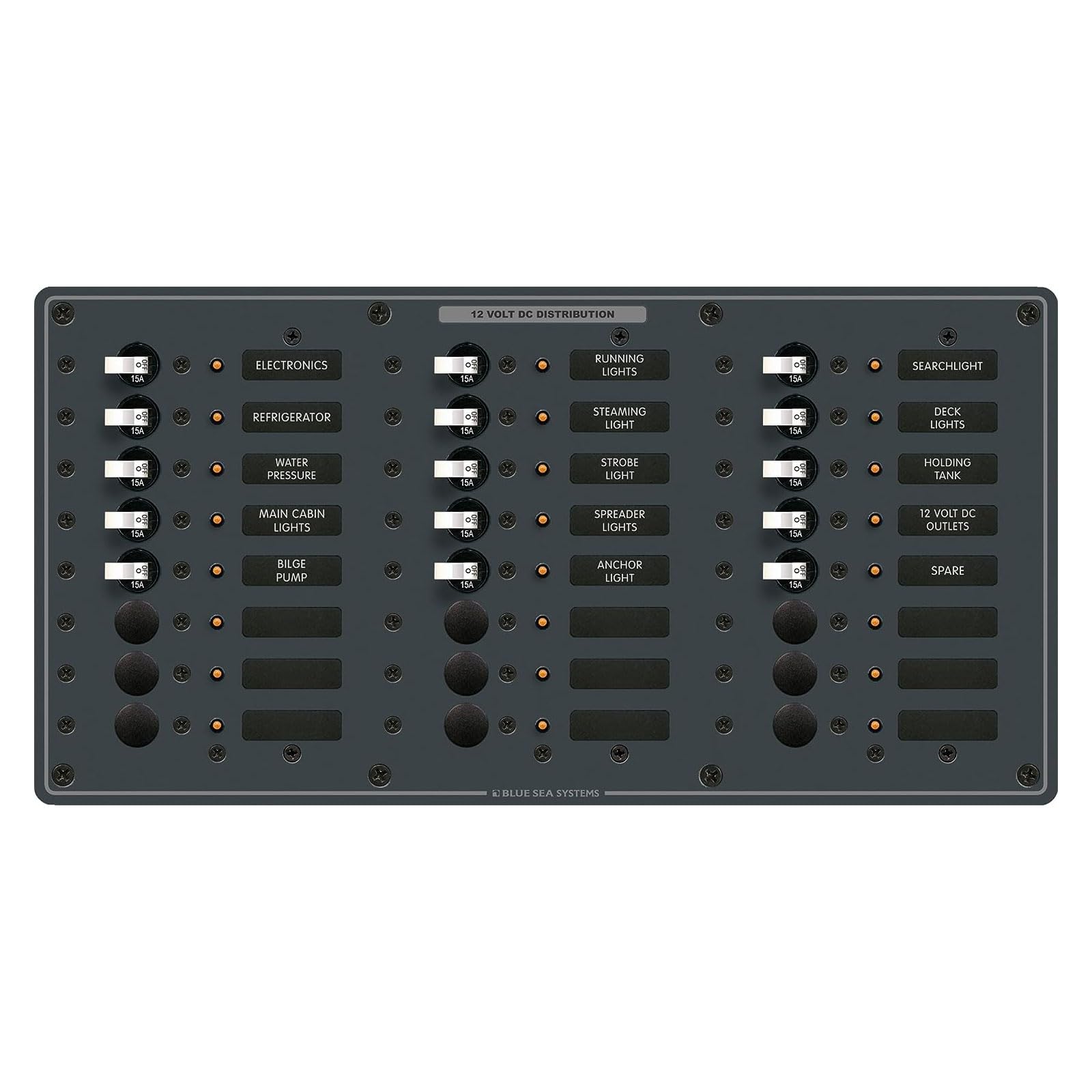

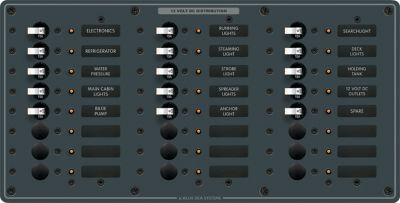

Blue Sea Systems 8264-BSS Traditional Metal DC Circuit Breaker Panel - 24 Position 12/24V 100A

The Blue Sea Systems 8264-BSS is a professional-grade DC branch circuit breaker panel designed to distribute current from a high amperage input into 24 lower amperage circuits. This traditional metal panel is ideal for marine, RV, and renewable energy applications where reliable power distribution is critical.

Key Features:

• 24 DC circuit breaker positions with 15 white toggle circuit breakers (15A single pole) pre-installed and 9 empty positions for customization
• 100 amp maximum capacity per bus bar ensures robust power handling
• Configurable for 12V DC or 24V DC electrical systems
• All positive, negative, and grounding buses installed and fully pre-wired for easy installation
• ON-indicating LEDs installed in all circuit positions for visual status monitoring
• Pre-installed LED backlighting illuminates all circuit label positions
• Tin-plated copper bus bars provide excellent conductivity and corrosion resistance
• Includes 30 common DC circuit labels for professional labeling
• Traditional black metal panel construction offers durability in harsh environments

The panel arrives ready for installation with detailed instructions and cutout template included. The traditional metal design provides a classic, professional appearance while delivering the reliability Blue Sea Systems is known for in marine and mobile power systems.
