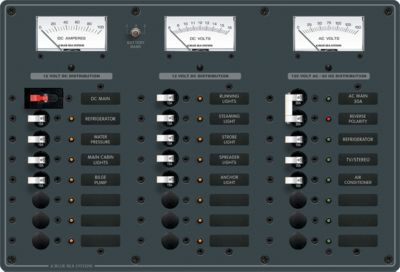

Blue Sea Systems 8084-BSS AC Main + 6 Positions / DC Main + 15 Positions Combination Circuit Breaker Panel

The Blue Sea Systems 8084-BSS is a fully integrated combination AC/DC circuit breaker panel designed to consolidate AC and DC switching, circuit protection, source selection, and electrical monitoring into a single, ready-to-install unit. Built on a heavy-duty 1/8" 5052 aluminum alloy chassis with a two-part polyurethane slate gray finish and MIL-C5541C immersion undercoating, this panel is engineered for lifetime corrosion resistance in demanding marine environments.

The panel arrives fully pre-wired with all AC and DC buses installed, ON-indicating LEDs in every circuit position, and backlit label holders — making installation straightforward and clean.

Key Features:

• Combines AC and DC switching, protection, and monitoring in one panel
• All AC and DC buses installed and fully pre-wired from the factory
• ON-indicating LEDs installed in all circuit positions
• Label backlighting pre-installed for easy nighttime readability
• Tin-plated copper bus bars for high conductivity and corrosion resistance
• Heavy 1/8" aluminum 5052 alloy construction with MIL-C5541C undercoating
• Countersunk mounting holes throughout
• Includes circuit identification label sets, installation instructions, and cutout template
• Owner-upgradeable to 24V DC operation with optional No. 8240 (18–32V DC voltmeter)

AC Section:

• 6 AC branch circuit positions (Main + 6)
• One double-pole 30-amp AC main circuit breaker
• Three AC 15-amp circuit breakers installed; 3 empty positions available
• No. 9353 analog 0–150 volt AC voltmeter included
• Red reverse-polarity indicating LED
• Maximum AC panel amperage: 50 Amps at 120V AC
• Ready for installation of optional No. 4029 AC Isolation Cover (required for ABYC compliance on combined AC/DC panels)

DC Section:

• 15 DC branch circuit positions (Main + 15)
• 100-amp C-Series toggle circuit breaker provides main DC circuit protection and switching
• Nine DC 15-amp circuit breakers installed; 6 empty positions available
• No. 8003 analog 8–16 volt DC voltmeter with 3-position battery test switch for monitoring up to 3 batteries
• No. 8017 analog 0–100 amp DC ammeter with remote shunt included
• Maximum DC panel amperage: 100 Amps at 12V DC

The Blue Sea Systems 8084-BSS delivers professional-grade electrical management for cruising sailboats, powerboats, and other marine vessels requiring robust AC and DC power distribution in a single, space-saving panel.
