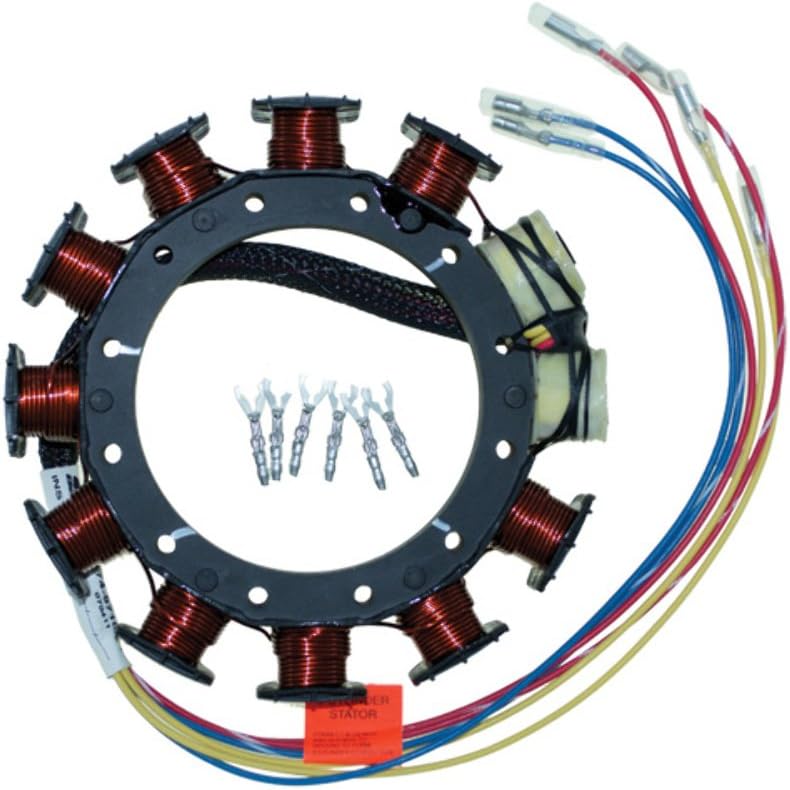

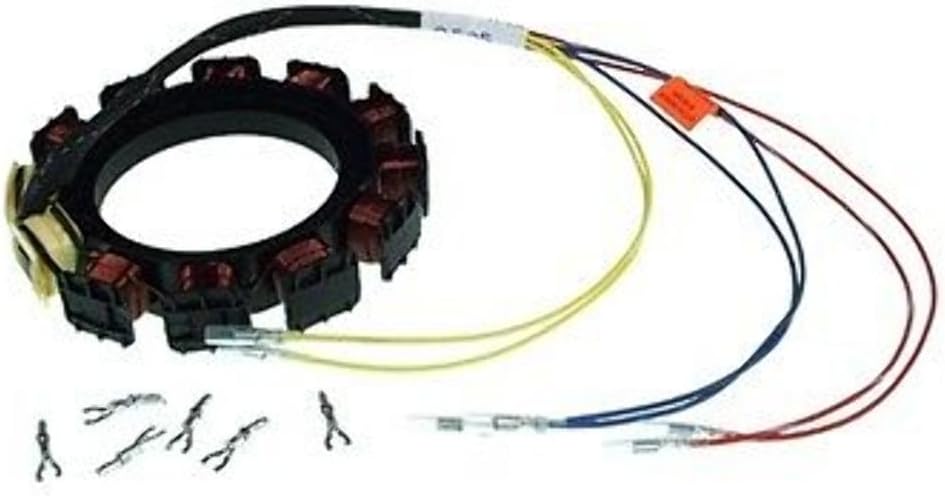

The CDI Electronics 174-9710K 1 is a high-output 16 amp replacement stator designed for Mercury and Mariner outboard engines. This direct replacement stator provides reliable ignition system performance for 2-cylinder, 3-cylinder, and 4-cylinder engine configurations.
Key Features:
- 16 amp output for optimal charging performance
- Compatible with 2, 3, and 4 cylinder Mercury/Mariner outboards
- Flame-proof tin-coated, solvent-resistant lead wires for durability
- Engineered to allow efficient heat dissipation from windings during operation
- Requires voltage regulator for proper operation
Important Installation Note: Do not use the red stator adapter with this replacement. Not for use with flywheels that have bolted-in magnets. If replacing a red Mercury stator series, connect all wires as directed.
Replaces Mercury OEM Numbers: 398-818535A17, 398-818535A18, 398-9710A11, 398-9710A12, 398-9710A14, 398-9710A15, 398-9710A17, 398-9710A18, 398-9710A22, 398-9710A23, 398-9710A25, 398-9710A28, 398-9710A30, 398-9710A31, 398-9710A33, 398-9710A34, 398-9710A35, 398-9710A36, 398-9710A38, 398-9710A39, 398-9710A43, 398-9710A45, 398-9710A46, 398-9710A47, 398-9710A48, 398-9710A49, 398-9873A9, 398-9873A17, 398-9873A19, 398-9873A24, 398-9873A25, 398-9873A29, 398-9873A32, 398-9873A33, 398-9873A35, 398-9873A38, F747095
