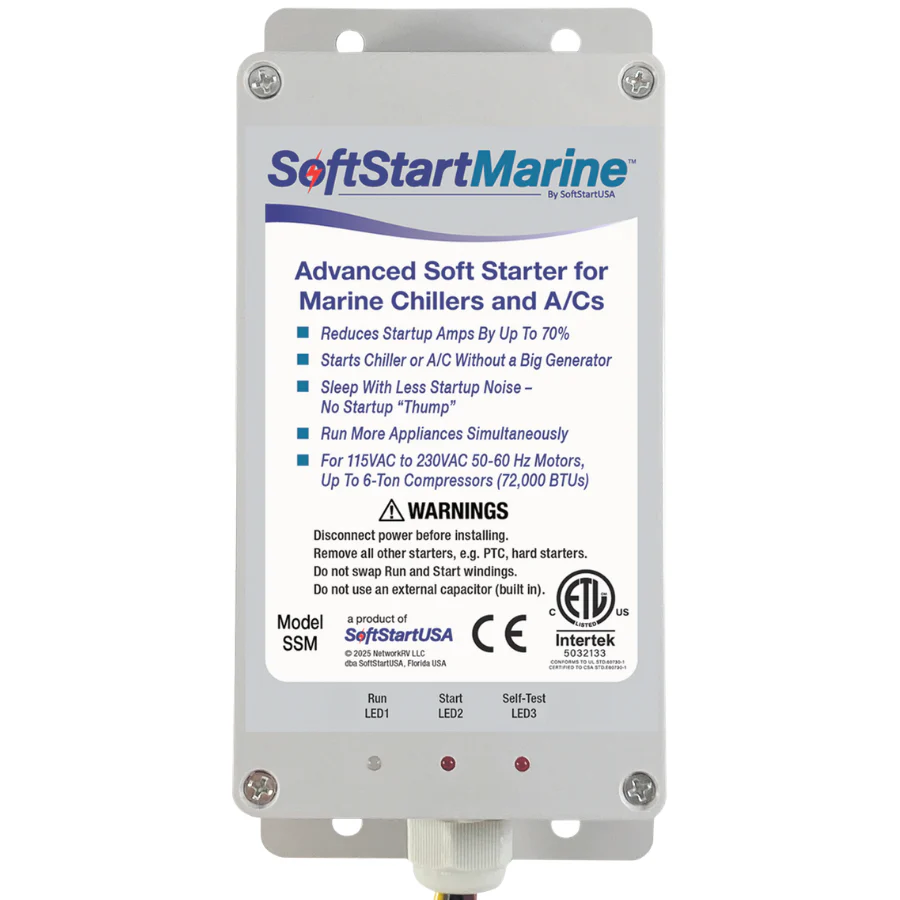

SoftStartRV SSM6T Soft Start Marine Air Conditioner Compressor Soft Starter

The SoftStartRV SSM6T SoftStart Marine is a purpose-built marine air conditioner soft starter designed to work with any boat air conditioning system. By intelligently ramping up compressor startup power over approximately one second, it reduces startup current draw by up to 70%, eliminating the hard inrush surge that can overload generators, inverters, and battery banks.

Compatible with both 110V and 220V single-phase systems, the SSM6T is an ideal solution for boaters who want to run their AC on a small generator, shore power with limited amperage, or stored battery power. Its waterproof enclosure and robust shock and vibration resistance make it well-suited for the demanding marine environment.

Key Features:

• Reduces compressor startup current by up to 70% for smooth, quiet AC startups
• Compatible with all boat air conditioner brands and models
• Supports both 110VAC (90–135V) and 220VAC (187–266V) single-phase systems
• Maximum continuous working current: 42A; over-current limit: 50A/1 minute
• Soft start-up time: 1 ± 0.5 seconds
• Less than 3 watts of power consumption during operation
• Rated for more than 45,000 hours of operation at rated working temperature
• Over 100,000 effective soft start on/off service cycles
• Built-in electronic overload protective relay guards against current surges and voltage drops
• Automatic protection restart with a 3-minute delay after interruption
• Waterproof, shock-resistant enclosure — withstands more than 200 m/s² shock and 10–55 Hz vibration
• Operating temperature range: -40°F to 185°F (-40°C to 85°C)
• Operating humidity: 0–95% RH
• Withstand voltage (housing to chassis): >3,000VAC for 1 minute
• Compact design — 52% smaller than competing soft starters, fits in tight spaces

What's Included:

• SSM6T SoftStart Marine unit
• Wiring connectors
• Zip ties
• Hardware fasteners
• Instruction guide

The SSM6T ships with all hardware needed for a no-cut, no-splice installation. A one-year limited warranty is included standard, extendable to three years upon product registration.
