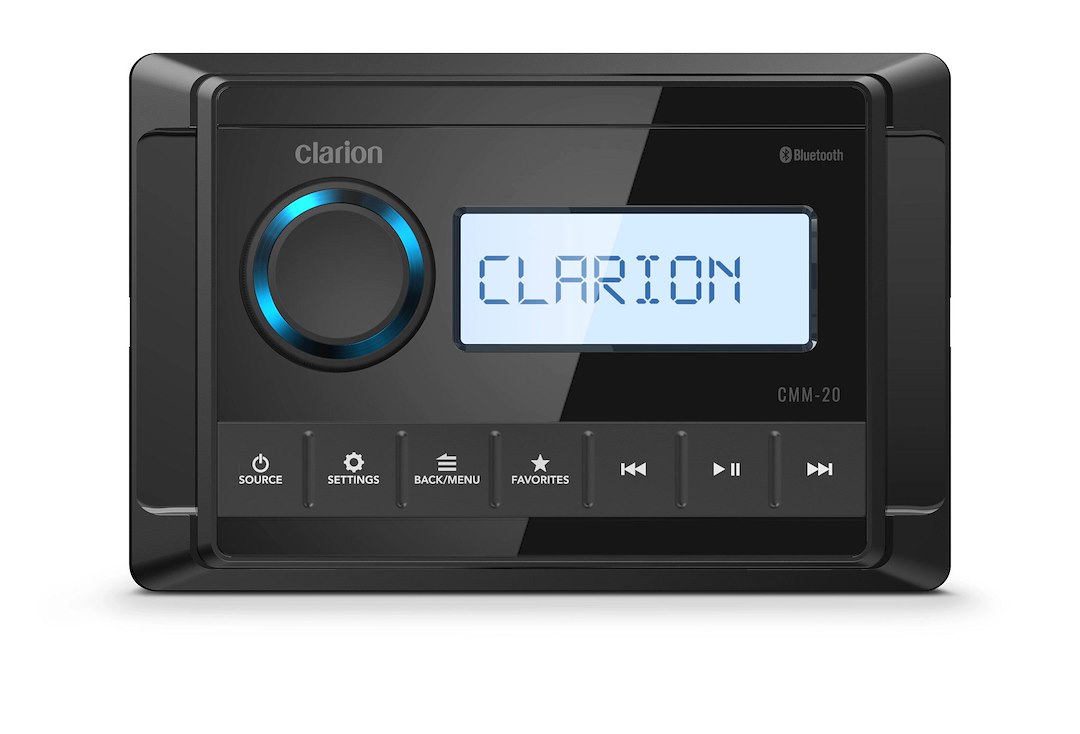

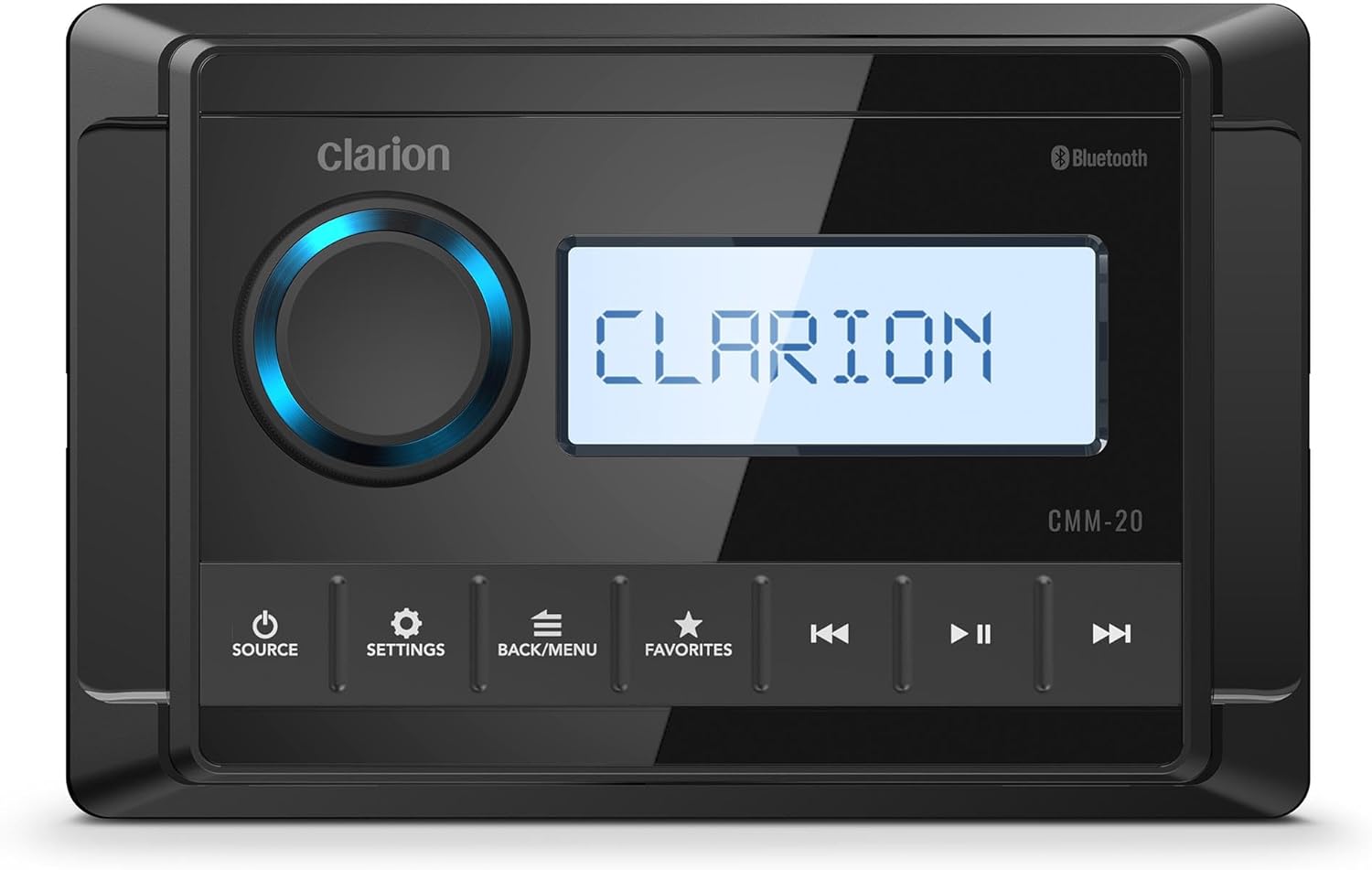

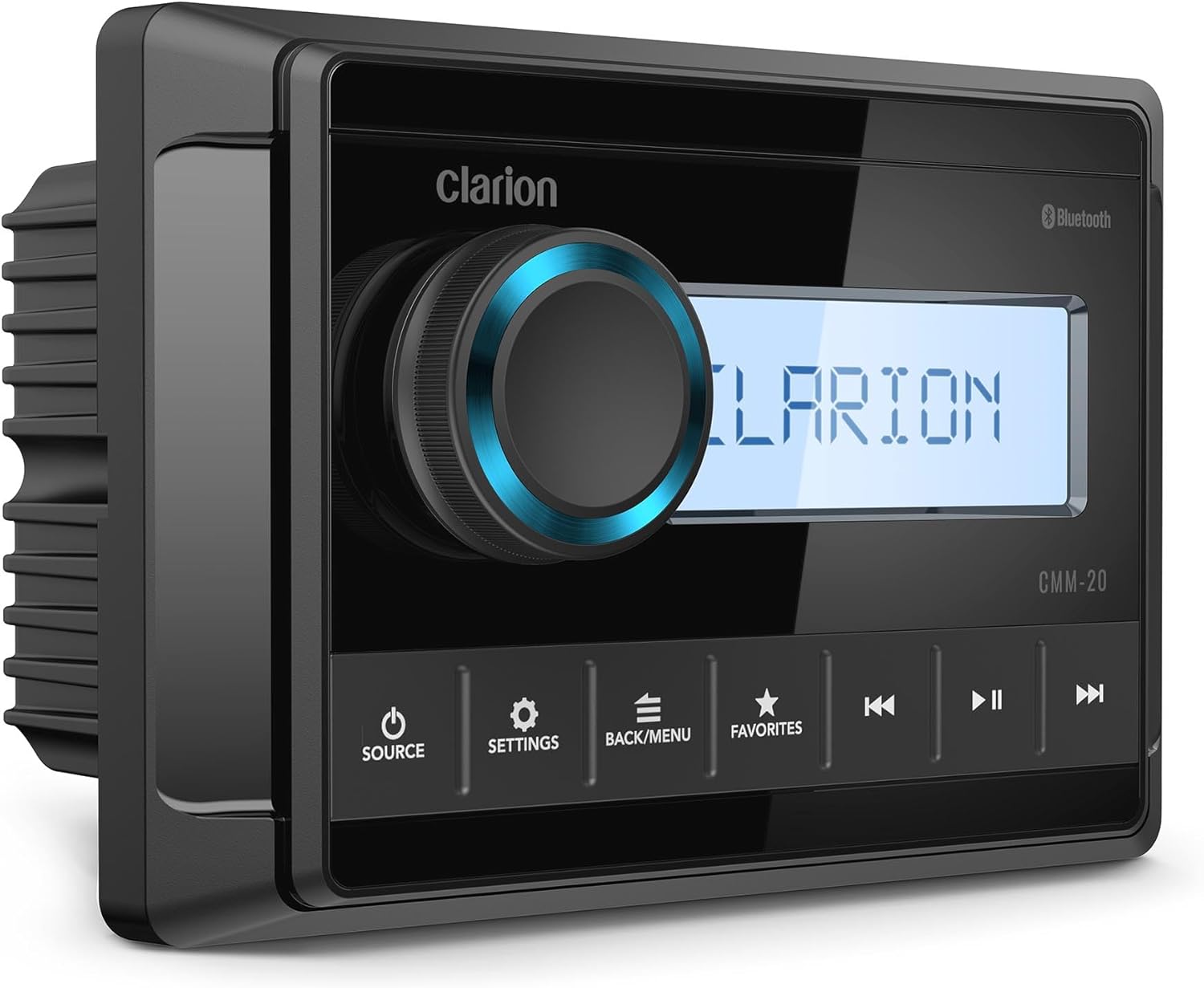

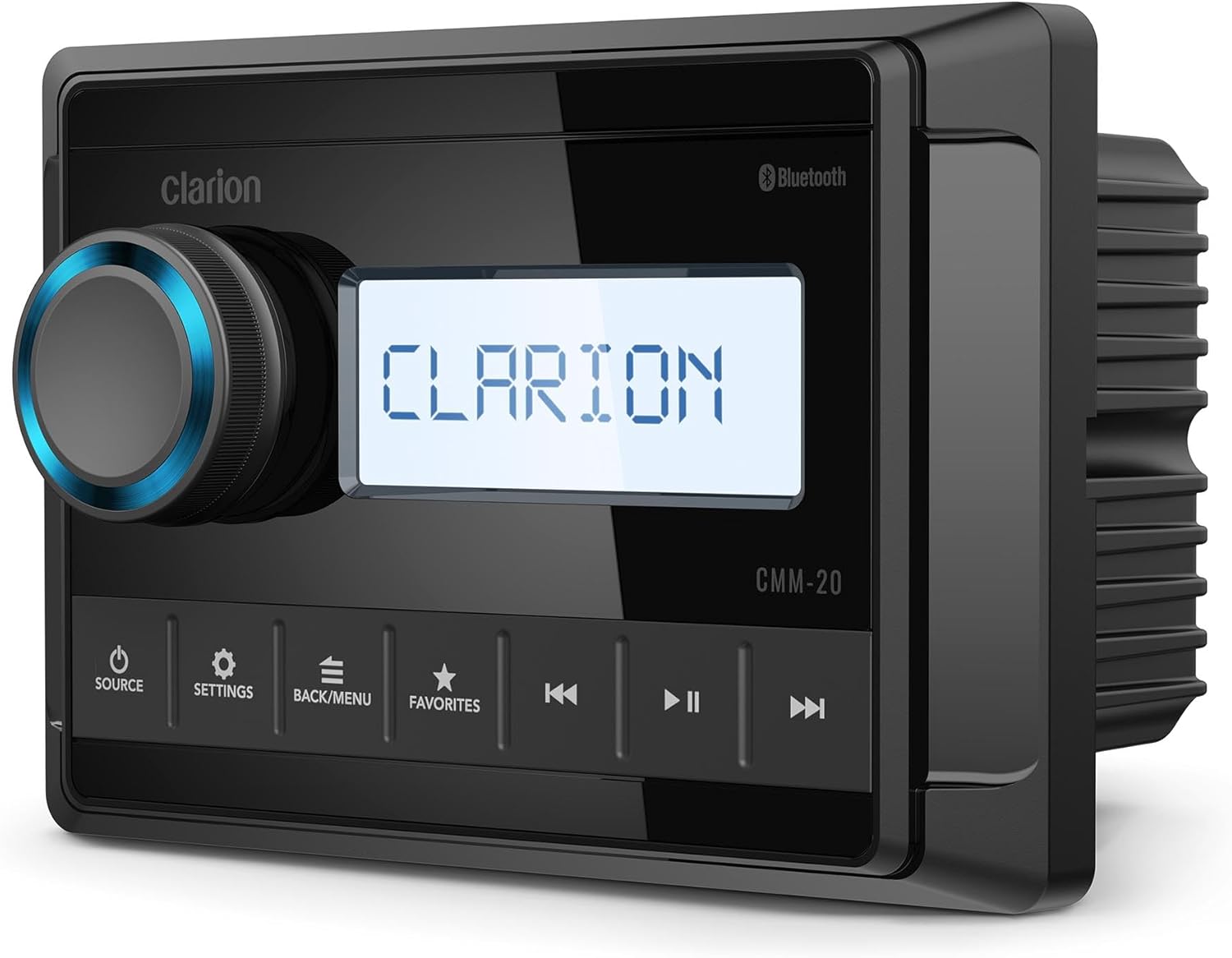

Clarion 010-03223-00 CMM-20 Marine Digital Media Receiver with LCD Display

The Clarion CMM-20 is a high-performance, dual-zone marine source unit engineered to deliver exceptional audio quality in the harshest marine environments. This weatherproof digital media receiver combines versatile connectivity options with powerful built-in amplification, making it the ideal entertainment solution for boats and marine applications.

Versatile Audio Sources:

• Global digital AM/FM tuner with built-in NOAA weather radio (US only)
• Bluetooth 5.0 audio streaming for wireless connectivity with smartphones and tablets
• USB 2.0 port for playback from USB storage devices with 1A charging capability
• Stereo auxiliary input for connecting external devices
• Supports MP3, WMA, FLAC, and WAV audio formats

Marine-Grade Durability:

• IP66 weatherproof rating protects against water spray, saltwater, and dust intrusion
• Exceeds ASTM B117/D4329 standards for salt fog and UV exposure resistance
• UV-treated materials and rubber gaskets with integrated drainage channels
• Operating temperature range: -4°F to 140°F (-20°C to 60°C)

Display and Controls:

• 2.37-inch high-contrast TFT LCD display with dimmable control for nighttime viewing
• Large rotary volume control and rubberized backlit buttons for easy operation
• Intuitive interface with large text optimized for in-motion use
• Compact design fits tight installation spaces

Powerful Audio Performance:

• Built-in amplifier: 100 watts total power (25W RMS x 4 channels at 4 ohms)
• Dual-zone audio control for independent zone operation
• Stereo pair of preamp outputs (1.5V RMS) with selectable Zone 2 or subwoofer functionality
• Integrated tone controls (bass/treble) plus four equalizer presets
• Save up to 9 favorite stations/channels

Additional Features:

• Compatible with Clarion CMR-10, CMR-20, and CMR-30 wired marine remotes (sold separately)
• 14.4V DC operating voltage with 15A maximum current draw

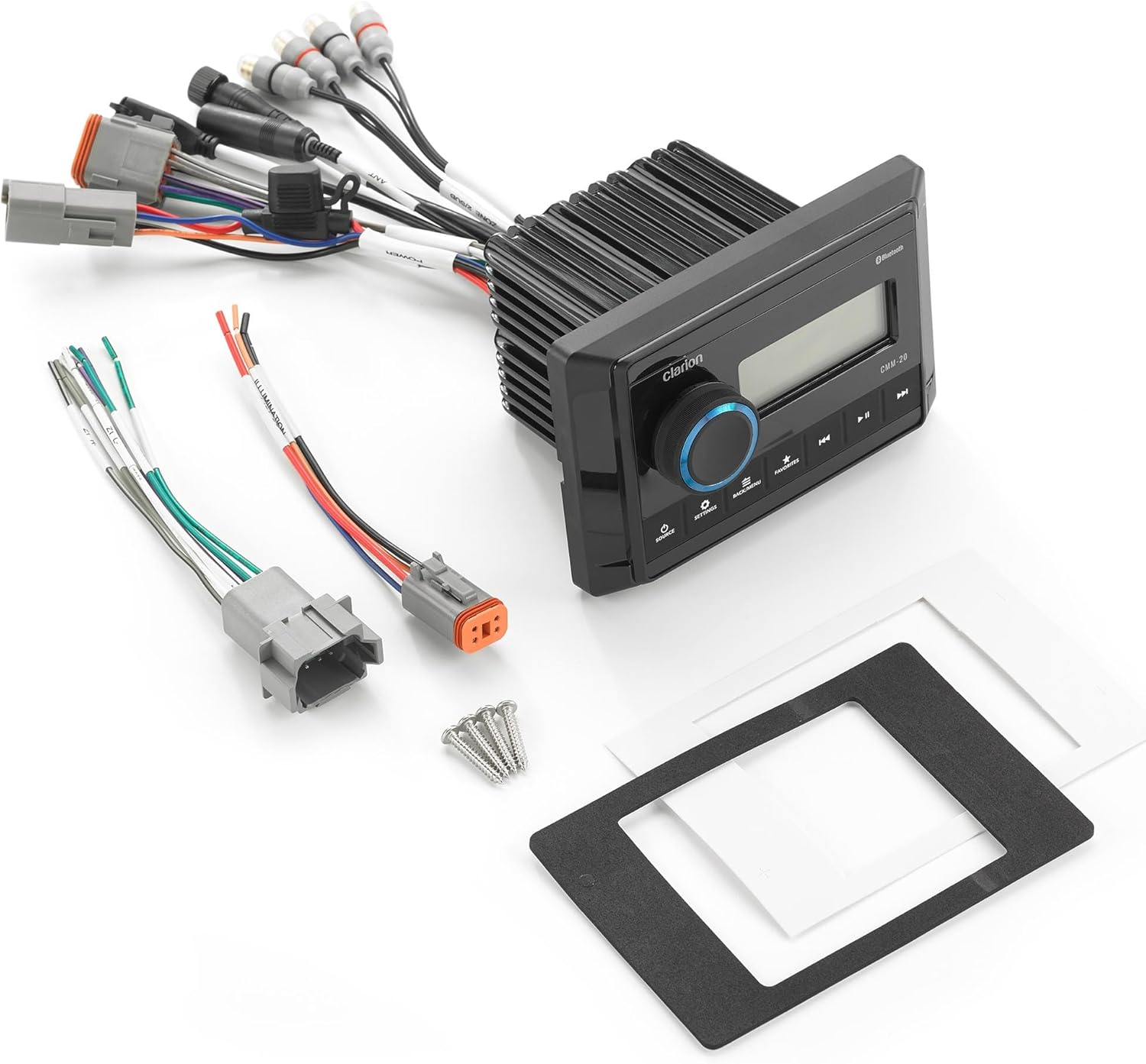

• Includes mounting hardware, trim ring, gasket, and wiring harnesses

Built to exceed industry standards for marine audio equipment, the Clarion CMM-20 delivers reliable performance and exceptional sound quality for years of on-water entertainment.
