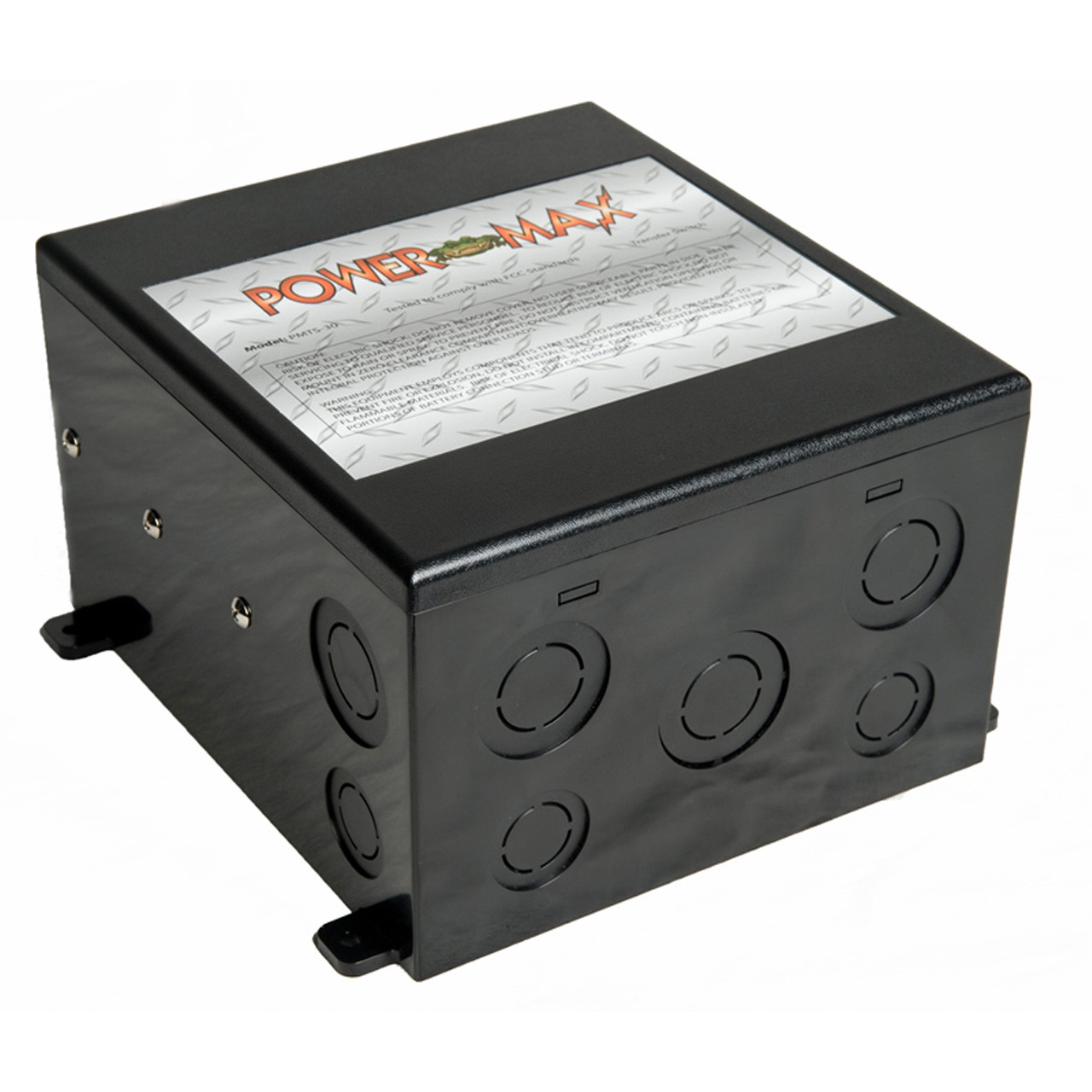

Chris Products PMTS-50LK 50 Amp Automatic Transfer Switch

The PowerMax PMTS-50LK is an automatic transfer switch that provides switching between two 120 volt AC power sources and is designed for use in RVs with 50 Amp service. This unit provides automatic switching between two AC power sources, such as shore power, generator or power inverter, for RV and marine applications.

Key Features:

• Automatic transfer between 2 – 110Vac inputs to a single 110Vac output
• 12 Volt DC relay for reliable operation
• 20-30 second time delay allows generator voltage to stabilize before connecting
• Can be mounted in any position, leaving enough room for shoreline and generator wire connections
• Ideal for uses with RV, off-grid and backup power solutions
• Replacement for the Iota TS-50R
• 2 year warranty

When plugged into shore power it will automatically provide AC power to all AC appliances. To minimize voltage drop across the wire, install the PMTS-50 as close to the generator and shore power cord entrance as possible.
