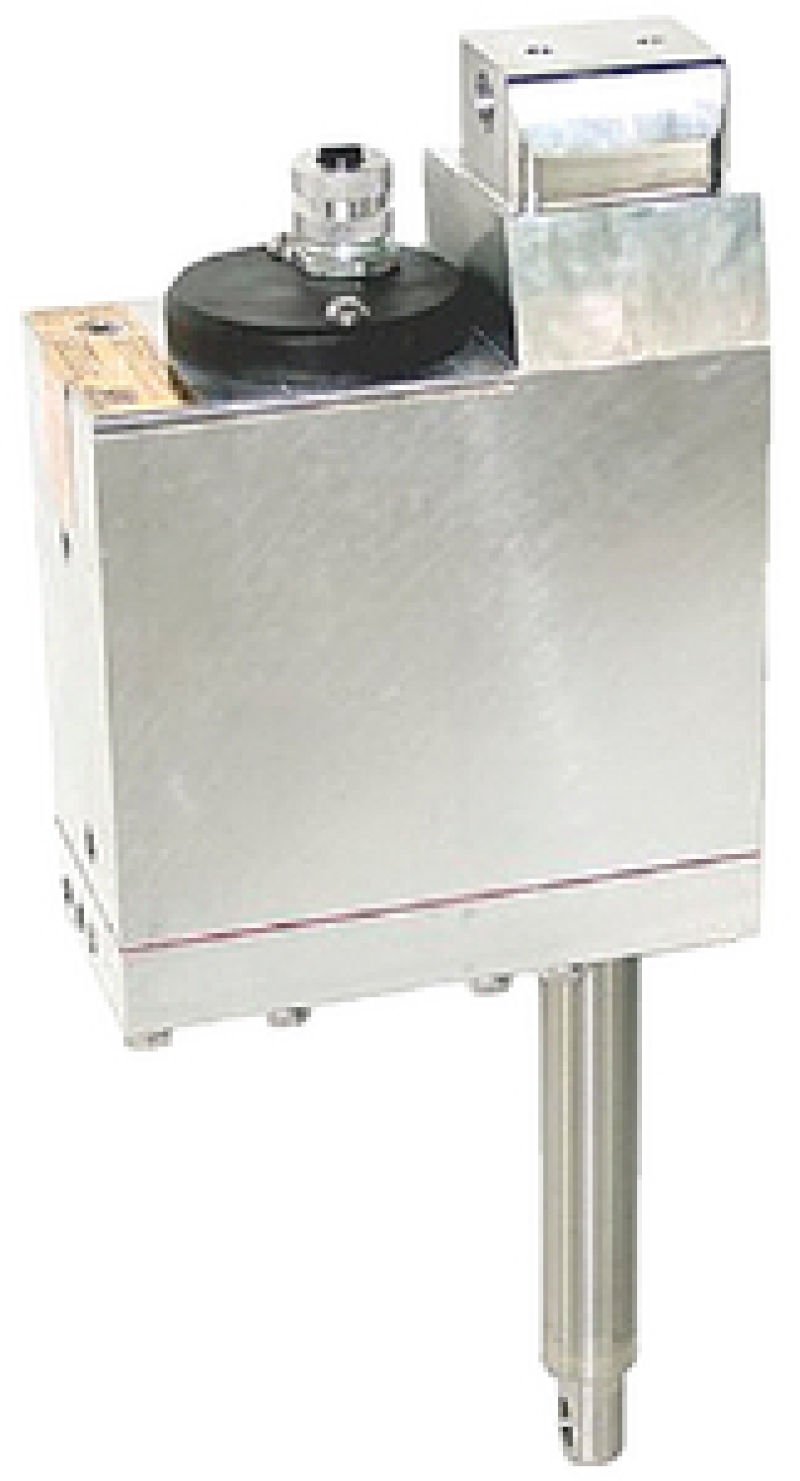

T-H Marine 7050 Standard Hydraulic Actuator for CMC Jack Plates and Tilt & Trim Units

The T-H Marine / CMC 7050 Standard Hydraulic Actuator is a fully self-contained replacement actuator engineered for use with CMC and T-H Marine Power-Lift, Hydro-Jacker, and Tilt & Trim systems. Designed for the one-piece motor/hydraulic actuator assembly found on late-model units, this actuator delivers reliable hydraulic power without the complexity of separate hoses, pumps, or external cylinders.

Key Features:

• All-in-one design — integrates the pump, motor, fluid reservoir, and cylinder into a single compact body
• 100% non-ferrous materials — fully submersible construction for use in freshwater and saltwater environments
• No-leak seal and wiper — keeps dirt and water out of internal working components
• 12V DC permanent magnet motor — compatible with standard 12-volt marine electrical systems
• 5-inch stroke length with a minimum extend thrust of 5,000 lbs and retract thrust of 3,750 lbs
• 6061-T6 aluminum alloy construction with 18-8 stainless steel fasteners for corrosion resistance
• Fluid capacity: 21 cu. in. (0.7 pint); Weight with fluid: 12.5 lbs
• Rate of travel: 15 inches per minute

Compatible Models:

• CMC Power-Lift hydraulic jack plates: 61001, 61002, 65001, 65002, 65201, 65501, 65502
• T-H Marine Hydro-Jacker hydraulic jack plates: HYJ-6C-DP, HYJ-10C-DP
• CMC Power Tilt & Trim Units — PT-35 & PT-130 (models: 13001, 13002, 52100)
• ATLAS Tilt & Trim Units: THT-35C-DP, THT-130C-DP, THT-130CGK-DP

Important: This actuator is not compatible with high-speed versions of hydraulic jack plates. Verify your unit has the one-piece motor/hydraulic actuator assembly before ordering.
