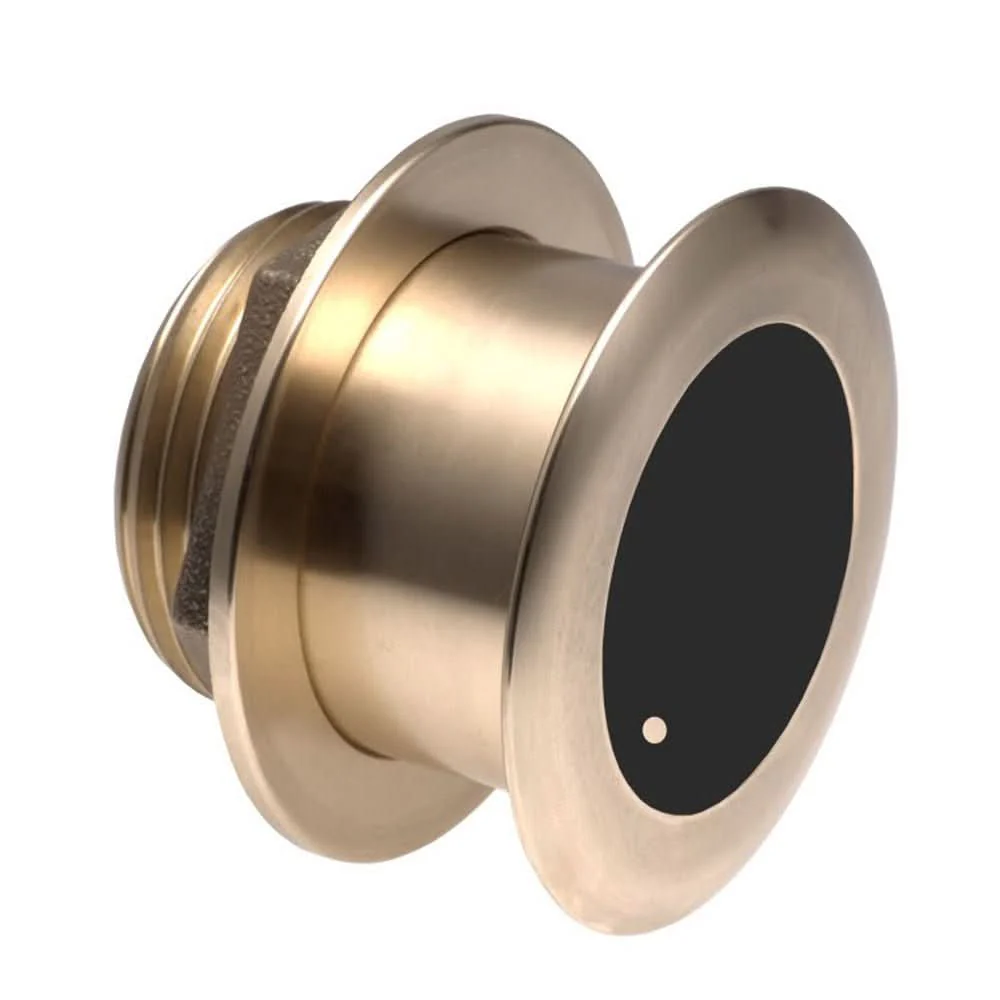

Airmar B175C-12-H-MM High-Frequency CHIRP Thru-Hull Transducer with 12° Tilt - 1kW Bronze

The Airmar B175H is a high-frequency CHIRP transducer designed for smaller boats such as center consoles, featuring a low-profile bronze housing ideal for fiberglass or wood hulls. This flush-mounted bronze housing protrudes less than 1/4-inch outside the hull and can sit on trailer rollers or bunks without damage.

High-Frequency CHIRP Technology:

• CHIRPS from 130 kHz to 210 kHz with 15° to 9° beamwidth
• 80 kHz of total bandwidth in just one installation
• Narrow beamwidth excellent for pinpointing fish holding tight to wrecks, reefs, and other structures with amazing target separation on baitfish and schooling gamefish
• Bottom detection down to 3,000m (10,000') with 5 to 10 times greater detail and resolution

Tilted Element Design:

• 12° tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block
• Installed almost flush to the hull, the tilt corrects for the hull's deadrise and orients the ceramic element horizontally to ensure maximum echo returns
• Supports vessels with maximum deadrise angles up to 24 degrees

Key Features:

• 1 kW power rating for reliable performance
• Depth and fast-response water-temperature sensor
• Durable bronze transducer housing
• Exclusive Xducer ID® technology
• Recommended for vessels up to 36 feet (11 meters)
• Suitable for stepped, planing, or displacement hulls

Important: This transducer requires a separate Mix and Match (M&M) CHIRP cable for connection to your compatible fish finder or sonar system. The Mix and Match connector allows you to select the appropriate cable for your specific electronics brand (Garmin, Raymarine, Humminbird, Furuno, etc.).

Superior shallow-water performance and bottom detail make this transducer ideal for serious anglers, commercial fishermen, and charter captains seeking professional-grade sonar imaging.
