Walker Bay Boats 010-03028-00 JL Audio MAX-KIT Professional Audio Measurement System

The JL Audio MAX-KIT (010-03028-00) is a professional-grade audio measurement system designed for precise system tuning, troubleshooting, and analysis. This 5-microphone audio measurement system is ideal for system tuning with DSP and analyzing audio systems, with applications in car audio, marine audio, home audio, and professional audio environments.

Key Features:

• Five included microphones that multiplex to conduct single FFT measurements of level and frequency response (RTA and spectrograph)
• Dual FFT measurements of up to five simultaneous transfer functions with precise displays of magnitude, phase, impulse response, and coherence
• Measurement accuracy comparable to professional test equipment sold for tens of thousands of dollars
• Built-in test signal generator with pink and white noise, sine waves, square waves, and WAV file playback capability
• Automatic True Delay feature sets VXi/MVi channel delays accurately and quickly
• Autoset EQ feature configures VXi/MVi parametric EQs to your selected target in seconds
• Wide range of inputs including up to five microphones, analog high-level signals up to 80V, low-level signals up to 7V, and optical digital S/PDIF signals
• Multiple signal outputs with integrated DAC, analog line-level outputs, headphone outputs, and optical digital output
• Built-in USB hub for simplified connections to computers and DSP amplifiers

What's Included:

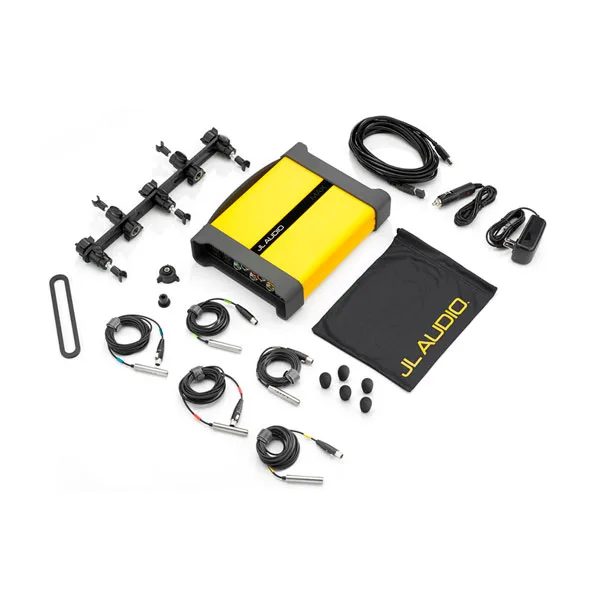

The MAX-KIT includes the MAX hardware interface, five measurement microphones, a multi-mic fixture, mounting accessories, cables and power supplies, all packed in a locking, waterproof hard case. Requires a PC (Windows 10) or Mac (OS 11 Big Sur or newer) and JL Audio's free TüN 4 software for operation.

Technical Specifications:

• Power Supply: 12 VDC nominal (10-15 VDC range)
• Microphone Type: 1/4" pre-polarized electret (omnidirectional)
• Maximum Input SPL: 130 dB SPL @ 1 kHz
• Frequency Response Flatness: ±1 dB from 50 Hz to 10 kHz
• Input Impedance: 73 kΩ (high-level inputs)
• Weight: 1.00 lbs (hardware interface only)

The MAX-KIT works seamlessly with JL Audio VXi and MVi amplifiers through the TüN 4.0 software, providing real-time visual feedback for precise manual EQ adjustments and automated tuning functions that streamline the setup process.
