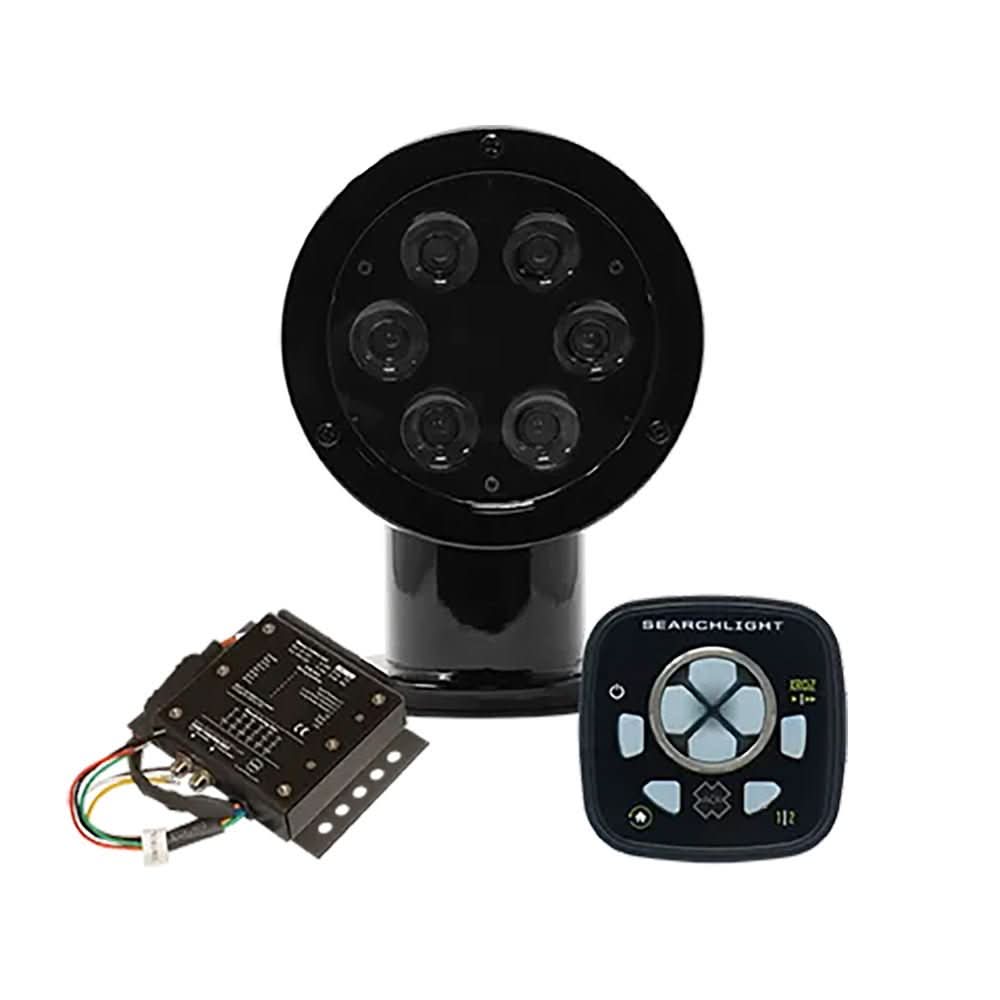

The ACR Electronics RCL-50 LED Marine Searchlight is a powerful, compact remote-controlled lighting solution designed for small-to-mid-size pleasure crafts, sport fishers, yachts, workboats, and light commercial vessels. This complete package includes the black RCL-50 LED searchlight, URP-103 wired point pad controller, and URC-104 master controller for comprehensive marine illumination control.
Advanced LED Performance:
- Ultra-bright 6-LED array producing over 100,000 candela power
- Spot beam pattern optimized for long-distance visibility
- Energy-efficient design reduces power consumption by up to 50% compared to halogen searchlights
- Designed for 12V DC marine electrical systems
- LED bulbs rated for over 40,000 operating hours
Robust Marine Construction:
- Rugged die-cast aluminum housing (518 grade) with triple-primed and sealed finish
- Black powder-coated finish with UV stabilizer for harsh saltwater environments
- Sealed glass lens protects internal components from moisture and corrosion
- Fully enclosed mechanisms for reliable operation in marine conditions
Versatile Movement and Control:
- 360-degree continuous rotation with fast and slow speed options
- 40-degree total tilt range (±20 degrees) for precise beam positioning
- Internal elevation mechanism for accurate pitch control
- Supports up to 3 remote controllers for flexible operation from multiple stations
- Compact 4.75-inch footprint diameter for easy installation
XRCiZâ„¢ Corrosion Prevention Technology:
ACR's exclusive XRCiZâ„¢ feature automatically rotates and moves the light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and maintain electrical contact functionality, ensuring long-term reliability in marine environments.
URP-103 Wired Point Pad Controller:
The included URP-103 point pad features modern, sleek styling that integrates seamlessly with contemporary marine dashboards and control panels. Perfect for new installations or refits, this next-generation controller provides intuitive searchlight operation with an updated aesthetic.
URC-104 Master Controller:
The URC-104 master controller mounts discreetly behind the dashboard and serves as the central hub for searchlight operation. This intelligent control unit enables seamless functionality of wired point pad controllers and optional wireless remotes, providing the flexibility to control your searchlight from multiple locations on your vessel.
Specifications:
- Dimensions (H x W x D): 8.4" x 6" x 8" (21.3 x 15.2 x 20 cm)
- Footprint Diameter: 4.75" (120.7 mm)
- Weight: 7.72 lbs (3.5 kg)
- Voltage Input: 12 VDC
- Light Output: 100,000+ candela
- Rotation: 360° continuous
- Tilt: 40° total range
- Beam Pattern: Spot
- Material: Die-cast aluminum
- Color: Black
