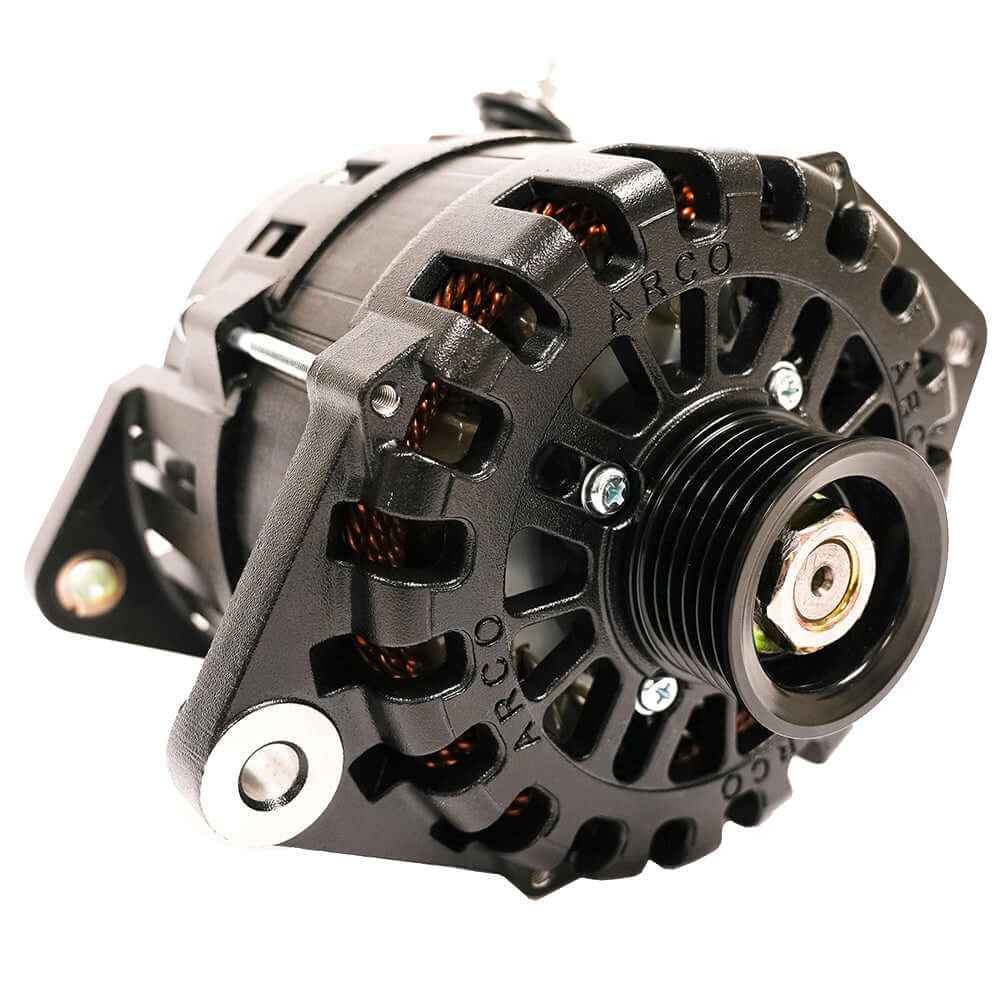

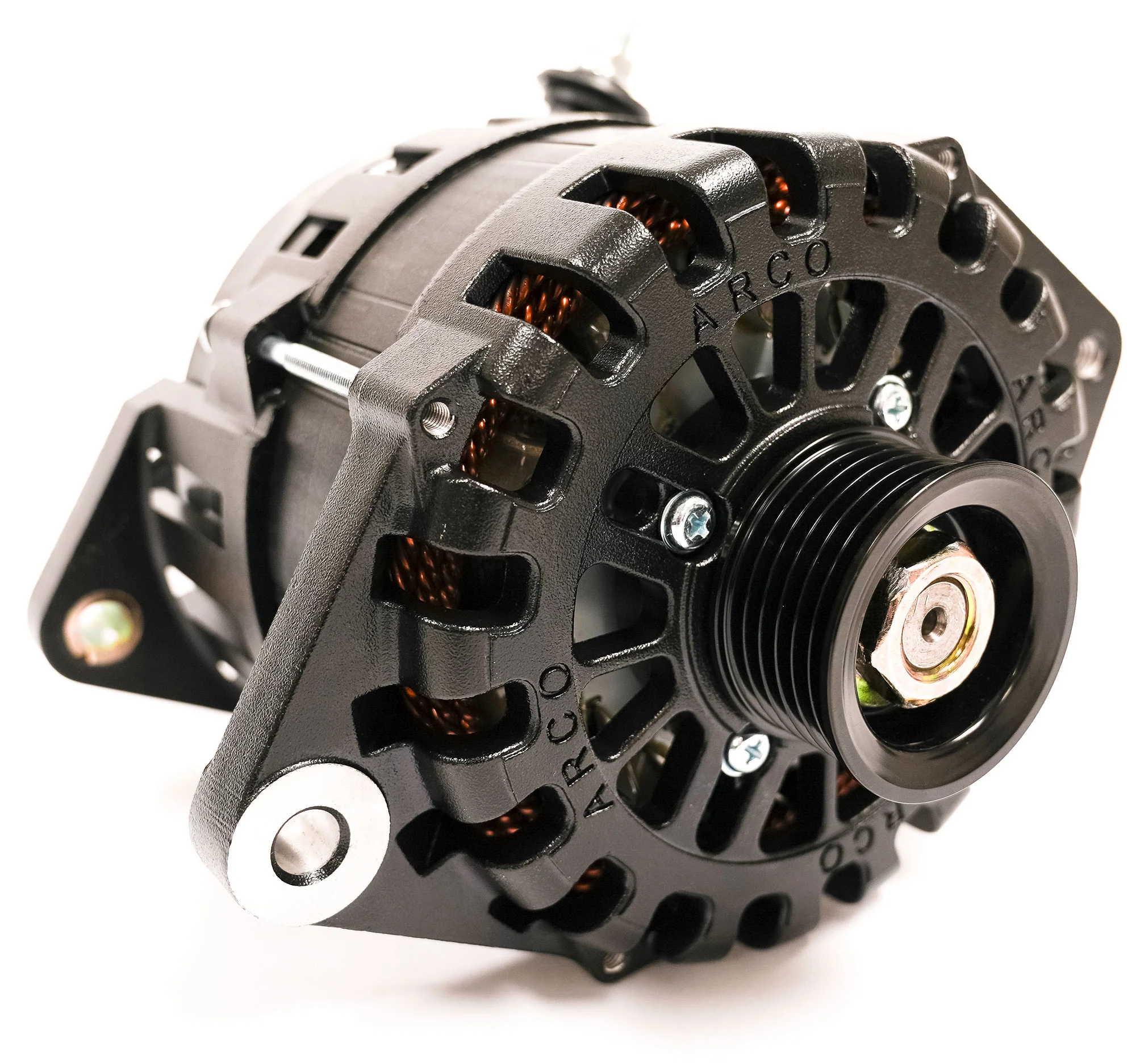

Arco Marine 4019 Zeus A275L 12V 275A High Output Alternator 3.15" Saddle Mount with Isolated Ground Terminal Block

The Arco Marine Zeus A275L (Part #4019) is a 12-volt, 275-amp high-output marine alternator engineered for maximum energy production in demanding applications. Featuring a 3.15" (DF315) J180 saddle-style mount with an isolated ground and side terminal block, this alternator is the highest power output unit in its size and class — purpose-built to rapidly charge large battery banks and reduce reliance on a generator.

The A275L runs 8–20% cooler than comparable alternators thanks to its proprietary E-Coat/Cerakote heat-shedding coating, an externally mounted rectifier, dual cooling fans, and OEM-grade internal components. Cooler operation translates directly into sustained higher amperage output over time. The unit is optimized for strong performance even at idle engine speeds.

This unit ships in an Internal/External (IE) regulation configuration, meaning it is internally regulated out of the box but includes an adaptor for optional connection to an external regulator such as the ARCO Zeus Bluetooth Alternator Regulator — ideal for lithium battery charging or advanced performance tuning.

Key Features:

• 275-amp high-output, 12-volt alternator — highest power in its size class
• 3.15" (DF315) J180 saddle-style mount — replaces Hitachi, Lucas, and Mitsubishi small-case styles; fits most Yanmars
• Isolated ground design with side battery post terminal block
• E-Coat/Cerakote finish for superior heat management and sustained output
• Runs 8–20% cooler than incumbent alternators for extended performance
• Optimized for high output at low idle RPMs
• Compatible with ARCO Zeus Bluetooth Alternator Regulator for lithium battery charging
• Internal/External (IE) voltage regulation — internally regulated with external regulator adaptor included
• SAE J1171 certified for marine applications
• Made in the U.S.A.

The ARCO Zeus A275L is the ideal upgrade for marine, RV, military, and commercial applications where maximum charging performance and reliability are essential.
