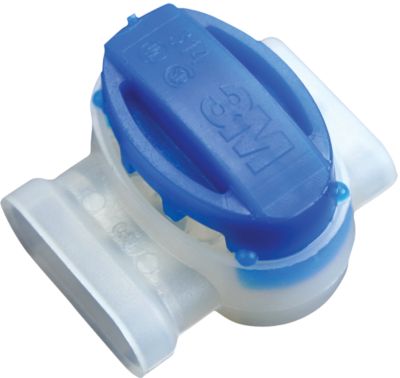

3M 7100370157 Scotchlok 314 IDC Electrical Connector Pigtail 22-14 AWG

The 3M Scotchlok Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease, designed to connect 2 or 3 wires. This connector is self-stripping, flame retardant and moisture resistant.

Key Features:

• Connects 2 or 3 wires in the range of 22 through 14 AWG solid or stranded copper wire in a pigtail application while insulating the connection and providing a moisture resistant seal
• Tin plated brass U-contact construction for reliable electrical conductivity
• Maximum insulation outer diameter of 0.150 in (3.8 mm)
• UL Listed and CSA Certified for 600 volts maximum building wire, 1000 volts maximum for signs, fixtures and luminaires, temperature rated 105°C maximum
• Grease filled to protect against corrosion
• Blue cap with white body color coding

Designed with insulation displacement connection (IDC) technology, this connector ensures durable and long-lasting performance, ideal for both professional and maintenance electrical tasks. Installation requires simple mechanics pliers to create secure, reliable connections without wire stripping.
