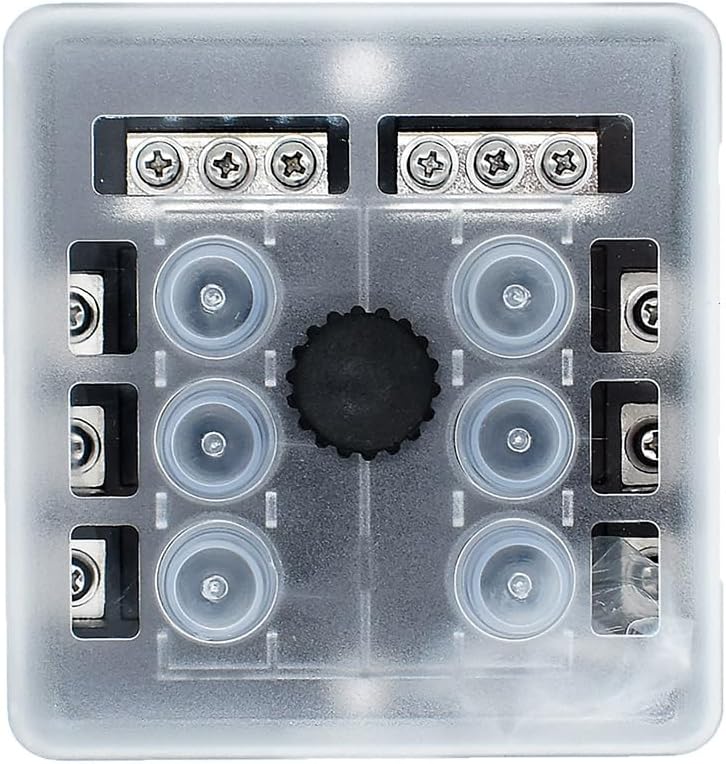

Bluewater 3200-2001-006 6-Position Circuit Breaker Block with Cover

The Bluewater 3200-2001-006 is a 6-position circuit breaker block with protective cover, designed as a reliable, resettable alternative to traditional fuse boxes for marine, RV, and mobile power systems. Instead of replacing blown fuses, each of the six circuits is individually protected by a push-to-reset thermal breaker — simply press to restore power instantly after a trip.

Key Features:

• Resettable Protection – Uses Bluewater 38 Series push-to-reset thermal breakers; no spare fuses needed
• High Capacity – Rated up to 48V DC with a 100A main input
• Durable Construction – Nickel-plated copper bus, stainless steel hardware, and polycarbonate base built for harsh environments
• Includes Cover – Protective cover shields connections from salt spray, vibration, and contamination
• Easy Installation – Pre-spaced mounting holes for straightforward panel placement

Specifications:

• Breaker Type: 88 Series / BW 38 Series
• Input Terminals: M5 threaded studs (100A max)
• Output Terminals: M4 threaded studs (25A max per circuit)
• Max Voltage: 48V DC
• Mounting Dimensions: 3.74" H x 3.54" W
• Mounting Hole Diameter: 0.1695"
• Material: Stainless Steel / Nickel-plated Copper / Polycarbonate
• UPC: 810196332300

Built for demanding marine and mobile electrical systems, the Bluewater 3200-2001-006 breaker block delivers clean, organized power distribution with the convenience of tool-free circuit reset.
