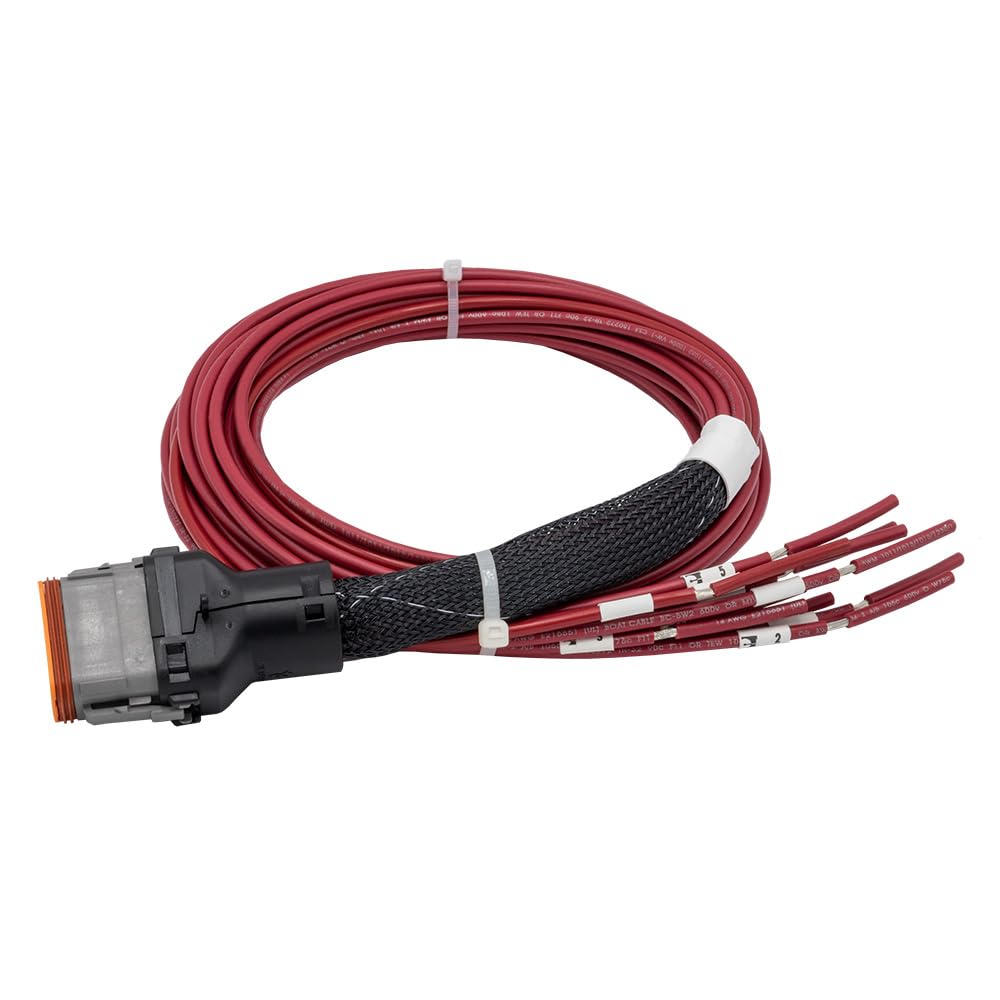

Maretron A3708 CLMD16-J2 Output Mating Connector with 1m Flying Leads

The Maretron A3708 is the J2 output mating connector with 1-meter (approximately 3 ft) pre-terminated flying leads, designed specifically for use with the Maretron MPower CLMD16 16-Channel DC Load Controller Module. This connector plugs directly into the J2 output receptacle on the CLMD16 and provides a ready-to-use wiring harness for connecting DC load circuits to the module.

The CLMD16 uses Deutsch-series connectors for its J1, J2, and J3 receptacles. The A3708 features a Deutsch DT06-12SA style 12-way plug with pre-installed 14 AWG sockets and numbered leads — with lead numbers corresponding to the breaker output channel, not pin position — simplifying installation and reducing wiring errors.

Key Features:

• Mates directly with the J2 output receptacle on the Maretron CLMD16
• Includes 1 meter (approximately 3 ft) of pre-terminated flying leads
• Leads are numbered for easy identification of breaker output channels
• Compatible with 14 AWG wiring per Deutsch connector specification
• Designed for use with the Maretron MPower DC load control system
• Sold individually as a replacement or additional connector for CLMD16 installations

The A3708 is also included as part of the CLMD16-R bundle, which ships one each of the A3708 (J2), A3709 (J1), and A3710 (J3 I/O harness) connectors together with the CLMD16 module. Order the A3708 separately when replacing a connector or expanding an existing MPower installation.
