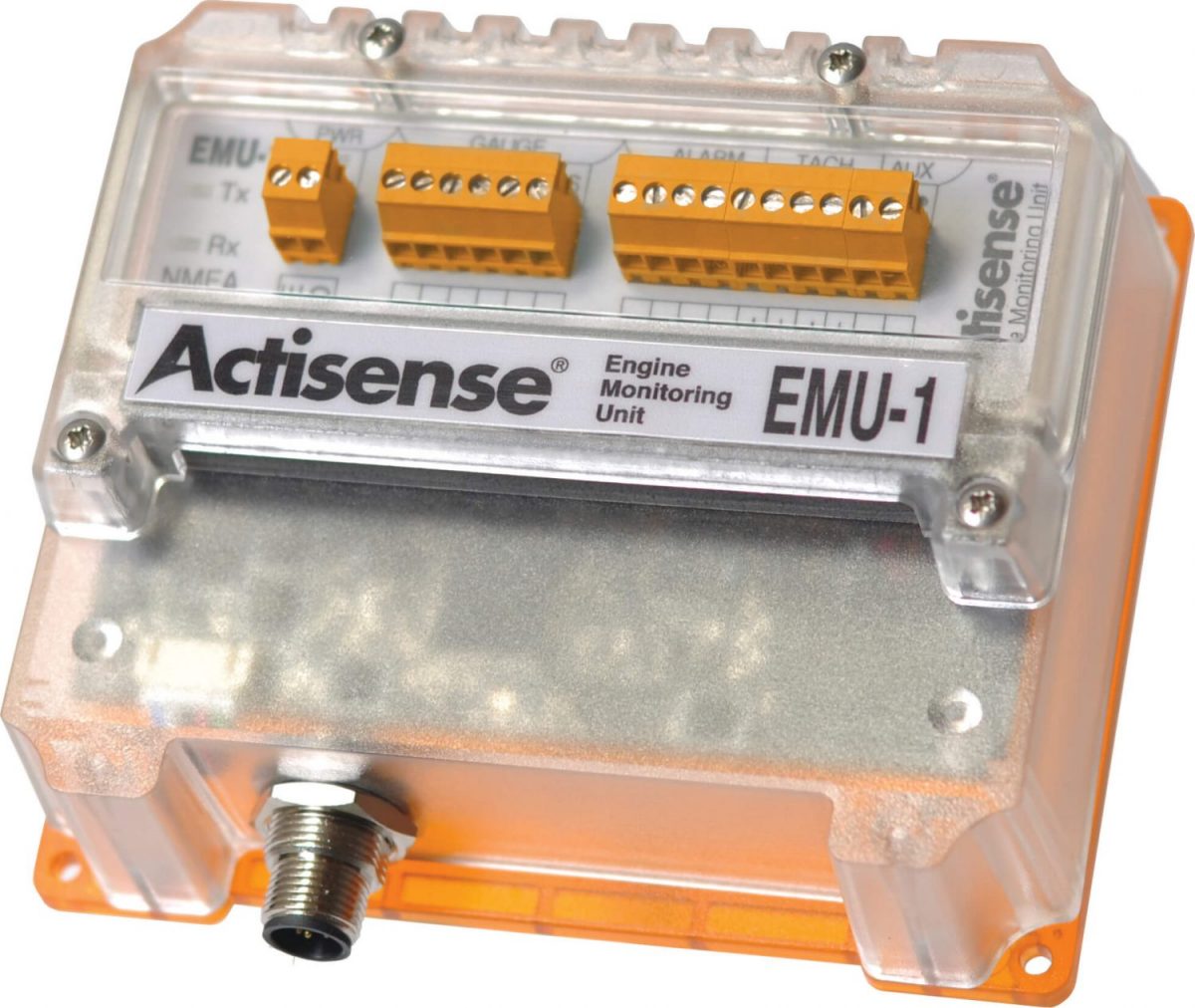

Actisense EMU-1-BAS Engine Monitoring Unit Analog to NMEA 2000 Gateway

The Actisense EMU-1-BAS is a specialized analog-to-NMEA 2000 gateway that converts data from analog engine gauges and senders into digital NMEA 2000 format, enabling modern multifunction displays to monitor engine parameters throughout your vessel's network. This marine engine monitoring solution digitizes analog engine sensors, allowing you to share vital engine information across the entire NMEA 2000 bus for comprehensive onboard monitoring.

Key Features:

• Six gauge/parameter inputs for monitoring temperature, pressure, RPM, and fluid levels
• Two tachometer inputs for engine speed and engine hours logging
• Four dedicated alarm inputs for critical engine warnings
• Two additional auxiliary inputs for expanded monitoring capability
• Monitors vital parameters from up to two engines (that share a common ground)
• Tank level monitoring for up to six tanks with configurable instance identification
• Now includes support for tilt and trim tabs

Configuration and Compatibility:

• PC-based configuration tool allows customization to match specific engine senders and gauges
• Flexible solution compatible with many engine makes and models including Volvo Penta, Yanmar, Mercruiser, Perkins, and more
• Requires Actisense NGX-1 or NGT-1 NMEA 2000 gateway for initial configuration and firmware updates
• Compatible with ignition coil, alternator (W, R, or AC terminal), Hall effect, VR, and inductive senders
• Fully NMEA 2000 certified with Load Equivalent Number (LEN) of 1

Technical Specifications:

• Power supply: 9 to 35V DC with continuous reverse polarity protection
• Supply current: Less than 25mA at 12V DC
• Operating temperature: -20°C to +55°C (-4°F to 131°F)
• Environmental protection: IP66 rated housing
• Dimensions: 5.0" L x 4.4" W x 1.9" H
• Weight: 0.55 lbs

Installation:

• Bulkhead mount with four 3.5mm mounting lugs and included stainless steel screws
• Optional DIN rail mounting kit available (sold separately)
• Two-part screw terminal connection system for easy pluggable connection to engine wiring harness
• Sealed case with quick access to electrical connections

The EMU-1-BAS provides a cost-effective solution for integrating older analog engines into modern NMEA 2000 networks, eliminating the need to replace engines or install redundant gauges. Three-year manufacturer's warranty included.
