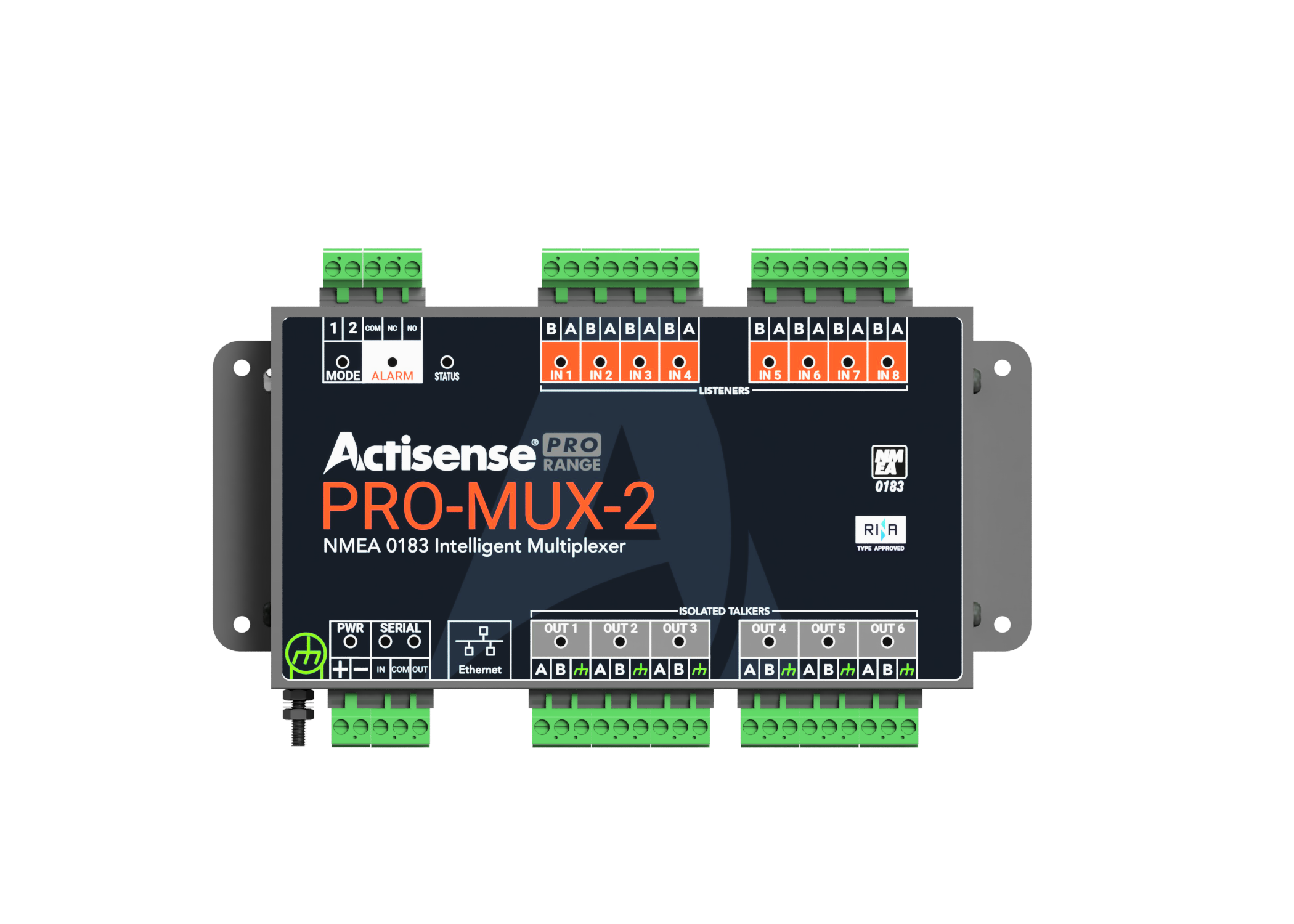

The Actisense PRO-MUX-2 is an intelligent, type-approved (RINA) professional NMEA 0183 multiplexer with a rugged stainless steel housing that provides isolation on all inputs and outputs. Featuring industry-leading isolation on all inputs and outputs as standard, connected devices safely avoid hazardous ground loops, the number one cause of product failure in NMEA 0183 networks.
Key Features:
- Eight OPTO-isolated NMEA 0183 inputs and six ISO-Drive™ isolated outputs
- Bi-directional serial port and Ethernet port for configuration, diagnostics, and data streaming
- All eight NMEA 0183 inputs can be routed to any of the six NMEA 0183 outputs, providing a highly customizable network
- 2-part pluggable connectors with screw or screwless terminal options allow easy device installation without removing the unit
- Professional DIN rail mounting mechanism for secure installation in high-vibration environments
- Helpful LEDs indicate power, data in, data out, and alarm status for easy diagnostics
- Web-based configuration tool accessible via any popular browser with no PC operating system compatibility issues
- Alarm output relay with N/O and N/C contacts available
- Free firmware updates for future-proof operation
The PRO-MUX-2 is perfect for larger leisure vessels, commercial shipping, and systems requiring type-approved devices, designed to suit the majority of NMEA 0183 systems from leisure through to class vessels. Fully compatible with NMEA 0183, RS422, and RS232, with RS485 listener compatibility.
Data can be filtered, passed, blocked, and monitored, giving greater flexibility and control over all instrument data. The serial port can be used for configuration, diagnostics, or as an additional NMEA 0183 input/output, while the Ethernet port enables 0183 data streaming and remote access.
