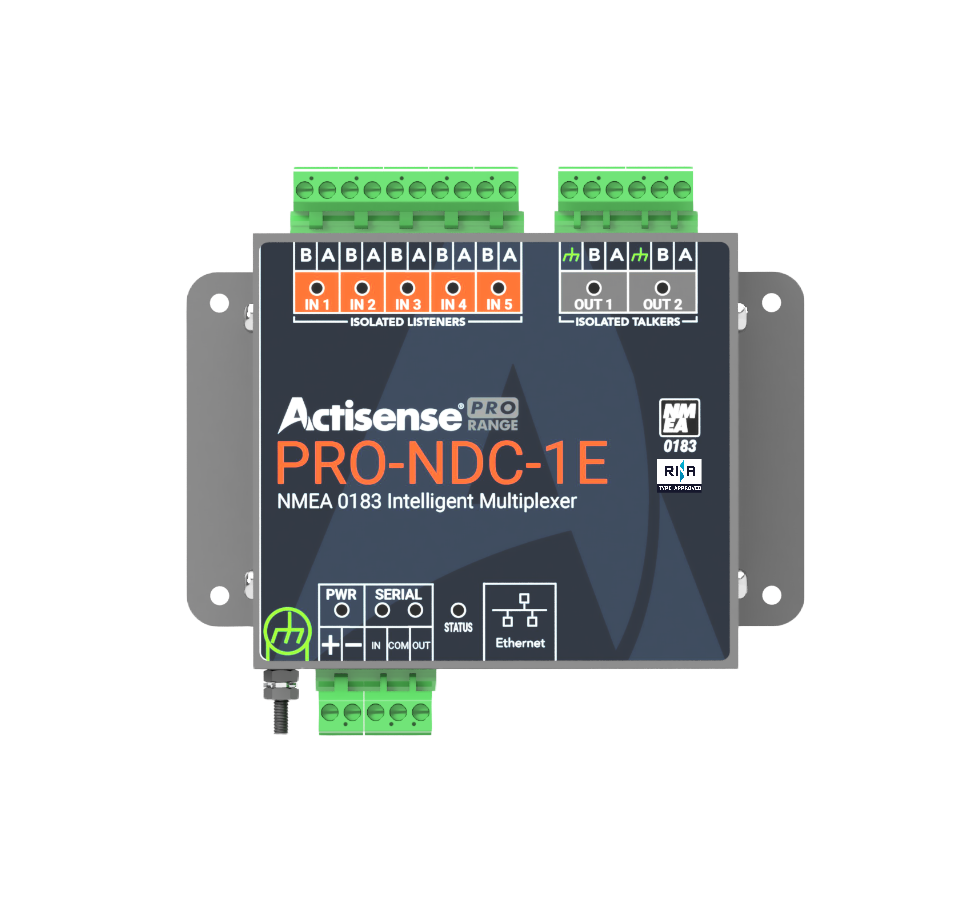

Actisense PRO-NDC-1E NMEA 0183 Multiplexer 5 Inputs 2 Outputs Ethernet

The Actisense PRO-NDC-1E is a professional-grade NMEA 0183 multiplexer designed for marine electronics integration. This rugged, type-approved device combines and distributes NMEA 0183 data streams across multiple marine instruments and systems with exceptional reliability.

Key Features:

• 5 NMEA 0183 differential inputs for connecting multiple data sources
• 2 ISO-Drive outputs for isolated data distribution to prevent ground loops
• Dual connectivity options: Ethernet and serial connections for flexible integration
• Intelligent data filtering and routing capabilities to manage data traffic
• Rugged, marine-grade construction with type-approval certification
• Supports both listener and talker configurations on all ports
• Web-based configuration interface for easy setup and monitoring
• Galvanically isolated inputs and outputs for superior electrical protection

The PRO-NDC-1E is ideal for consolidating data from multiple NMEA 0183 devices such as GPS receivers, depth sounders, wind instruments, and autopilots. The Ethernet connectivity enables integration with modern chart plotters and PC-based navigation software, while the ISO-Drive outputs ensure reliable connections to legacy NMEA 0183 equipment. Perfect for professional vessels, commercial applications, and demanding recreational installations where data integrity and reliability are critical.
