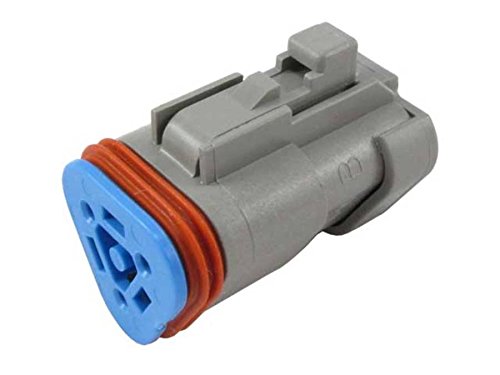

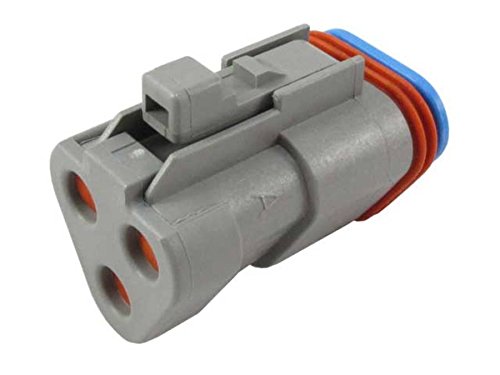

Bluewater DT06-3S 3-Position Female Deutsch Connector with Wedge Lock

The Bluewater DT06-3S is a 3-position female connector housing designed for the DT Series, forming a complete 3-cavity connection when paired with a DT04-3P male plug. Built as a Deutsch-compatible, fully interchangeable replacement, this connector delivers the same rugged reliability demanded by marine, automotive, and industrial wiring systems.

Key Features:

• Weather-resistant IP67 rating — silicone rear wire and interface seals protect against extreme moisture and temperature
• 13-amp continuous current rating per pin, accommodating wire sizes 14–20 AWG
• Thermoplastic housing with wide operating temperature range of -55°C to +125°C (-67°F to +257°F)
• Wedge lock included — confirms contact alignment and retention for a secure, vibration-resistant connection
• Corrosion-resistant contacts engineered for long-lasting performance in harsh environments
• Integrated latch for positive mating with the DT04-3P receptacle
• Fully interchangeable with genuine Deutsch DT series parts
• Compatible terminal types: DT Machined 14–16 AWG or DT Crimp Stamped and Formed terminals
• Minimum 100 mating cycles rated; dielectric rating <2 mA at 1500 VAC; insulation resistance 1000 MΩ

The DT06-3S is a go-to solution for dependable 3-circuit electrical connections in demanding applications including marine wiring, powersports, off-road vehicles, and heavy equipment. Its sealed, lockable design ensures connections stay secure and protected even under continuous vibration and exposure to the elements.
