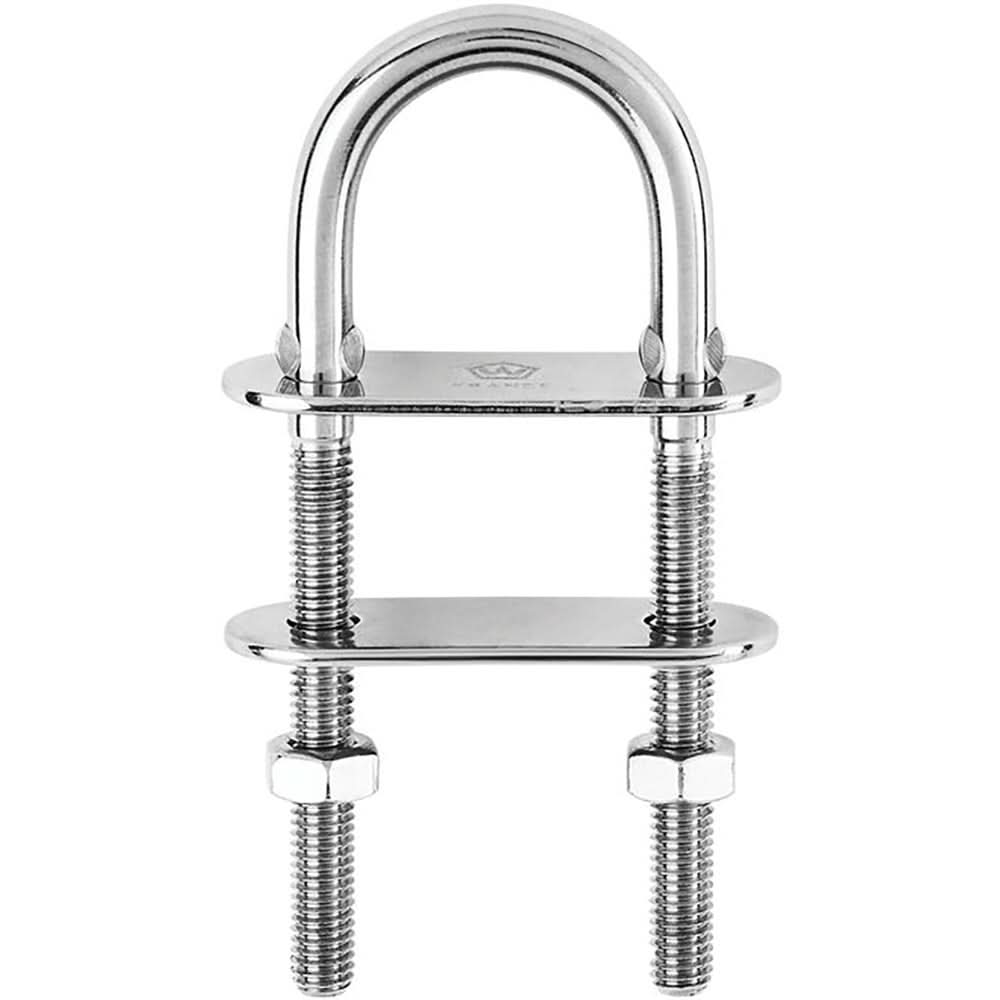

Wichard 6513W U-Bolt Pad Eye 6mm Diameter 70mm Length Stainless Steel Marine

The Wichard 6513W U-Bolt Pad Eye is a fully drop-forged marine fastening hardware component constructed from 316L stainless steel, delivering exceptional strength and corrosion resistance in demanding marine environments. With a 6mm (15/64") bolt diameter and 70mm (2-3/4") length, this compact pad eye is engineered for reliable performance wherever a secure, permanent attachment point is needed aboard a vessel.

Key Features:

• Fully drop-forged 316L stainless steel construction for maximum strength and long-term corrosion resistance
• Working load: 1,280 kg (2,822 lbs) — rated for nautical applications
• Breaking load: 3,000 kg (6,614 lbs) — outstanding load capacity for its size
• Max tightening torque: 7.5 Nm for proper installation
• Versatile fastening solution for shrouds, lifelines, blocks, and deck hardware
• Delivered complete with mounting bolts and counterplate — ready to install

Dimensions:

• Bolt Diameter (D): 6 mm (15/64")
• Overall Length (L): 70 mm (2-3/4")
• A: 32 mm | B: 27 mm | C: 35 mm
• Weight: 60 g (2.1 oz)

Wichard U-bolt pad eyes are the trusted choice of sailors and marine riggers worldwide, providing dependable attachment points for standing rigging, deck fittings, and safety equipment. Each unit ships with all necessary hardware for a clean, secure installation.
