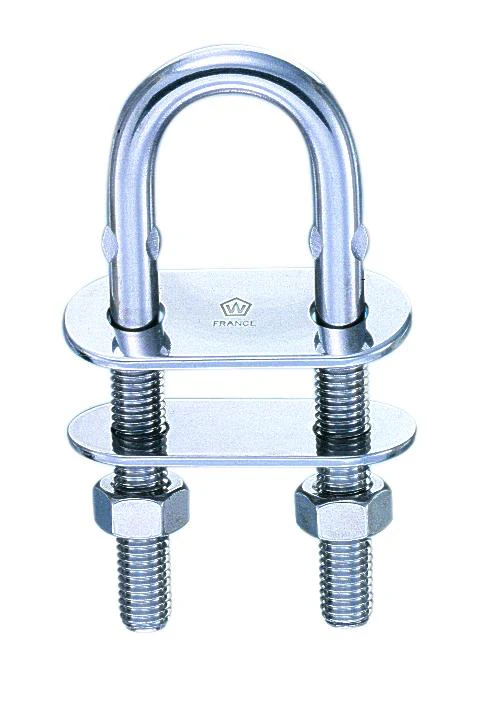

Wichard 6514W U-Bolt Pad Eye 8mm Diameter 80mm Length Stainless Steel

The Wichard 6514W U-Bolt Pad Eye is a precision-engineered marine fastening hardware designed for demanding rigging and deck applications. Constructed from Grade 316L stainless steel using a fully drop-forged manufacturing process, this U-bolt pad eye delivers exceptional strength, corrosion resistance, and long-term durability in saltwater environments.

Key Features:

• Material: Grade 316L stainless steel — fully drop forged for superior grain structure and strength
• Wire/Rod Diameter: 8mm (5/16")
• Overall Length: 80mm (3-5/32")
• Inner Width (A): 36mm (1-27/64")
• Inner Depth (B): 30mm (1-3/16")
• Base/Plate Width (C): 40mm (1-9/16")
• Working Load: 5,291 lbs (2,400 kg)
• Breaking Load: 10,580 lbs (4,800 kg)
• Max Tightening Torque: 2.3 Nm
• Delivered complete with mounting bolts and counter-plate
• Suitable for any fastening application including shrouds, lifelines, and blocks

The Wichard 6514W is ideal for securing rigging components, lifelines, and other hardware to a vessel's deck or structure, providing a strong and dependable attachment point. Its drop-forged 316L stainless steel construction ensures outstanding working and breaking loads, making it a trusted choice for sailors and marine professionals worldwide.
