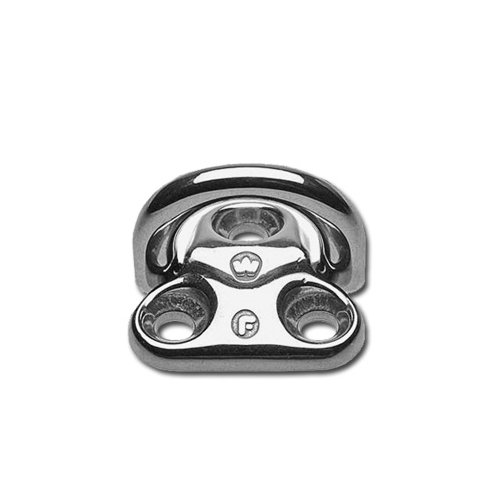

Wichard 6605W Folding Pad Eye 5/16" 316L Stainless Steel Marine Padeye

The Wichard 6605W Folding Pad Eye is a patented, fully drop-forged marine-grade padeye designed for a wide range of on-deck fastening applications. With a 5/16" (8 mm) diameter pin and a modern low-profile design, it delivers exceptional holding power while keeping your deck clean and snag-free when not in use.

Key Features:

• Outstanding Load Capacity: Working load of 5,290 lb (2,400 kg) and breaking load of 11,020 lb (5,000 kg), maintained at any load angle
• Fully Drop-Forged Construction: Hot-forged from Grade 316L stainless steel and 17.4 PH high-strength stainless steel for maximum corrosion resistance and durability
• Folding Design: Folds flat when not in use to minimize injury risk and reduce deck clutter — ideal for performance sailing applications
• Silicone Base Pad: Integrated silicone pad isolates the fitting from the deck surface, eliminating noise and vibration
• Modern Optimized Design: Low-profile aesthetics suit contemporary boat deck hardware
• Versatile Fastening: Ideal for stays, shrouds, blocks, jib tack points, lifelines, tethers, jacklines, and more

Specifications:

• Pin Diameter (d): 8 mm (5/16 in)
• Hole Diameter (D): 8 mm (5/16 in)
• Dimension A: 57 mm (2-1/4 in)
• Dimension B: 35 mm (1-3/8 in)
• Dimension C: 18 mm (45/64 in)
• Dimension D: 59 mm (2-21/64 in)
• Dimension E: 51 mm (2-1/64 in)
• Dimension F: 35 mm (1-3/8 in)
• Working Load: 5,290 lb (2,400 kg)
• Breaking Load: 11,020 lb (5,000 kg)
• Weight: 165 g (0.36 lb)
• Material: 316L Stainless Steel / 17.4 PH HR Stainless Steel

The Wichard 6605W is a trusted choice for offshore sailors and marine riggers who demand certified strength, corrosion resistance, and a clean deck profile in a single compact fitting.
