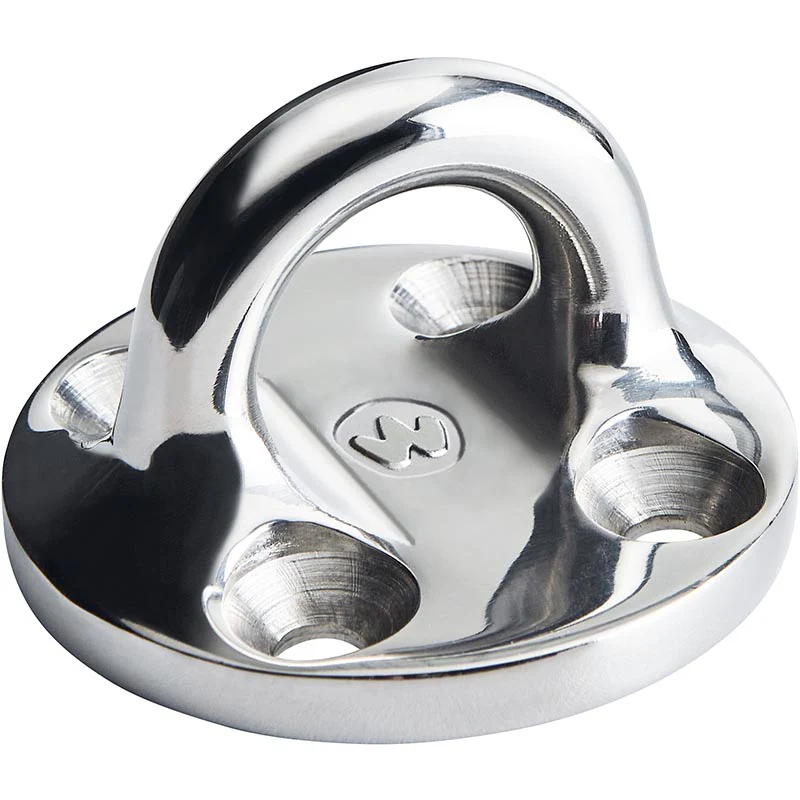

Wichard 6635W Fixed Round Pad Eye - 57mm (2-1/4") Duplex Stainless Steel

The Wichard 6635W is a heavy-duty fixed round pad eye with a 57mm (2-1/4") outer diameter, constructed from duplex stainless steel for an outstanding balance of mechanical strength and corrosion resistance. Designed as part of Wichard's comprehensive range of fixed pad eyes, this versatile fitting is suited to virtually any on-board anchoring or fastening application.

Key Features:

• Duplex stainless steel construction — provides excellent corrosion resistance combined with superior mechanical strength
• 57mm (2-1/4") outer diameter round hoop profile — ideal for use with textile and rope fasteners
• M6 screw mounting — compatible with standard M6 fasteners for secure deck installation
• High working load capacity — 2,300 kg (5,071 lbs) at 90°; 2,050 kg (4,519 lbs) at 45°; 1,950 kg (4,299 lbs) at 0°
• Breaking load — 4,550 kg (10,031 lbs) at 90°; 4,100 kg (9,039 lbs) at 45°; 3,900 kg (8,598 lbs) at 0°
• Completes Wichard's full range of fixed pad eye sizes (57mm, 76mm, 95mm available)

Typical Applications:

• Reefing blocks and reefing lines
• Fastening points on bowsprits
• Pulley and block attachment points
• Running backstay securing points

Dimensions:

• Outer Diameter (OD): 57mm
• B: 27mm | D: 30mm | E: 19mm | F: 22mm
• Screw size: M6
• Weight: 150g (0.331 lbs)

Wichard has been engineering precision marine hardware for over 40 years, collaborating with world-class offshore sailors to develop dependable deck fittings trusted on vessels of all sizes worldwide. The 6635W round pad eye meets Wichard's demanding internal quality and safety standards.
