Wichard 6655W Diamond Pad Eye Square Screw Duplex Stainless Steel - 79mm 3-7/64 M6

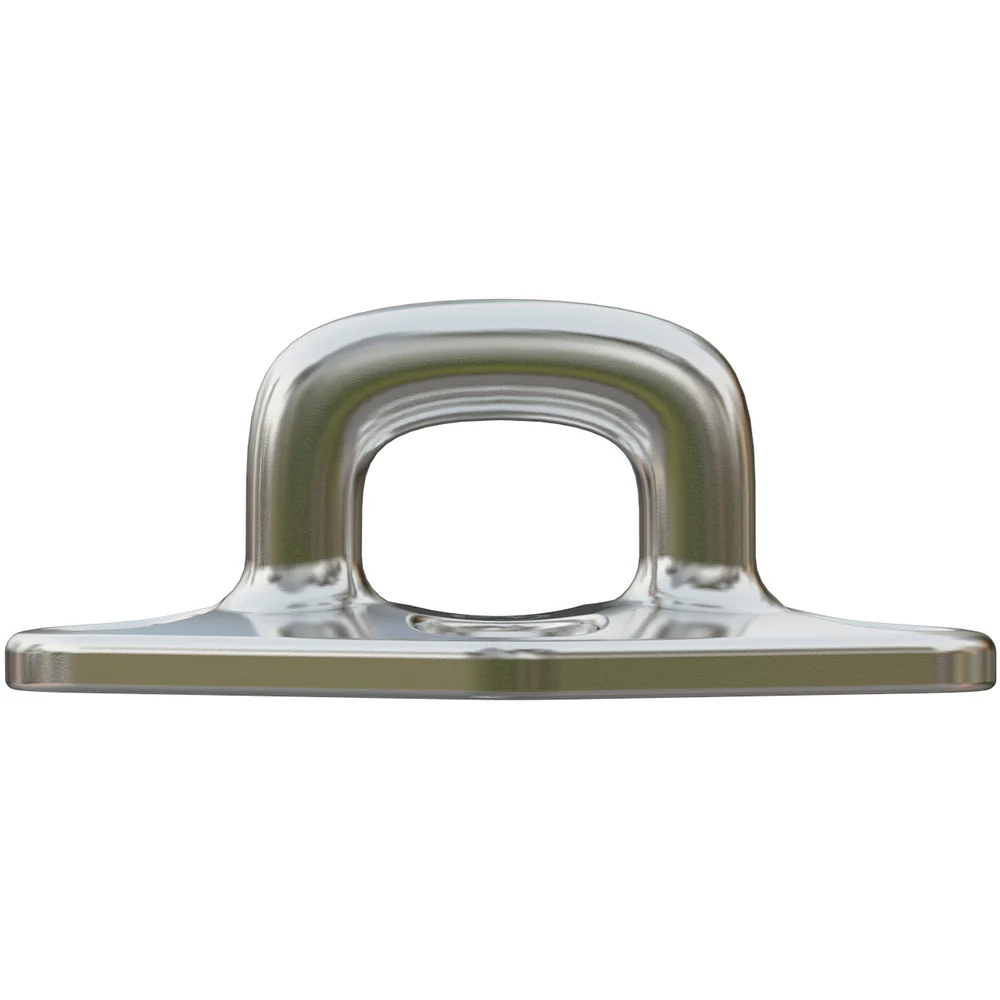

The Wichard 6655W Diamond Pad Eye is a square-profile fixed pad eye precision-engineered from duplex stainless steel, delivering an exceptional balance of mechanical strength and corrosion resistance. With a 79mm (3-7/64") overall length and designed for use with an M6 fastener, this pad eye is a trusted solution for demanding marine rigging and deck hardware applications.

Wichard's diamond pad eyes are optimized for both size and load performance, making them ideal where space is limited but reliable holding power is required. The duplex stainless steel construction provides superior resistance to saltwater corrosion while maintaining the high tensile strength needed for safety-critical rigging applications.

Key Features:

• Constructed from duplex stainless steel for outstanding mechanical-to-corrosion resistance ratio
• Square diamond profile with optimized dimensions for compact installation
• Designed for use with an M6 screw
• Working load: 5,950 lb (2,700 kg)
• Breaking load: 16,093 lb (7,300 kg)
• Multi-angle load ratings: 6,393 lb at 90°, 5,732 lb at 45°, 5,291 lb at 0°

Dimensions:

• A (Length): 3-7/64" (79 mm)
• B: 2-23/64" (60 mm)
• C: 1-31/32" (50 mm)
• D: 1-17/64" (32 mm)

Common Applications:

• Mast foot blocks
• Reefing blocks
• Deck and cabin hardware fastenings
• General marine rigging attachment points

The Wichard 6655W is part of Wichard Marine's renowned fixed pad eye lineup, trusted by sailors and marine professionals worldwide for quality and long-term reliability.
