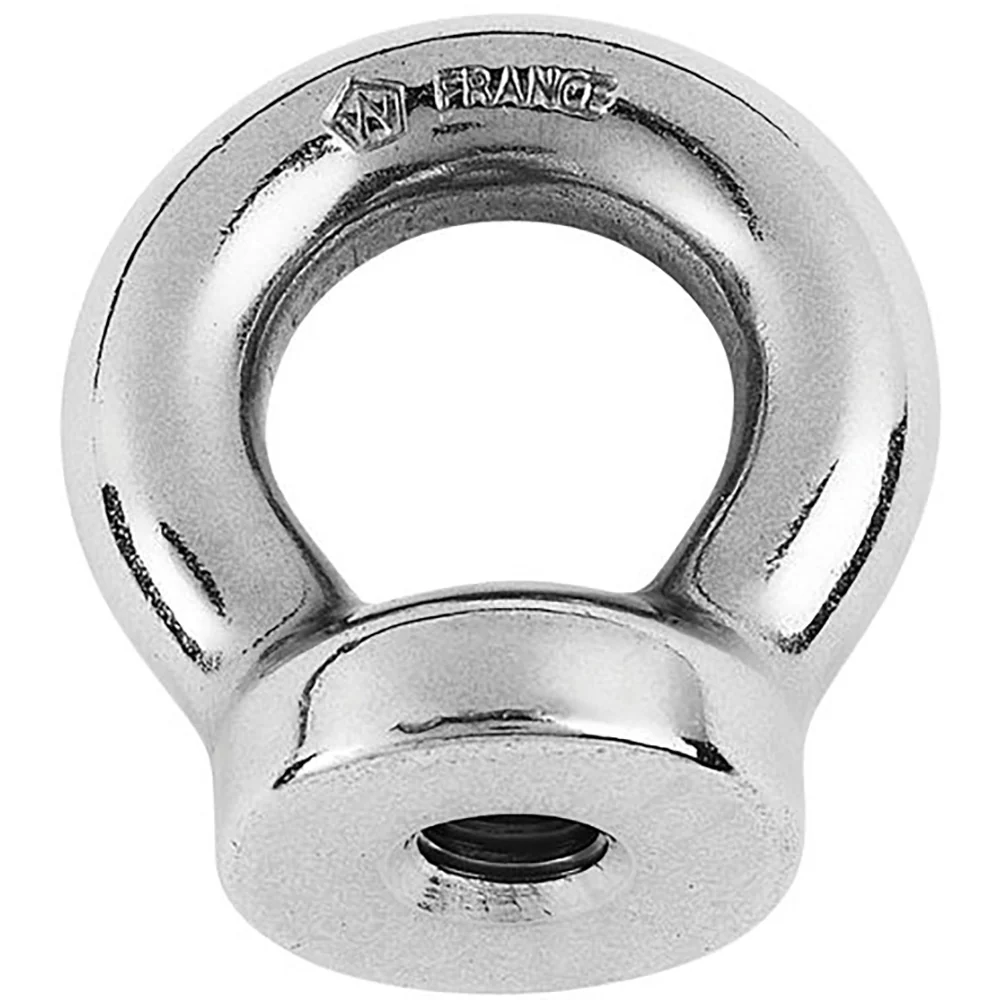

Wichard 6355W 10mm Eye Nut M10 x 150mm 316L Stainless Steel Forged

The Wichard 6355W is a single-piece forged 10mm eye nut with an M10 x 150mm thread, engineered for demanding fastening applications in marine, towing, and industrial environments. Constructed from 316L stainless steel, this eye nut delivers exceptional corrosion resistance and structural integrity wherever reliable load-bearing connections are required.

Key Features:

• Single-piece drop-forged construction for maximum strength and safety
• 316L stainless steel for superior corrosion resistance in marine and harsh environments
• Breaking load: 10,580 lbs (4,800 kg)
• Available across a full range of sizes to suit a variety of fastening requirements
• Outstanding breaking loads with a safety factor of 5× the breaking load for industrial applications (WLL)

Specifications:

• Thread (A): M10 x 150mm
• Eye Inner Width (B): 22mm (55/64")
• Overall Length (C): 46mm (1-13/16")
• Pin/Shank Diameter (D): 10mm (25/64")
• Overall Width (E): 28mm (1-7/64")
• Weight: 99g (0.218 lbs)

Common Applications:

• Various marine and general fastening applications
• Towing attachments
• Waterskiing line attachment points
• Road signs, transport, and vehicle fittings
• Sport equipment rigging

Note: Final breaking load is also determined by the strength and integrity of the attached stud. Working Load Limit (WLL) is calculated as the breaking load divided by a safety factor of 5, and applies to industrial applications only.
