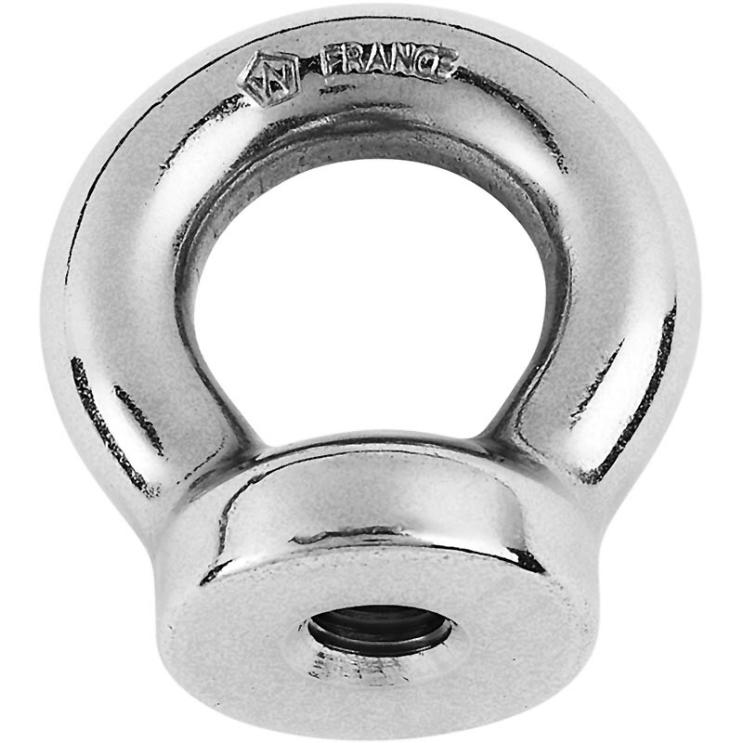

Wichard 6356W 10mm Forged Eye Nut Thread M12 x 175mm

The Wichard 6356W is a drop-forged 316L stainless steel eye nut featuring a 10mm eye diameter and an M12 x 1.75mm metric thread pitch. Manufactured as a single-piece forged component, this eye nut delivers exceptional strength and reliability for demanding marine, rigging, and industrial fastening applications.

Key Features:

• Single-piece drop-forged construction for maximum structural integrity and outstanding breaking loads
• 316L marine-grade stainless steel for superior corrosion resistance in saltwater and harsh environments
• Breaking load: 5,200 kg (11,464 lbs) — rated for heavy-duty use
• Thread: M12 x 175mm metric standard
• Eye diameter: 10mm (D dimension)
• Body width (B): 22mm | Overall length (C): 46mm | Eye inner span (E): 28mm
• Weight: 95g (0.21 lbs)
• Available as part of Wichard's complete range of metric eye nut sizes

Typical Applications:

• Marine and sailboat rigging fastening points
• Pulley and block attachment
• Towing and waterskiing line attachments
• Boom brake and clew point hardware
• Industrial handling, transport, and structural fastenings

For industrial applications, the Working Load Limit (WLL) is calculated at one-fifth of the breaking load (safety factor of 5). This eye nut is part of Wichard's comprehensive forged fastening range, which spans from M6 to M16 thread sizes to suit a variety of rigging and hardware needs.
