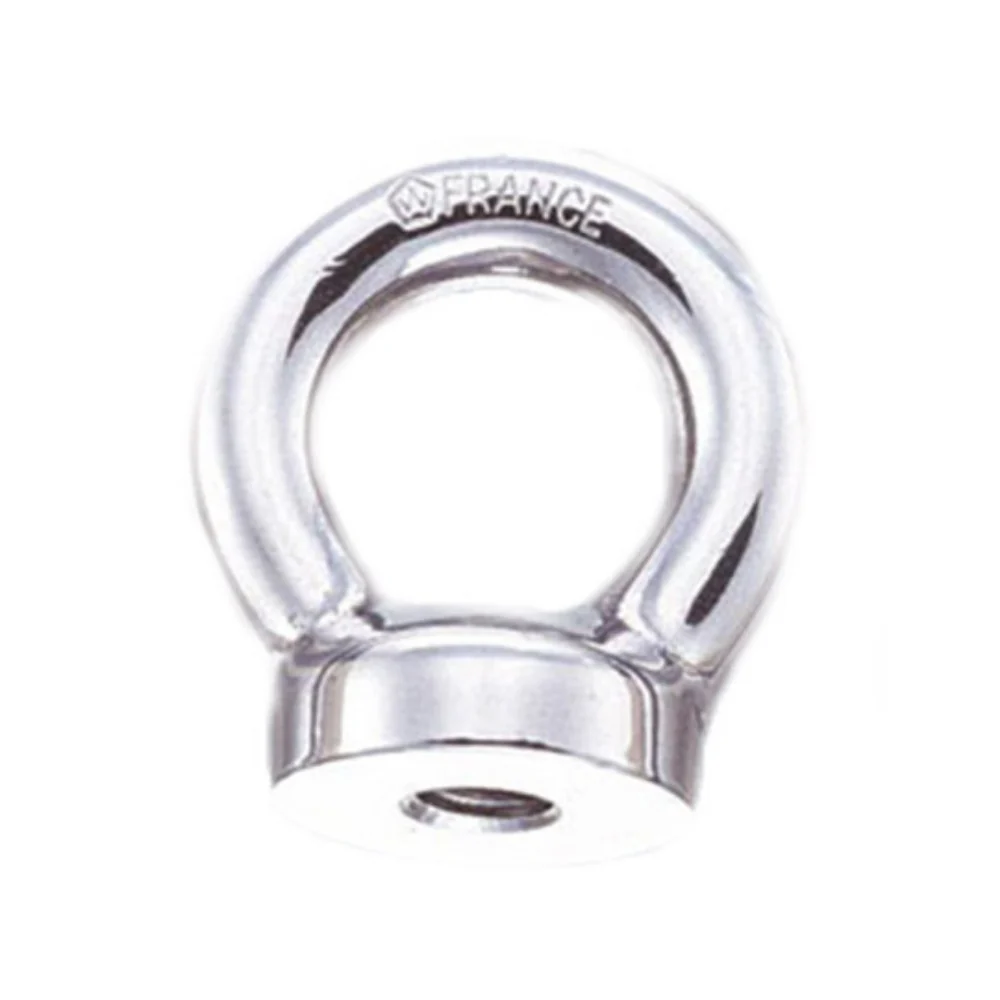

Wichard 6366W 12mm Forged Stainless Steel Eye Nut M12 x 175mm Thread

The Wichard 6366W is a 12mm forged stainless steel eye nut featuring an M12 × 175mm thread. Single-piece drop-forged construction from 316L marine-grade stainless steel delivers an exceptional breaking load of 15,430 lbs (7,000 kg), making this eye nut a reliable choice for demanding marine fastening applications.

Key Features:

• Single-piece forged design — no welds or joints for maximum structural integrity
• 316L stainless steel — superior corrosion resistance for saltwater and offshore environments
• Breaking load: 15,430 lbs (7,000 kg)
• Thread size: M12 × 175mm
• Inside eye diameter (B): 1-1/16 in (27 mm)
• Overall length (C): 2-13/64 in (56 mm)
• Eye diameter (D): 15/32 in (12 mm)
• Shank length (E): 1-11/32 in (34 mm)
• Weight: 0.386 lbs (175 g)

Common Applications:

• Marine and sailboat rigging fastenings
• Towing and recovery attachment points
• Waterskiing line attachments
• General deck and structural fastening

Part of Wichard's comprehensive range of forged fastening hardware, the 6366W meets the high safety standards expected in marine and offshore environments. Also referenced as Wichard part #6366.
