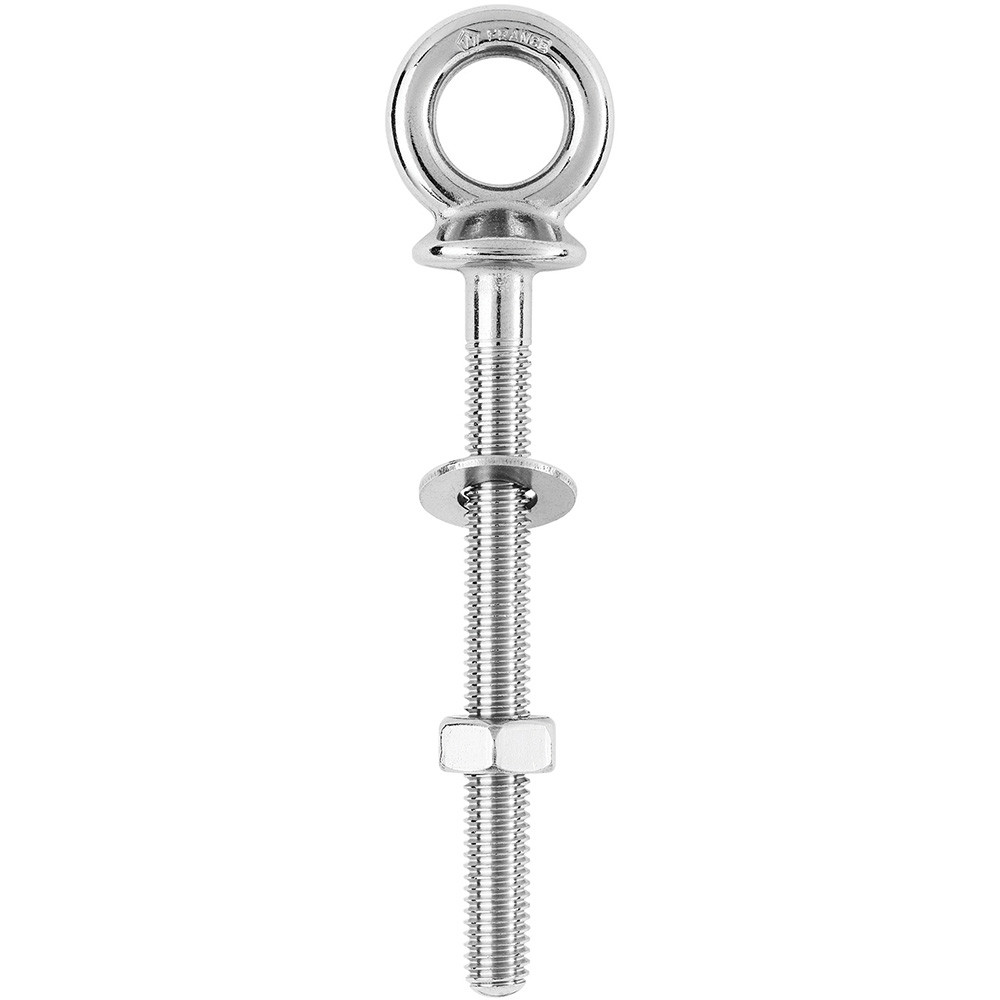

Wichard 6490W Stainless Steel Eye Bolt M6x100 15/32" Diameter

The Wichard 6490W is a single-piece forged 316L stainless steel eye bolt designed for demanding marine and industrial fastening applications. With an M6x100 thread, a 15/32" eye diameter, and an overall length of 1-9/16", this compact yet robust eye bolt delivers exceptional load performance in a corrosion-resistant package.

Key Features:

• Single-piece forged construction — no welds or joints for maximum structural integrity
• 316L stainless steel — superior corrosion resistance for marine and outdoor environments
• High working load: 1,230 lb (560 kg)
• High breaking load: 1,980 lb (900 kg)
• Max tightening torque: 7.5 Nm
• Available in a complete range of sizes to suit various fastening needs

Applications:

• General marine and industrial fastening
• Towing applications
• Waterskiing line attachment

Dimensional Specifications:

• Thread: M6 x 100
• Eye Diameter (B): 15/32"
• Eye Inner Width (C): 63/64"
• Pin Diameter (D): 13/64"
• Eye Height (E): 43/64"
• Overall Length (F): 1-37/64"
• Shank Length (G): 1-11/32"
• Weight: 0.053 lb (24 g)

The Wichard 6490W is part of Wichard's trusted line of precision-forged marine hardware, built to meet the rigorous demands of boating, sailing, and watersports applications.
