Quicksilver 6315002TP Bravo SmartCraft Transom Assembly for MerCruiser 496

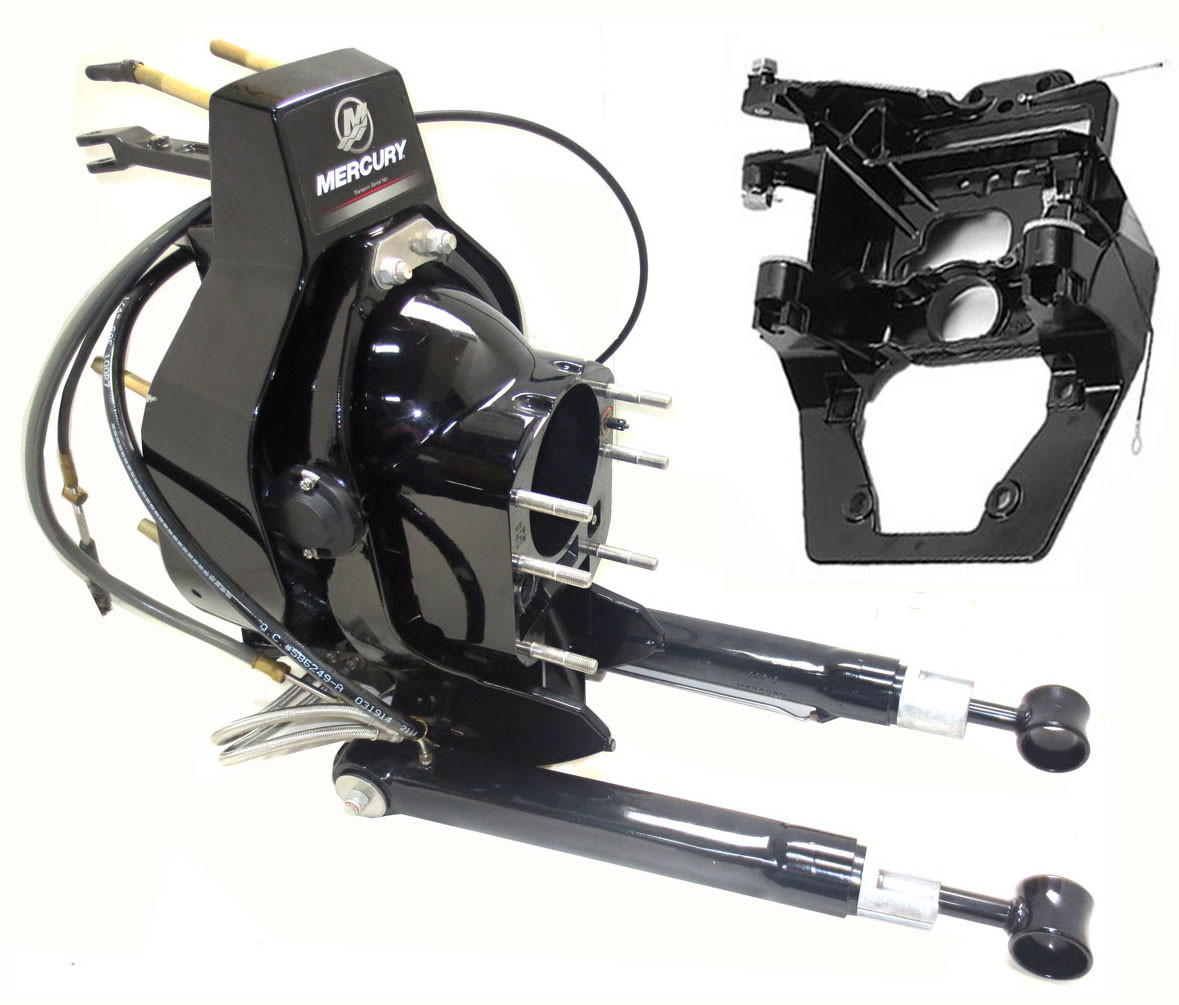

The Quicksilver 6315002TP is a genuine OEM complete transom assembly (gimbal housing) designed specifically for MerCruiser Bravo 1, Bravo 2, and Bravo 3 sterndrive outdrives with SmartCraft digital gauges. This assembly is engineered for use with MerCruiser 496 and 496 HO marine engines, providing the critical interface between your boat's transom and sterndrive system.

Complete Assembly Includes:

• Outer transom plate with gimbal housing
• Inner transom plate with mounting hardware
• Port and starboard trim cylinders (trim rams)
• Trim cylinder hydraulic hoses
• SmartCraft trim/tilt sensors and sending units
• Shift cable
• Gimbal bearing
• U-joint bellows and exhaust bellows
• Steering lever
• Anodes and MerCathode corrosion protection
• Installation template and complete mounting hardware

Key Features:

• Genuine Mercury Marine OEM part quality and precision engineering
• Integrated SmartCraft sensors for digital gauge compatibility
• 3-year corrosion protection warranty
• Complete ready-to-install assembly with all necessary components
• Compatible with Bravo 1, Bravo 2, and Bravo 3 outdrives

The transom assembly serves as the most critical component of your sterndrive system, sealing water from entering the boat while managing cooling water delivery, steering control, exhaust routing, engine mounting, and the trim system. This complete kit arrives ready to mount, eliminating the need to source individual components. Note that serialized items such as transom assemblies must be installed by an authorized dealer for warranty validation.
