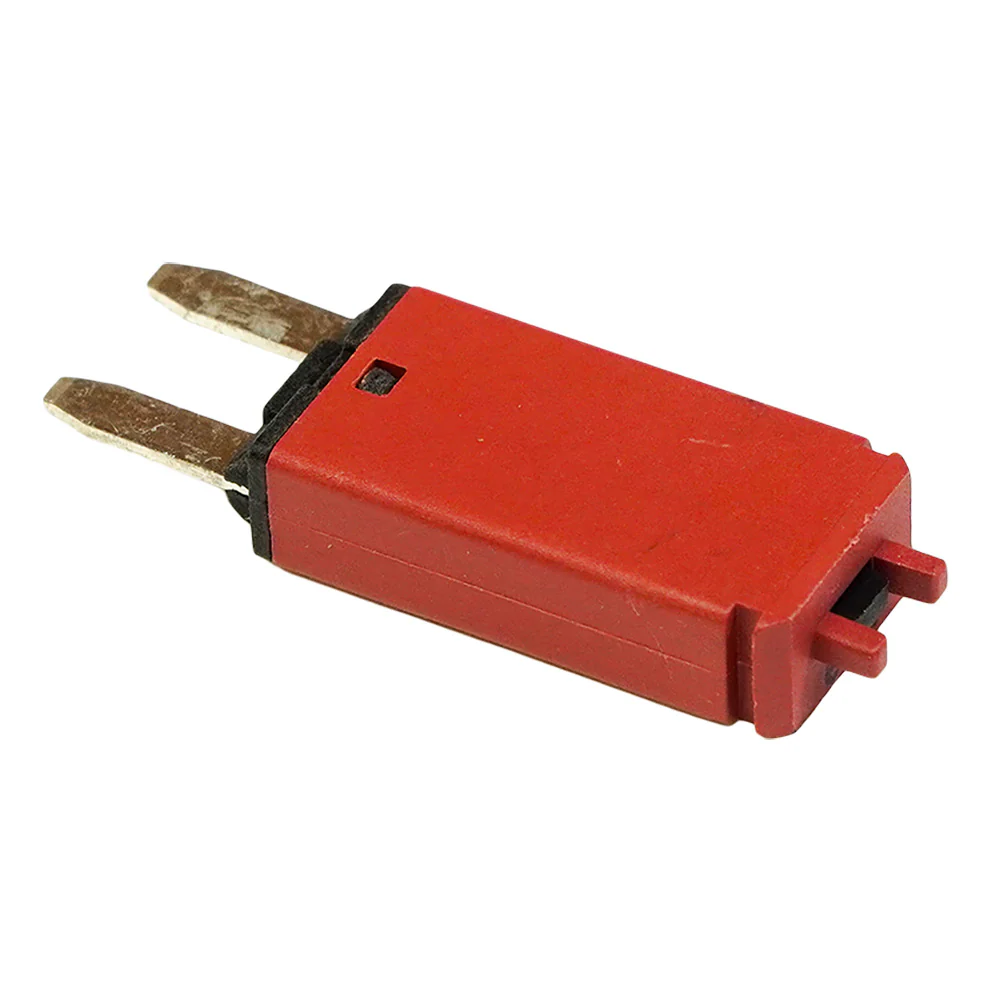

Egis Mobile Electric 472010 10 Amp Circuit Breaker Red Manual Reset

The Egis Mobile Electric 472010 is a 10 Amp ATM/MINI Type 3 resettable circuit breaker designed for compact, reliable overcurrent protection in mobile electrical systems. Its extremely small footprint makes it ideal for installations where panel space is limited, without sacrificing performance or durability.

Rated at 32V DC maximum, this circuit breaker supports both 12V and 24V DC electrical systems. The manual push-to-reset (Type 3) operation allows the user to safely re-close the circuit breaker after any potential fault has been investigated and cleared, preventing accidental re-energizing of a faulted circuit.

Built to withstand demanding environments, the 472010 features a high-temperature rated enclosure and tin-plated copper alloy conductors for long-term reliability in marine, automotive, RV, and powersports applications. The red color-coded housing designates the 10A continuous current rating, helping technicians avoid installation errors and simplify correct replacements in the field.

Key Features:

• Extremely compact design minimizes panel space requirements
• 32V DC maximum voltage rating — compatible with 12V and 24V systems
• Manual push-to-reset Type 3 operation for safe fault recovery
• Red color-coded enclosure identifies 10 Amp continuous current rating
• High-temperature materials and tin-plated copper alloy conductors for harsh environments
• Supports ABYC compliant systems when used for branch circuit distribution

The Egis Mobile Electric 472010 is an excellent resettable fuse alternative for marine panels, RV distribution systems, and mobile electrical installations requiring dependable, compact circuit protection.
