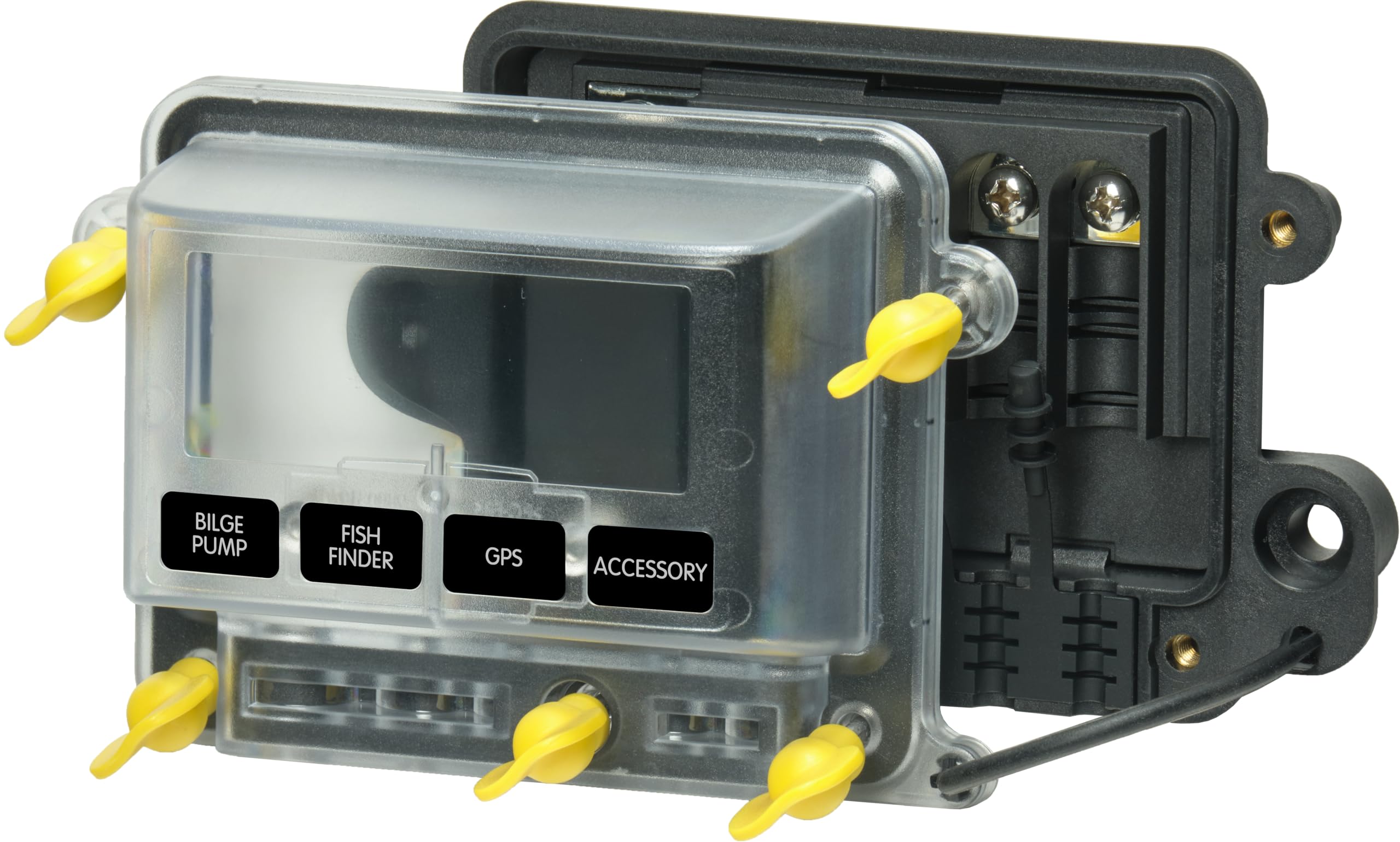

Blue Sea Systems 2356-BSS Water-Resistant BusBar 100A 4 Gang with Cover

The Blue Sea Systems 2356 Water-Resistant BusBar provides secure water-resistant bussing for harsh marine, RV, and automotive environments. The single side nesting design allows for wire entry from one side to maximize space, making it ideal for tight installations.

Key Features:

• Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
• Continuous rating of 100A AC/100A DC at maximum voltage of 300V AC/48V DC
• Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
• Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
• Constructed with tin-plated copper C11000 bus material for excellent corrosion resistance
• Insulating cover meets ABYC/USCG insulation requirements
• Includes four write-on circuit labels for easy circuit identification

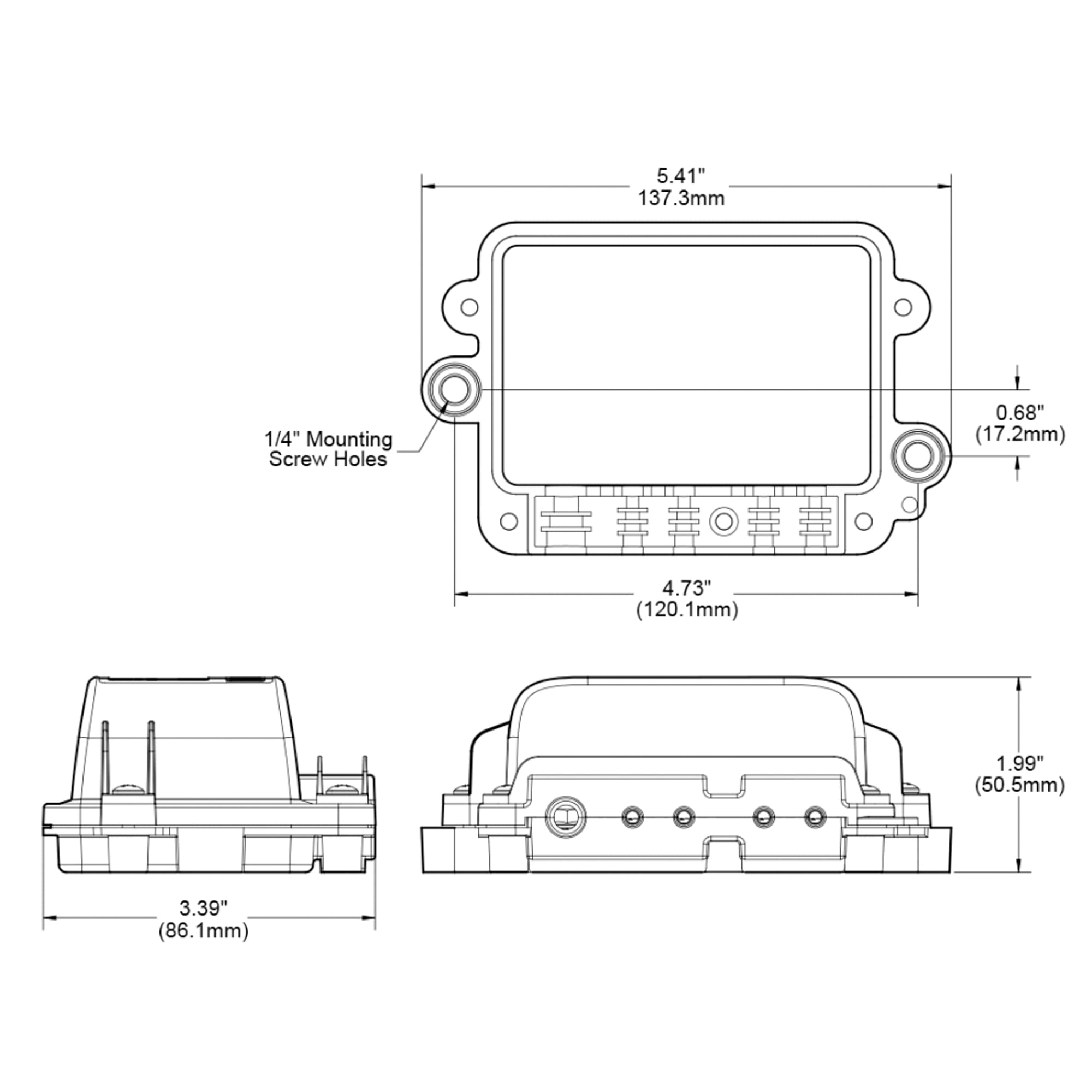

Specifications:

• Terminal Configuration: 4 x #8-32 screws plus 1 x #10-32 stud
• Wire Size: (1) 8 AWG to 4 AWG input / (4) 16 AWG to 10 AWG load
• Mounting: Accepts 1/4" (6mm) screws
• IP66 rated protection against powerful water jets

Ideal for positive distribution and for the collection of negative or AC ground circuits, this busbar is perfect for consolidating electrical connections in boats, RVs, and other harsh environment applications.
