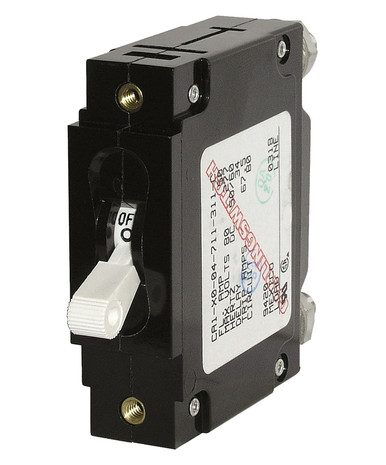

Blue Sea Systems 7351-BSS C-Series Single Pole Toggle Circuit Breaker 10 Amp White

The Blue Sea Systems 7351 C-Series White Toggle Circuit Breaker is a single pole, 10 amp magnetic hydraulic circuit breaker designed for marine and RV electrical systems. This versatile device combines both switching and overcurrent protection in one compact unit, providing reliable protection for inverters, bow thrusters, windlasses, and other electrical equipment.

Key Features:

• Magnetic hydraulic design with trip-free operation prevents breaker from being held closed during fault conditions
• Rated for 10A AC and 10A DC applications
• Maximum voltage capacity: 240V AC, 80V DC
• High interrupt capacity: 5,000A at 125V/240V AC, 10,000A at 80V DC
• White toggle actuator for easy on/off switching
• 1/4-20 tin-plated brass terminal studs with 35 in-lb torque specification
• Wide operating temperature range: -40°C to 85°C
• Rated for 10,000 switching cycles
• #6-32 stainless steel mounting screws included

The magnetic-hydraulic delay trip mechanism allows for brief start-up current surges without nuisance tripping, making it ideal for motors and other inductive loads. The trip-free design ensures safety by preventing manual override during overcurrent conditions. Built to Blue Sea Systems' exacting standards for marine applications.
