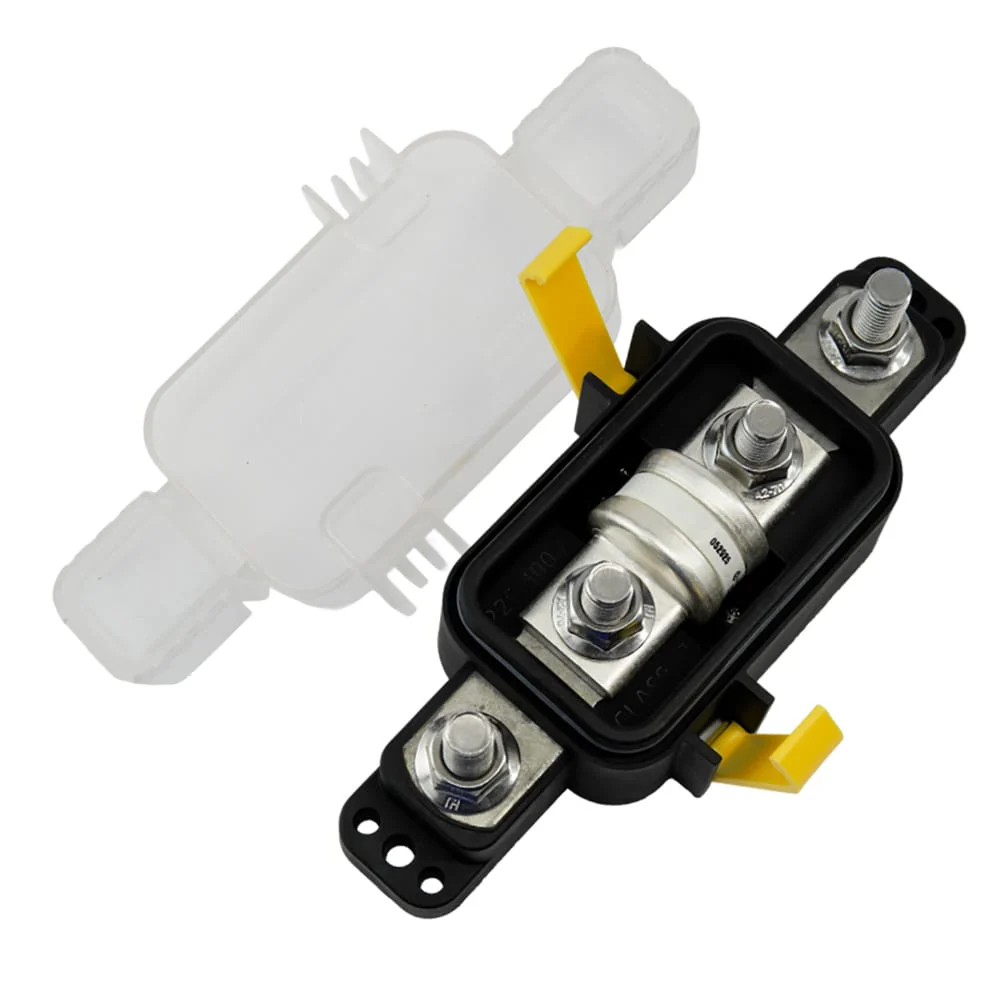

The Egis Mobile Electric 3912 is a sealed Class T fuse block rated for 225–400 amps, engineered for high-current DC electrical systems in marine, RV, and powersports applications. Separate stud connections for cable mounting allow heavier gauge cables and their terminals to feed in and out of the fuse independently, rather than terminating directly on the fuse tab itself — enabling cleaner, more reliable high-amperage wiring.
Built for the harshest environments, the 3912 carries a triple ingress protection rating of IP66, IP67, and IP6K9K, providing comprehensive defense against water, dust, and chemicals. It is also fully ignition protected, making it safe for installation in potentially hazardous gaseous environments including LPG and gasoline-powered vessels.
Key Features:
- Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop
- Stainless steel self-locking hardware ensures robust, long-term connection reliability
- Glass-filled nylon construction provides exceptional durability in demanding environments
- Transparent polycarbonate cover with break-away tabs for easy cable and terminal access
- Secure panel mounting via 4x #10 (M5) and 2x 1/4" (M6) mounting holes
- Operating temperature range: -40°C to 125°C
- Mounting screw max torque: 50 in-lbs (5.5 N·m)
- Backed by a 4-year warranty
Specifications:
- Maximum Amperage: 225–400A
- Maximum Voltage: 80V DC
- Ingress Protection: IP66, IP67, IP6K9K
- Busbar Material: Tin-Plated Copper
- Cover Material: Clear Polycarbonate
- Base Material: Nylon 6, 30% Glass-Filled
- Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
The Egis Mobile Electric 3912 Class T fuse block is ideal for protecting inverters, high-current battery circuits, and shore power connections where fast-blow fuse protection and a sealed, ignition-protected housing are required. Note: Class T fuse sold separately.
