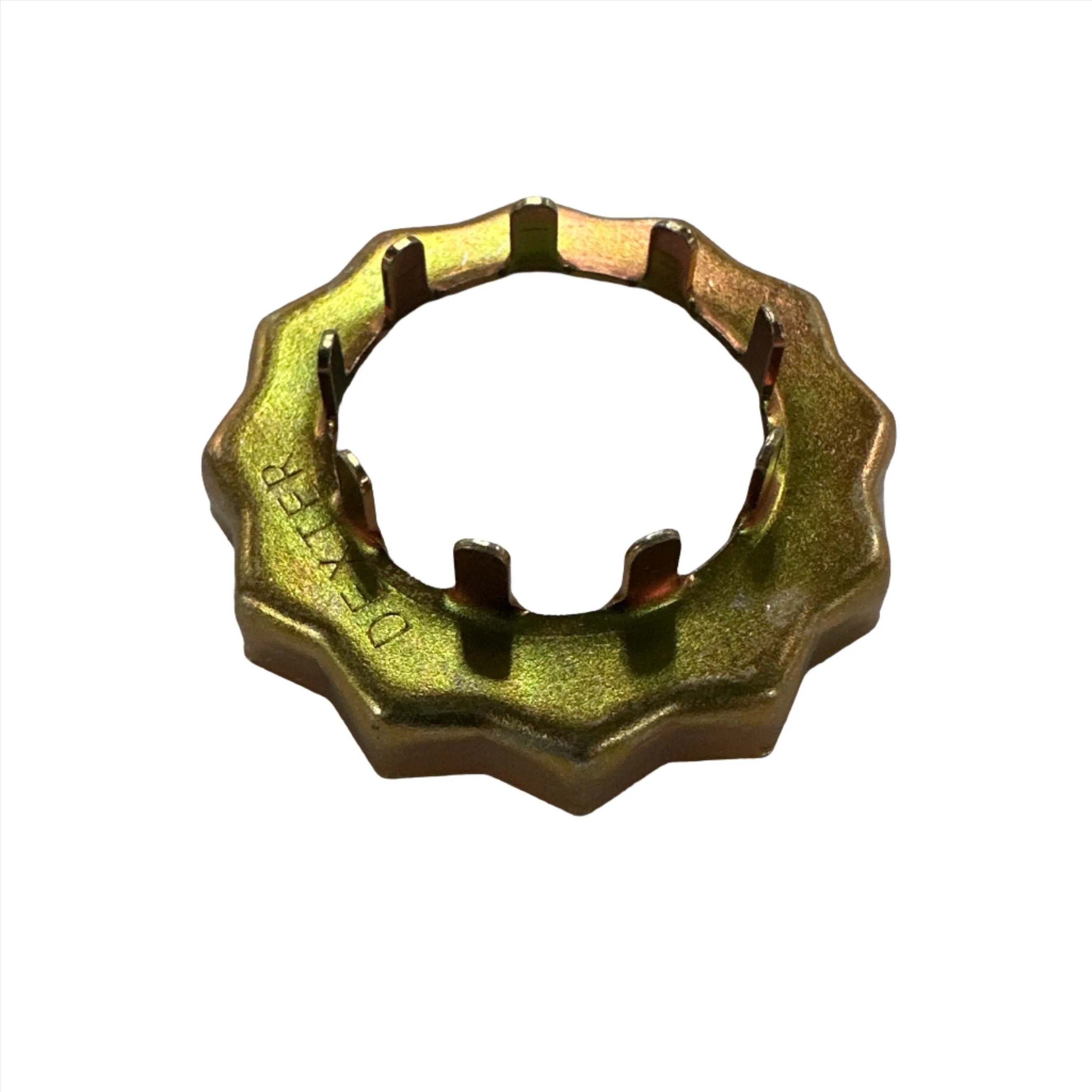

Dexter Axle 006-320-00 Castellated Spindle Nut Retainer with Cotter Pin for 1" D-Flat Spindles

The Dexter Axle 006-320-00 is a castellated spindle nut retainer designed for Dexter trailer axles featuring a 1-inch D-Flat spindle end. This retainer is a key component of Dexter's updated D-Flat spindle cotter pin retention system, working in conjunction with the Dexter 006-191-00 hex spindle nut and a cotter pin (sold separately, Dexter P/N 019-022-00) to securely lock the spindle nut in place and prevent bearing looseness during operation.

The castellated design features precision-machined slots that accept a cotter pin, which engages the notches in the nut to prevent rotation and keep the nut properly positioned. This system delivers consistent, reliable bearing preload adjustment critical to safe trailer operation on the road.

Key Features:

• Fits Dexter 2,000 lb. to 8,000 lb. trailer axles with 1-inch D-Flat spindle ends
• Castellated retainer design used with a cotter pin for positive nut retention
• Part of Dexter's D-Flat spindle cotter pin retention system (Sprung and Torflex axles)
• Designed for use with Dexter 006-191-00 hex spindle jam nut
• Manufactured by Dexter Axle, a leading trailer component brand with ISO 9001 certification
• Compatible with Dexter #8 and #9 Torflex axles and all Dexter sprung axles up to 8,000 lbs.

The 006-320-00 retainer is an essential service part for maintaining the integrity of wheel hub assemblies on Dexter-equipped trailers. Always use with a proper cotter pin (P/N 019-022-00) and the matching Dexter 006-191-00 spindle nut. Cross-reference: replaces or supplements the 006-190-00 nut retainer in the updated cotter pin system.
