AIMS Power EMS18A Energy Management Switch 18A 120VAC Single Circuit Load Manager

The AIMS Power EMS18A Energy Management Switch is a cost-effective power management solution designed for applications where two loads share a single 20A branch circuit powered by an inverter, shore power, or generator. By intelligently monitoring and managing current draw, the EMS prevents nuisance circuit breaker trips without requiring costly electrical upgrades.

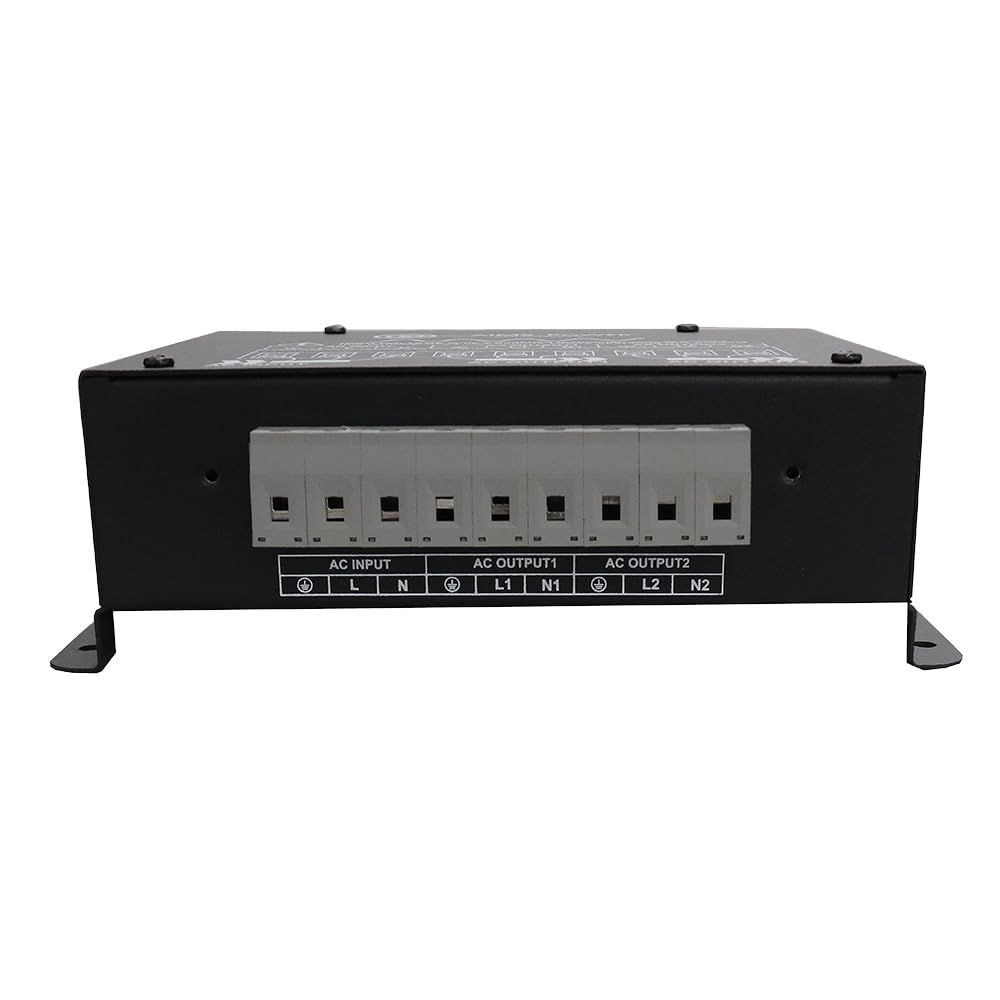

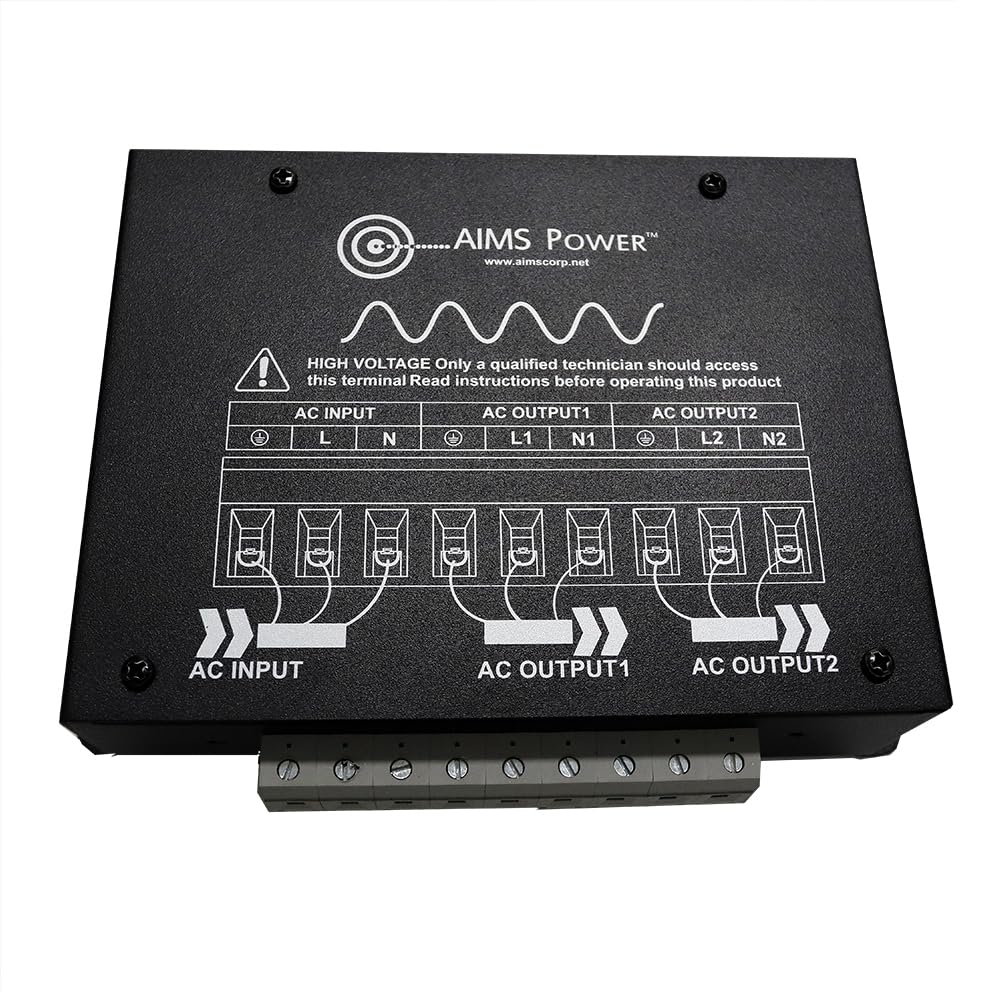

The EMS features one input and two outputs. The primary (priority) load is wired to Circuit A and remains powered at all times. The secondary load is wired to Circuit B and is automatically shed when total current demand approaches the circuit limit. Once consumption drops back below the preset threshold of approximately 5A, power to the secondary load is automatically restored — no manual intervention required.

Key Features:

• Automatically manages two loads on a single 20A branch circuit
• Cuts power to secondary load when total current exceeds ~18A AC, preventing breaker trips
• Automatically restores secondary load when current drops below ~5A
• User-defined primary and secondary load assignments via wiring

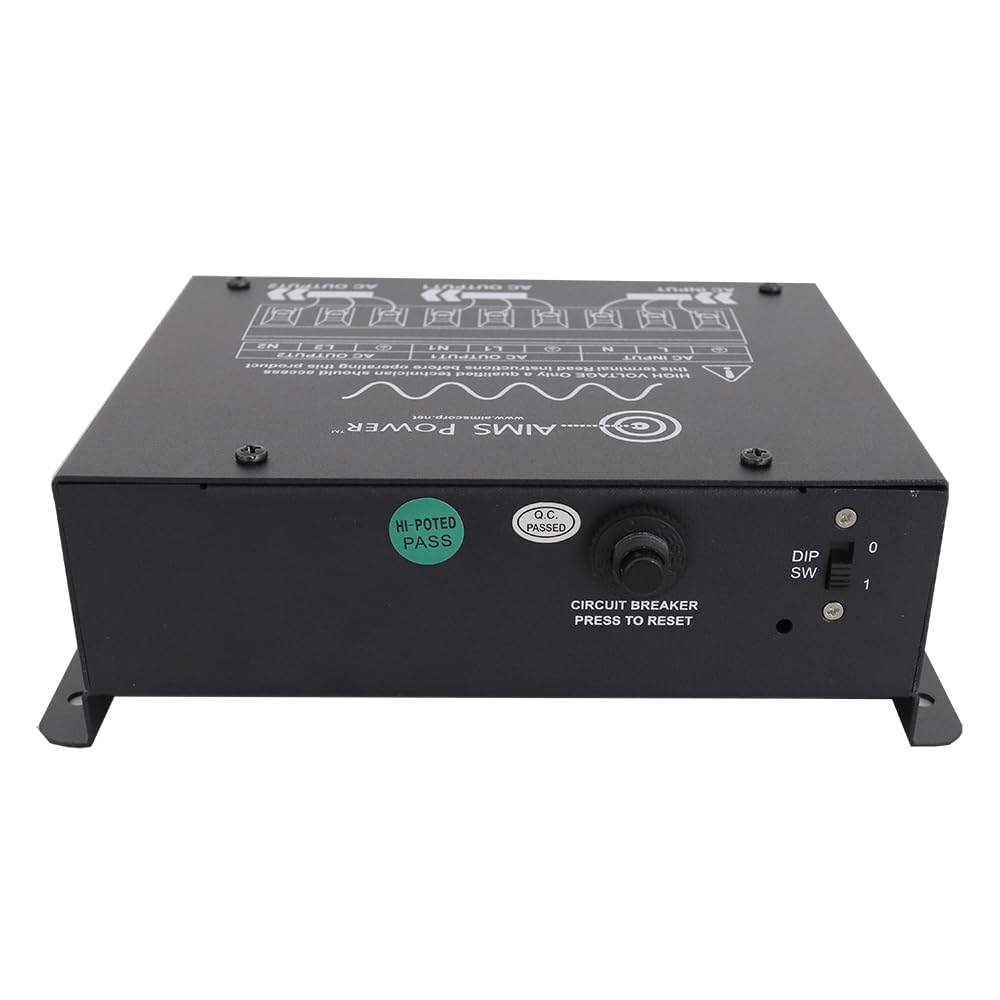

• Dip switch to control restore delay timing
• 120 VAC input/output at 50/60 Hz
• Maximum input/output current: 18A
• Recommended wire gauge: 12 AWG minimum, 8 AWG maximum

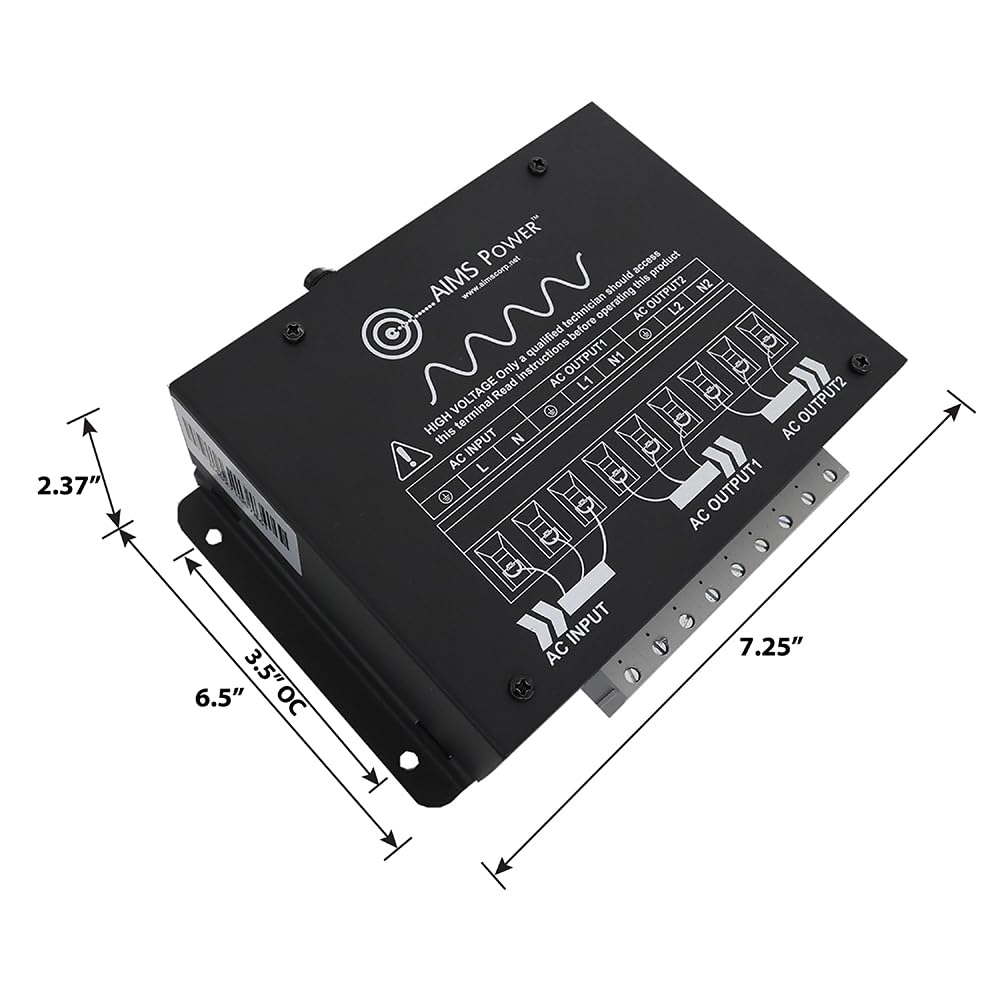

• Mounting holes center-to-center: 3.5 inches
• Compact and lightweight at 2 lbs.
• 1-year manufacturer warranty

Ideal for RVs, boats, off-grid cabins, work trucks, vans, and any setting where mid- to large-sized appliances share a single circuit and risk tripping a breaker if they cycle on simultaneously. Installation should be performed by a qualified technician; all wiring must comply with local, national, and regional electrical codes. Use copper conductors only.
