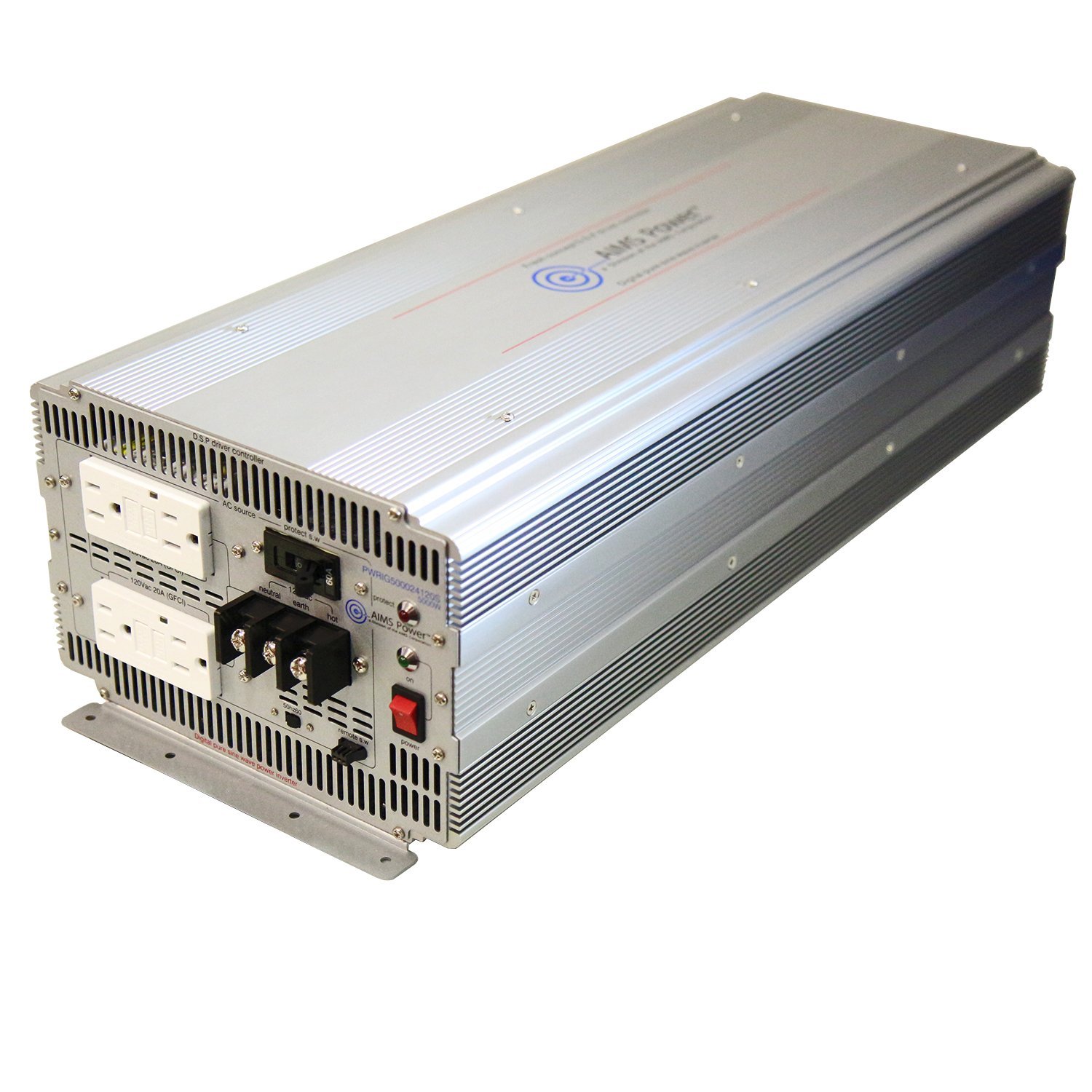

The AIMS Power PWRIG500012120S is an industrial-grade, 5000-watt pure sine wave power inverter designed to convert 12V DC battery power into clean, stable 120V AC output. Built for demanding off-grid, mobile, RV, marine, and commercial applications, it delivers the quality AC power required by sensitive electronics, variable-speed motors, compressors, and a wide range of appliances.
At its core, the PWRIG500012120S uses an advanced Digital Signal Processor (D.S.P.) driver to generate a high-quality pure sine wave with minimal total harmonic distortion. The inverter intelligently responds to fluctuating battery voltages and automatically adapts its output to maintain a steady 120V AC, even as the battery bank voltage drops — ensuring consistent, reliable performance throughout the discharge cycle.
Key Features:
- 5,000W Continuous Output — Handles sustained, heavy loads with ease
- 10,000W Surge Capacity — Provides the peak power needed to start motors, compressors, and other high-startup-load equipment
- Pure Sine Wave Output — Cleaner than grid power; safe for sensitive electronics, medical equipment, laser printers, and variable-speed motors
- D.S.P. Technology — Digital Signal Processor drive ensures efficient, stable, and reliable AC output
- 12V DC Input (10.5V–15V operating range) with 91% efficiency
- Selectable 50Hz / 60Hz Output — Supports both domestic and international applications

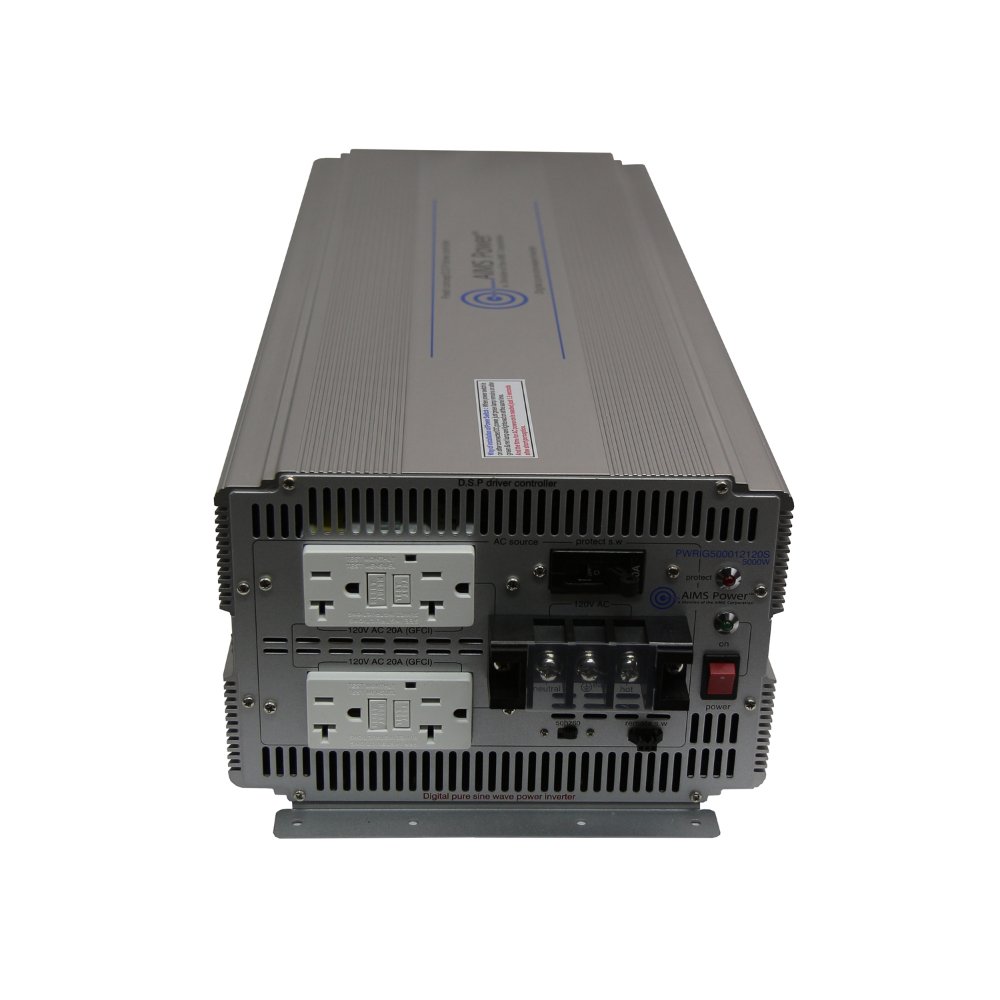

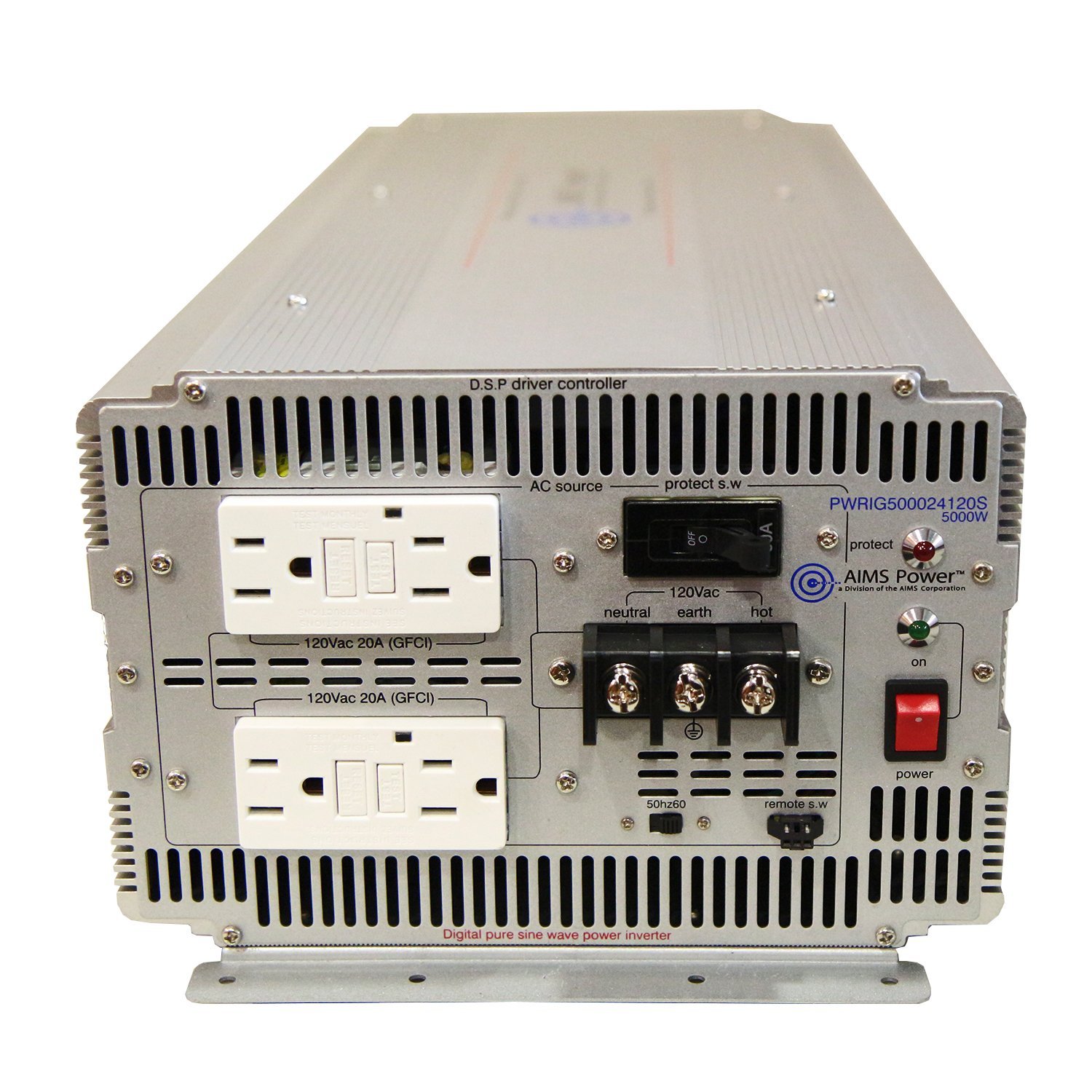

- Dual GFCI Outlets — Built-in ground fault circuit interrupter protection for safe plug-in operation
- Direct-Connect AC Terminal Block — Allows hardwired connection to an AC panel for permanent installation

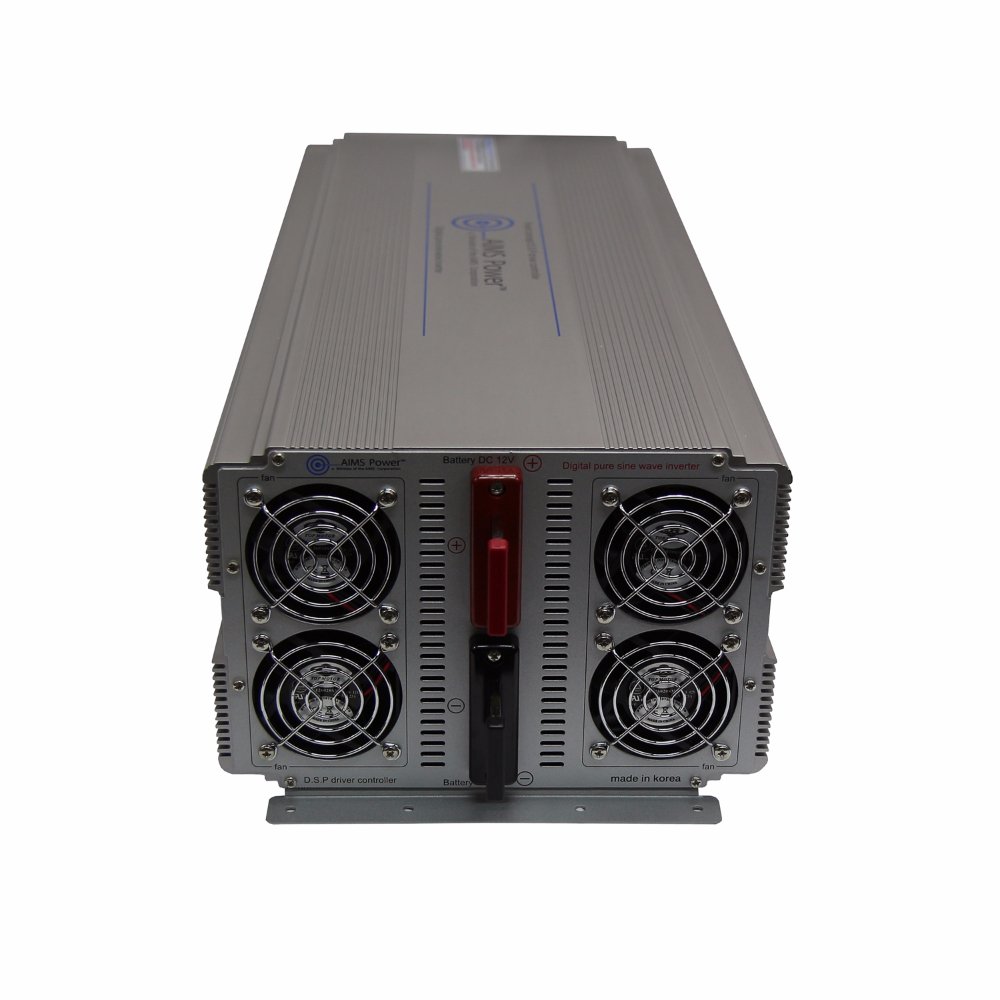

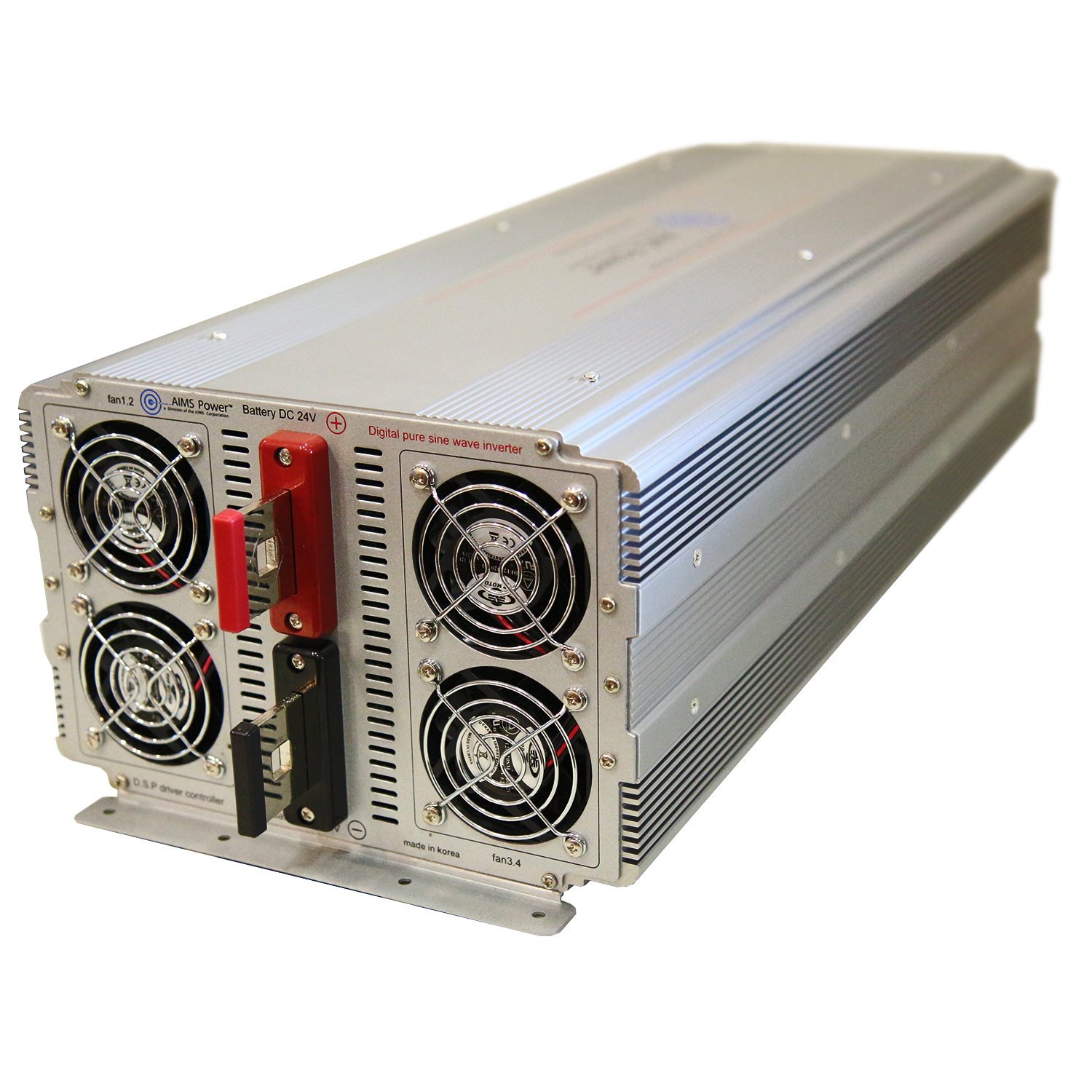

- Dual Thermally Controlled Cooling Fans — Fans activate based on temperature, reducing noise and improving longevity
- 5-Function Protection LED Indicator — Visual feedback for fault conditions
- Built-In AC Circuit Breaker — Added protection for the output circuit
- Remote On/Off Capability — Includes connector and cable for optional remote switch installation
- Isolated Ground & Neutral — Enhances electrical safety in hardwired installations
- Low/High Voltage Shutdown — Protects both inverter and battery bank
- Over-Temperature Protection — Automatic shutdown prevents damage in high-heat environments
- DC Voltmeter Included — Monitor battery voltage at a glance
- FCC Certified
Electrical Specifications:
- DC Input Voltage: 13.2V nominal (10.5V – 15V range)
- AC Output Voltage: 120V AC ±3%
- Continuous Power: 5,000 Watts
- Surge Power: 10,000 Watts
- Efficiency: 91%
- No Load Current (Fan Off): 2.6A @ 12V
- No Load Current (Fan On): 4.4A @ 12V
- Low Battery Shutdown: 10.0V | Return: 11.2V
- High Battery Shutdown: 15.9V | Return: 15.0V
- Frequency: Selectable 50Hz / 60Hz
- Over-Temperature Shutdown: 79°C
- Cooling Fan Activation: 40°C
The AIMS Power PWRIG500012120S is an ideal solution for off-grid solar power systems, work trucks, commercial vehicles, RVs, boats, and backup power installations where industrial-grade reliability and clean sine wave output are essential. Backed by a 1-year parts and labor warranty and lifetime technical support from AIMS Power.
