Transducer Shield and Saver LB-AT-8.10.12-L3 L Bracket for Atlas Hydraulic Jack Plate 8-12 Inch Port Side 3 Inch Offset

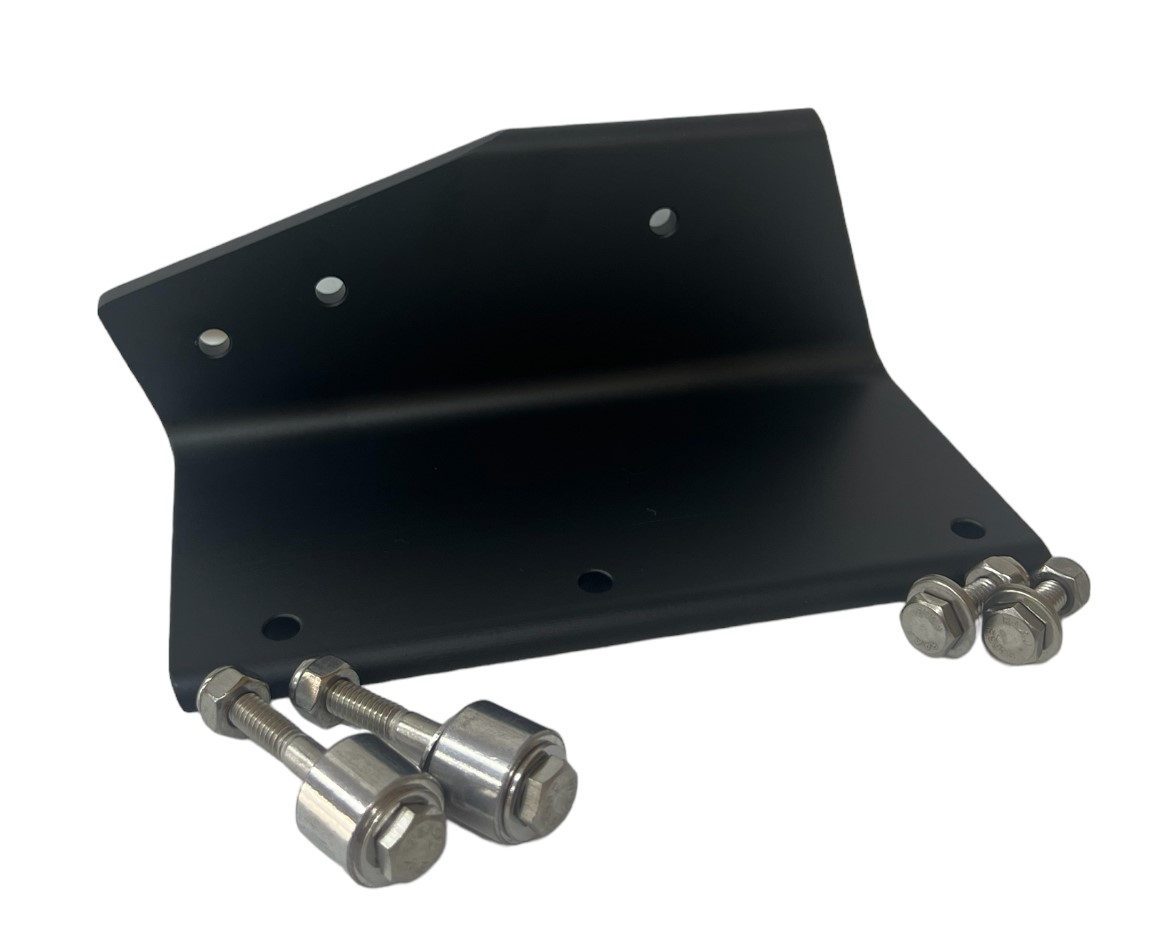

The Transducer Shield and Saver LB-AT-8.10.12-L3 is an L bracket specifically engineered to mount a compatible Transducer Shield to the port (passenger) side of an Atlas Hydraulic 8-inch, 10-inch, or 12-inch jack plate. The built-in 3-inch offset moves the Transducer Shield away from the jack plate, preventing the hydraulic trim rod from interfering with or damaging the transducer or Transducer Shield during up and down movement.

This bracket replaces the previous L Bracket-Combo with 2.5-inch spacer design, incorporating the offset directly into a single, clean unit for easier installation.

Key Features:

• Designed for Atlas Hydraulic 8", 10", and 12" jack plates — port/passenger side mounting
• 3-inch built-in offset provides clearance between the Transducer Shield and the hydraulic trim rod
• Constructed from high-quality aluminum alloy with a durable black powder coat finish
• Includes stainless steel hardware for corrosion-resistant marine installation
• Made in the USA and backed by a limited 1-year warranty

Important Notes:

• A compatible Transducer Shield® must be ordered separately — a transducer cannot be attached to this bracket without one
• Skeeter ZX or FX model boats may require an optional extension between the L Bracket and Transducer Shield due to hull turning chines interfering with side-viewing signal
• "Side Image" transducers mounted on the side of a jack plate typically will not track the bottom when the boat is up on plane; an in-hull transducer is recommended if bottom tracking at speed is required

The LB-AT-8.10.12-L3 is the port-side counterpart to the LB-AT-8.10.12-R3 (starboard side) and delivers a purpose-built, durable transducer mounting solution for bass anglers and serious freshwater fishermen running Atlas Hydraulic jack plates.
