Nauticus GA5002-20T Smart Tabs ST Series Gas Actuator with Boot 20 lb Pair

The Nauticus GA5002-20T is a pair of original equipment replacement gas actuators designed for the Smart Tabs ST (Stainless) Series trim tab system. Rated at 20 lbs. of force, these nitrogen gas pneumatic actuators automatically react to water pressure, boat speed, and payload — delivering hands-free trim adjustment with no switches or wiring required.

The actuator casing is made of black nitrate-treated metal with a rubberized coating, providing a life expectancy that exceeds standard stainless steel by up to 28%. Each actuator is sealed in an air-tight, chemical- and ultraviolet-resistant EPDM rubber boot to protect against the harsh marine environment. A color-coded zip tie identification system makes it easy to identify the correct actuator for your application.

Key Features:

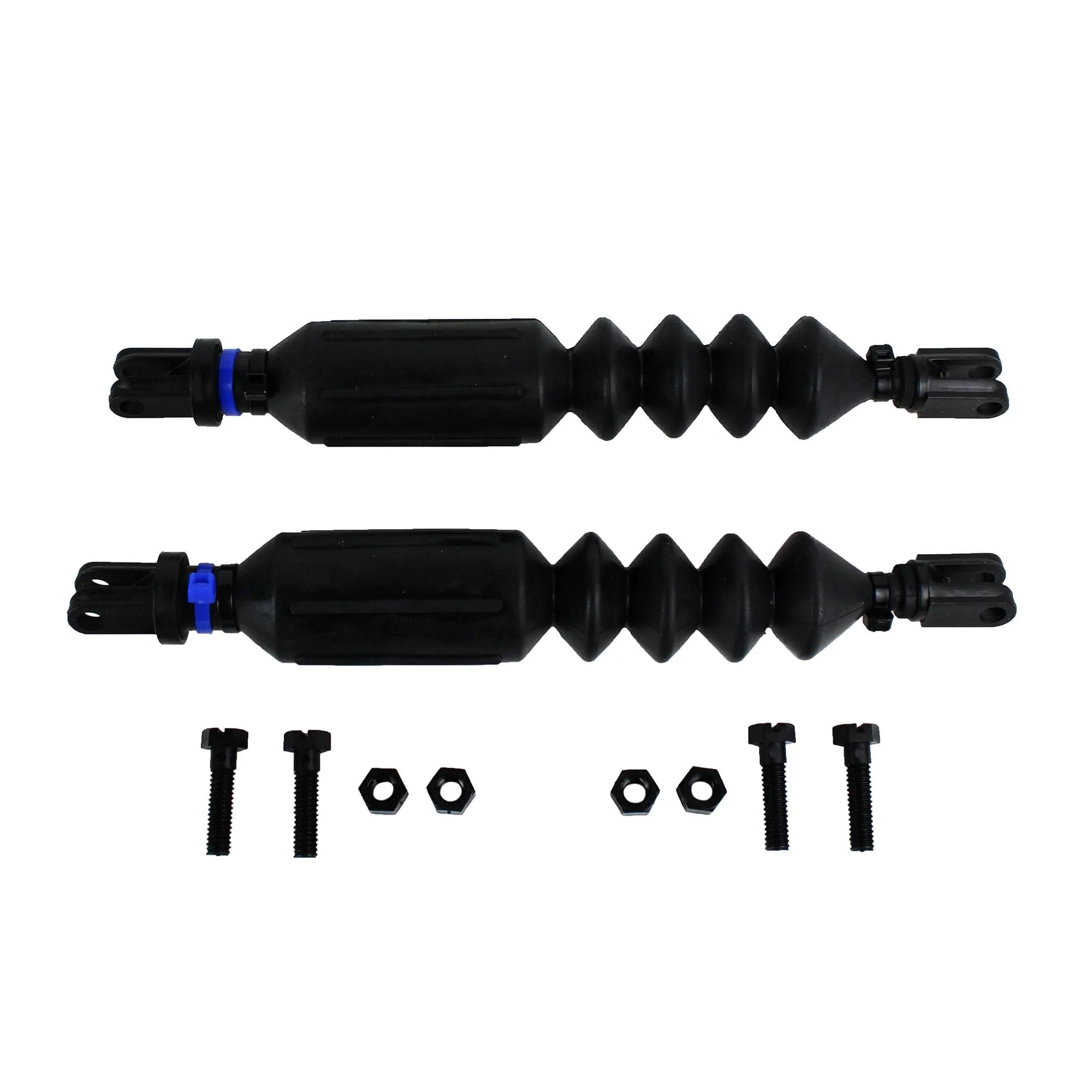

• Sold as a pair — includes two actuators and boots
• 20 lb. force rating for ST (Stainless Steel) Smart Tabs series
• Nitrogen gas pneumatic operation — automatically adjusts to speed, load, and water pressure
• Black nitrate casing with rubberized coating for superior corrosion resistance
• Air-tight EPDM rubber boot — chemical- and UV-resistant for extended service life
• Color-coded zip tie identification system
• System-specific ST series end fittings for stainless steel trim plates
• Actuators and end fittings are removable, replaceable, and interchangeable
• Includes all mounting hardware for SX Series or ST (Stainless) Series trim tabs
• Packaged in full color clamshell packaging

Replacing actuators is straightforward — simply unscrew the old actuator from the transom hinge and trim plate, then insert the new one. The GA5002-20T is a direct OEM-spec replacement, ensuring a perfect fit for your existing Nauticus Smart Tabs installation.
