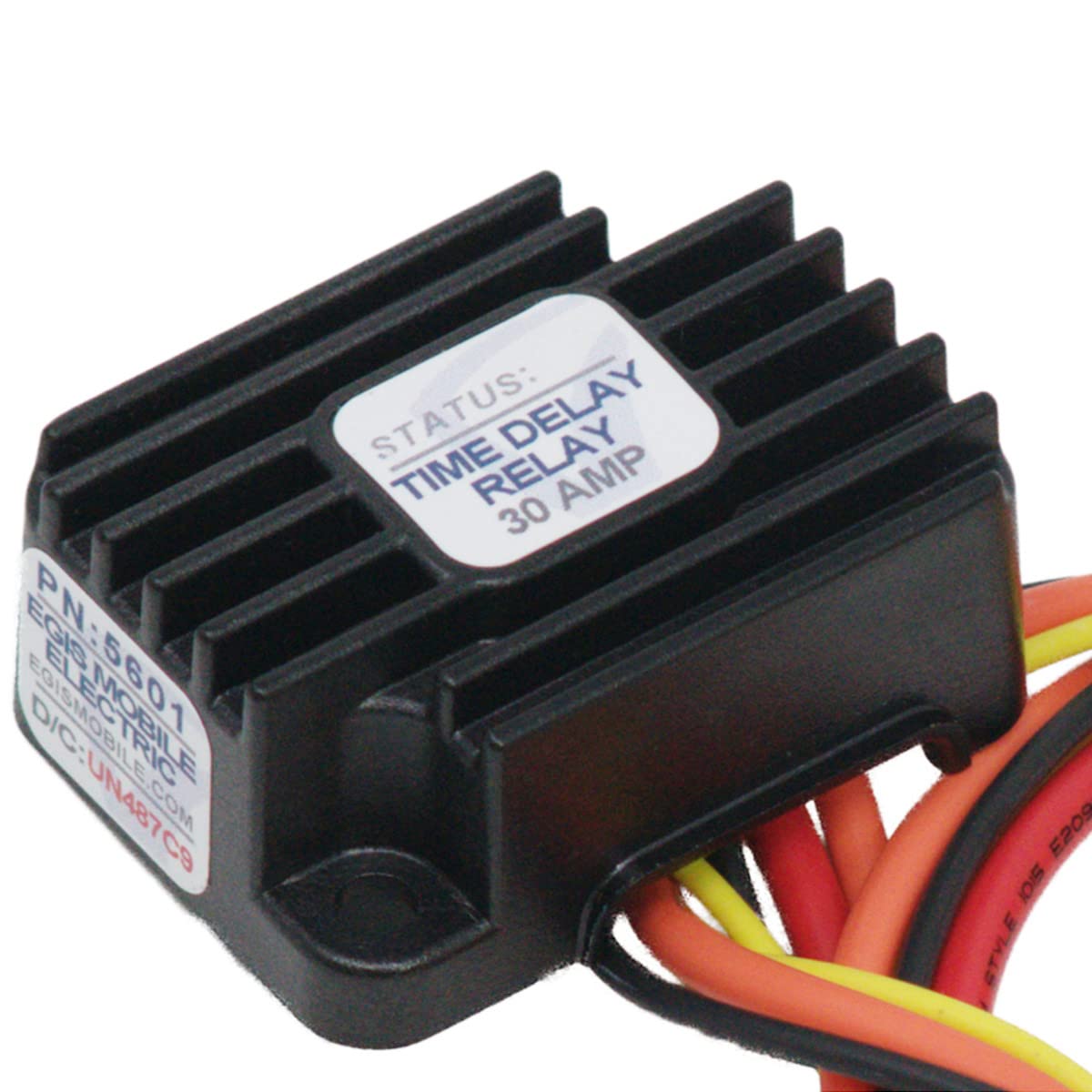

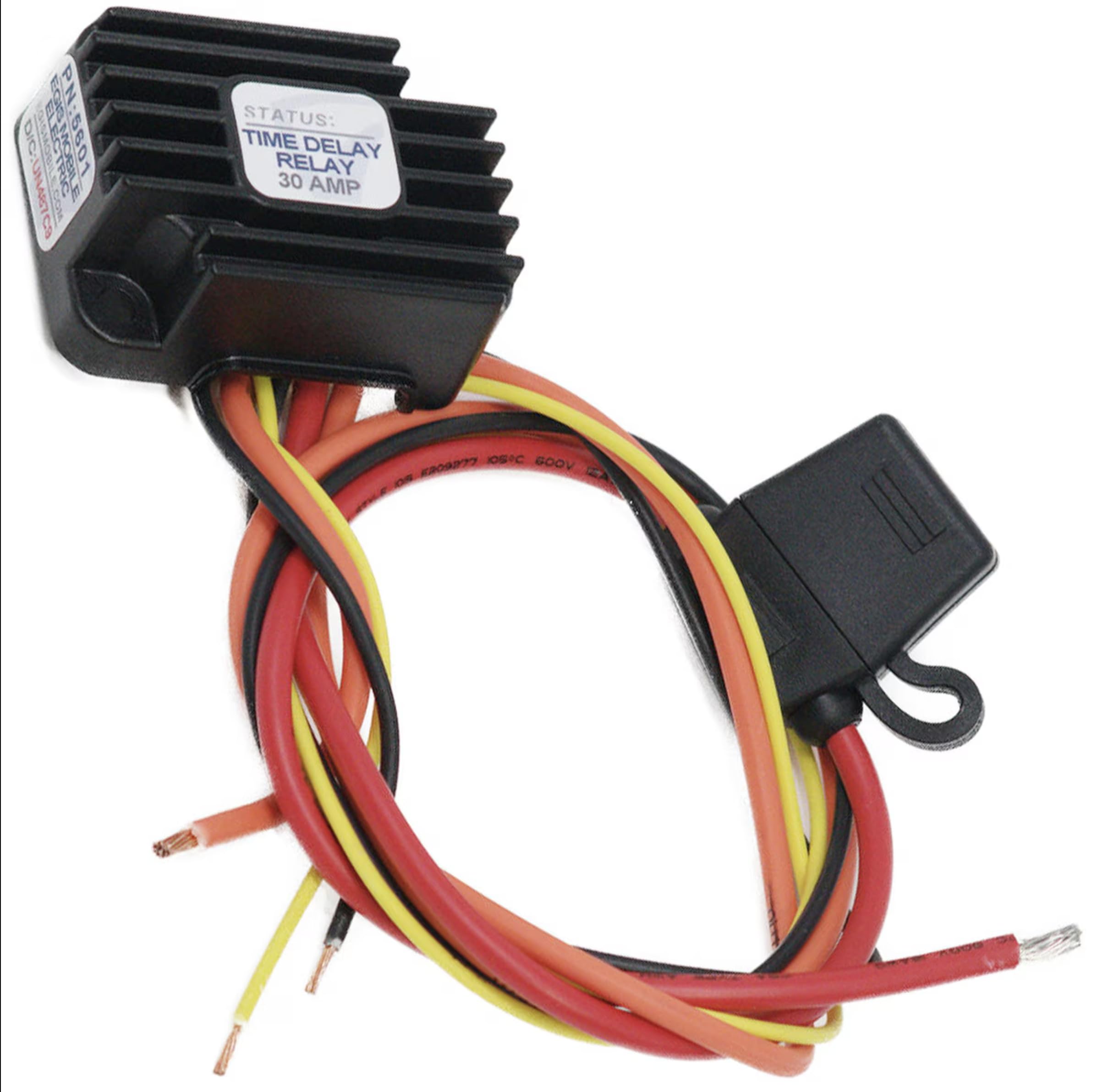

Egis Mobile Electric 5601 PT2 Time Delay Relay 30A 12V

The Egis Mobile Electric PT2 Time Delay Relay (5601) is a compact, sealed 30-amp, 12-volt relay engineered to protect vehicle batteries from parasitic drain caused by add-on electrical equipment. Ideal for fleet vehicles, emergency responders, and work trucks, this time delay relay automatically manages power shutoff to auxiliary loads after the engine is turned off or at the end of a shift — eliminating dead battery calls and reducing maintenance costs.

Key Features:

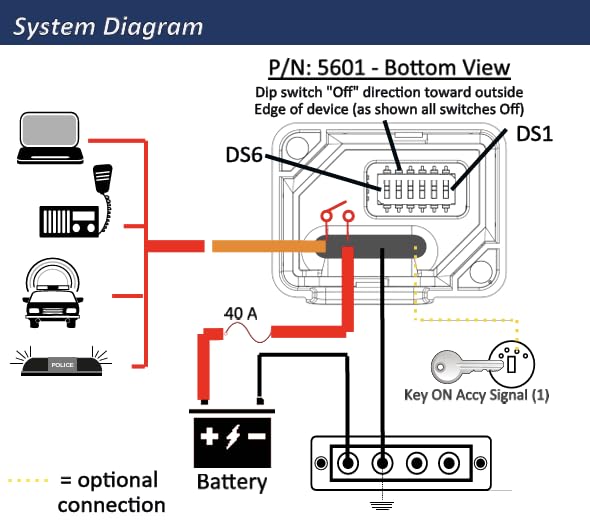

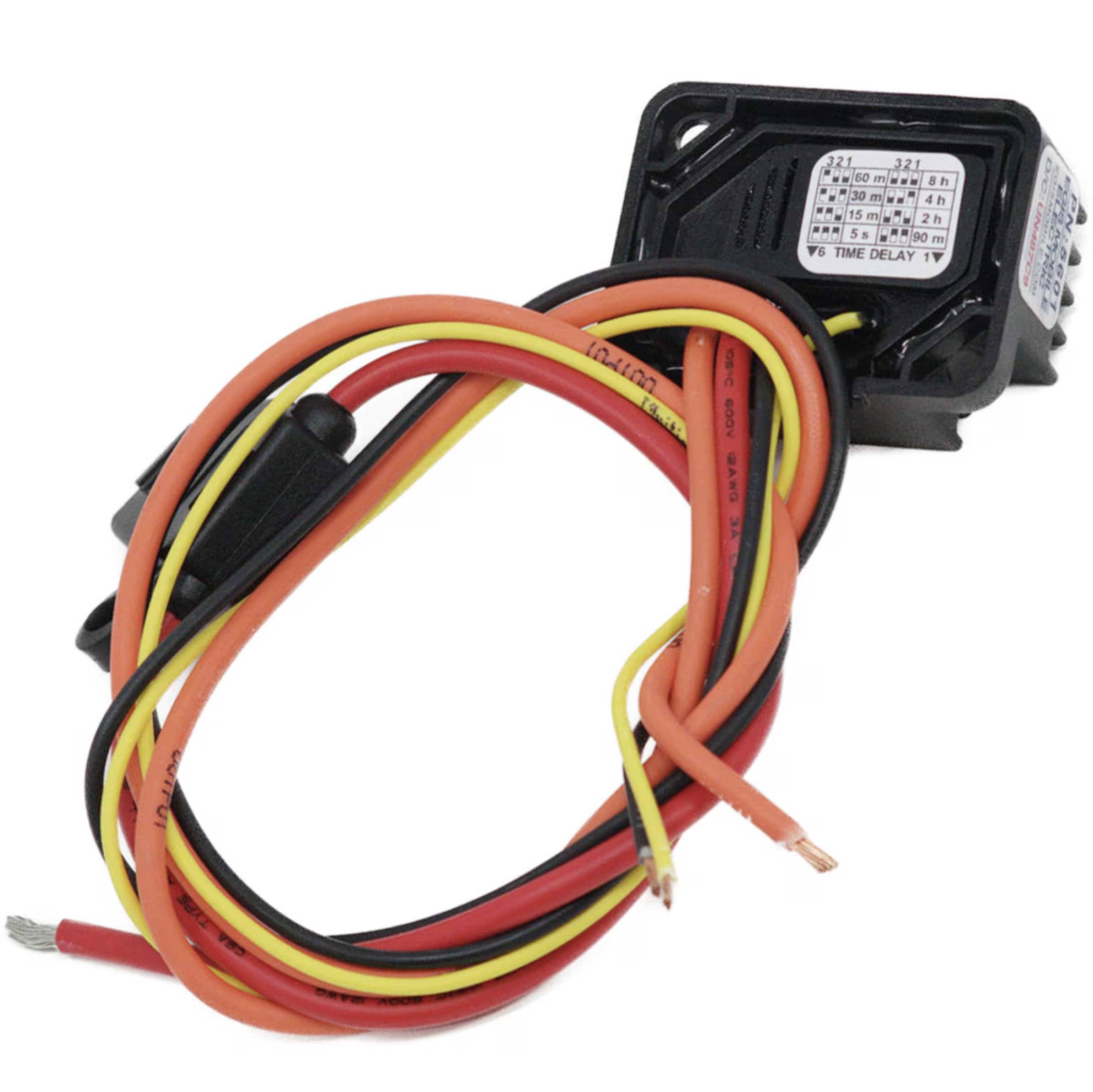

• Adjustable OFF Time Delay: User-configurable from 15 minutes to 8 hours via easy-to-set DIP switches
• 5-Second Test Mode: Quickly verifies correct installation without waiting for the full delay cycle
• Ultra-Low Off-State Current Draw: Only 1.3 mA standby draw — virtually no impact on battery charge
• Under-Voltage & Over-Voltage Shutdown: Protects sensitive on-board electronics from damaging voltage conditions
• Diagnostic LED Feedback: On-board multi-color LEDs indicate output status and pending OFF events (time, temperature, or voltage triggered)
• Bullet-Proof Construction: Sealed against dust and moisture penetration; high-temperature-rated materials allow mounting in virtually any location on the vehicle
• Integrated Thermal Overload Protection: Guards against heat-related failures for long-term reliability
• 30A / 12V Rating: Suitable for a wide range of auxiliary electrical loads

Specifications:

• Voltage: 12V DC
• Current Rating: 30 Amps
• Delay Range: 15 minutes to 8 hours
• Off-State Current Draw: 1.3 mA
• Contact Form: SPST-NO (1 Form A)

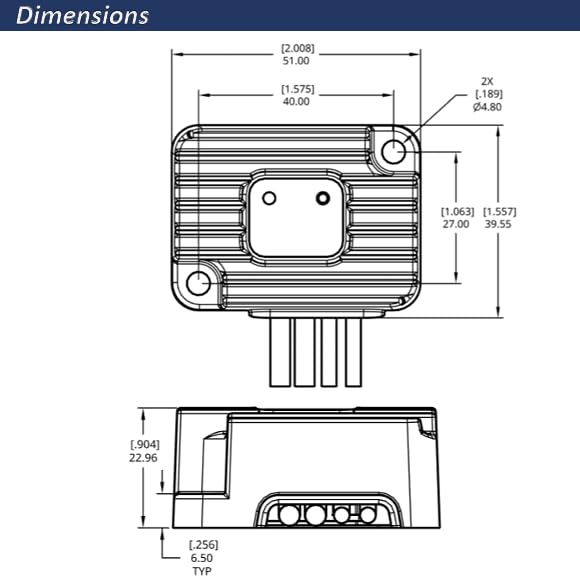

• Box Dimensions: 2" H x 5" W x 6" L
• Weight: 0.3 lbs
• UPC: 850035199916

The Egis Mobile Electric PT2 is the dependable choice for fleets and vehicle operators who need a set-and-forget solution for auxiliary load management. Its sealed, high-temperature construction makes it suitable for harsh environments, while its simple DIP switch configuration means minimal setup time and no need for specialized tools.
