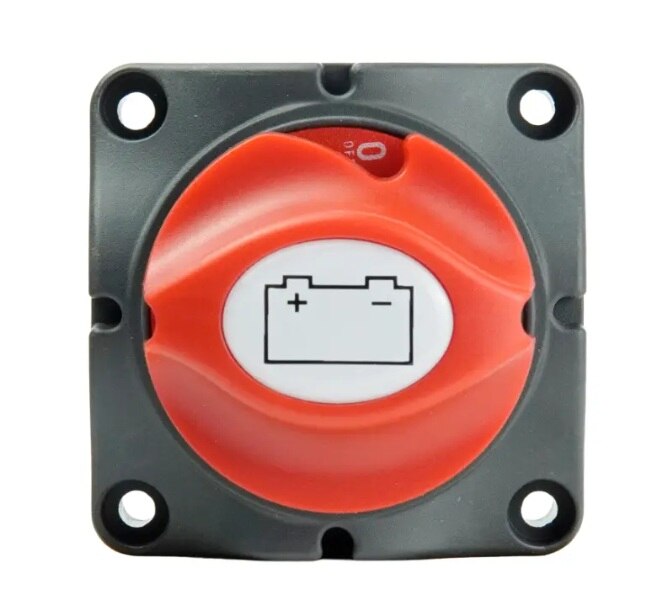

Egis Mobile Electric 2701 Mini On/Off Battery Switch 275A 48V

The Egis Mobile Electric 2701 is a compact, high-performance on/off battery switch rated at 275 amps continuous (455A for 5 minutes, 1250A for 10 seconds) with a maximum voltage of 48V DC. Designed for marine, RV, and powersports electrical systems, the Model 701 delivers reliable main circuit disconnect capability in a space-saving form factor.

Built for demanding environments, the 2701 features stainless-steel hardware, serrated flange nuts, and high-temperature materials throughout. Dual mounting options — surface mount and panel mount — provide installation flexibility to suit a wide range of applications. Break-away side panels allow wire routing in any direction while maintaining maximum conductor coverage.

Key Features:

• 275A continuous rating (455A/5 min, 1250A/10 sec)
• 48V DC maximum voltage
• Sealed design protects against dust and water intrusion
• Ignition protected — safe for installation in compartments with potentially explosive gases
• Surface and panel mounting options for flexible installation
• Easy break-away side panels for multi-directional wire routing
• Stainless-steel hardware with serrated flange nuts and high-temperature materials
• M10-1.5 stud size with 3/8" (M10) ring terminal acceptance
• Panel mounting hole size: 52mm (2.05")
• Recommended cable size: 1/0 AWG

The Egis 2701 Mini Battery Switch is an ignition-protected, harsh-environment solution ideal for boats, RVs, and off-road vehicles where a reliable main battery disconnect is essential.
